Ricoh Aficio SP C440DN

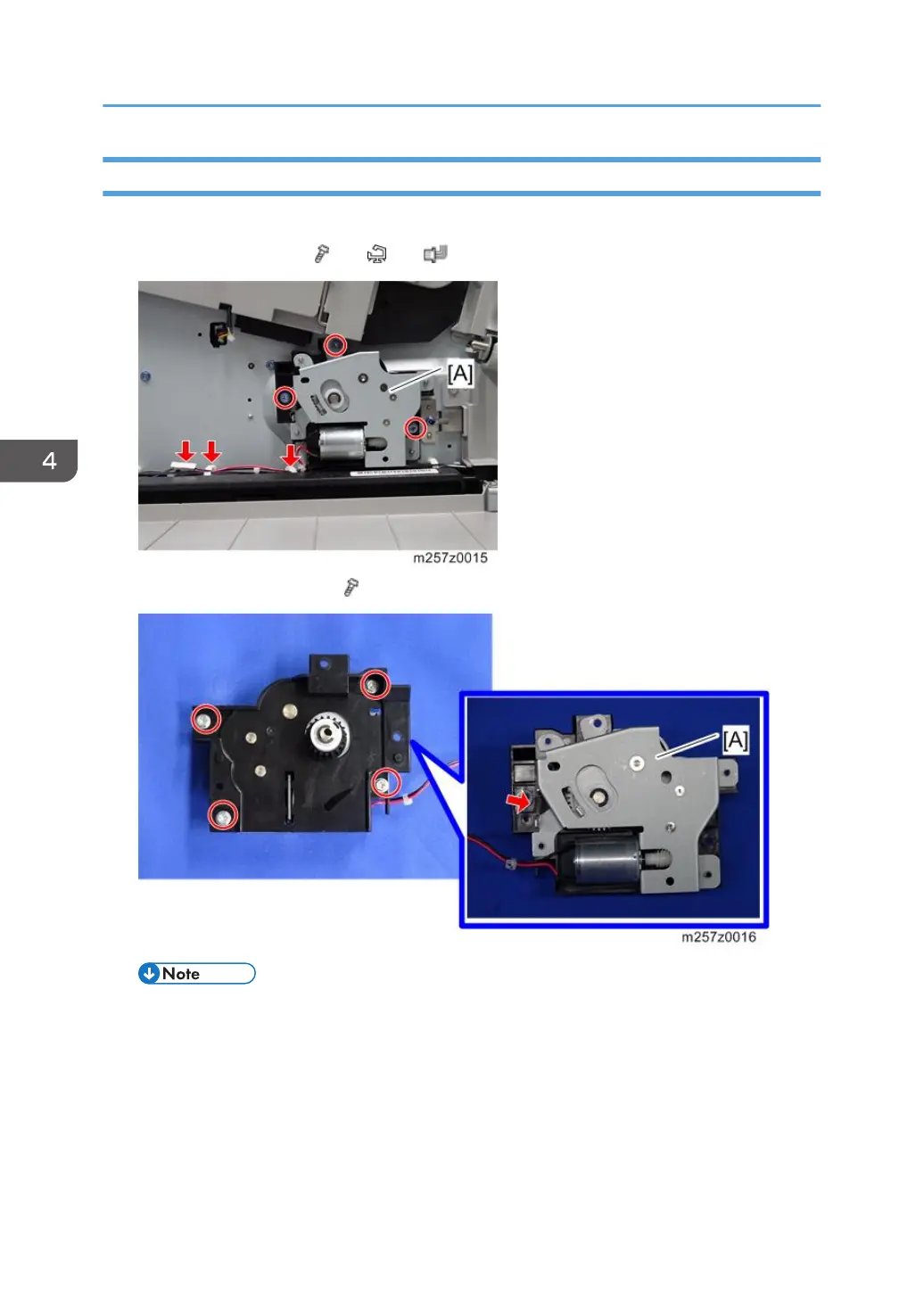

Tray Lift Motor
1. Inner left lower cover (page 96)
2. Tray lift motor unit [A] ( x 3, x 2, x 1)
3. Tray lift motor bracket [A] ( x 4, spring x 1)
• When reassembling, make sure that the gears [A] are set correctly before installing the tray lift
motor bracket.
