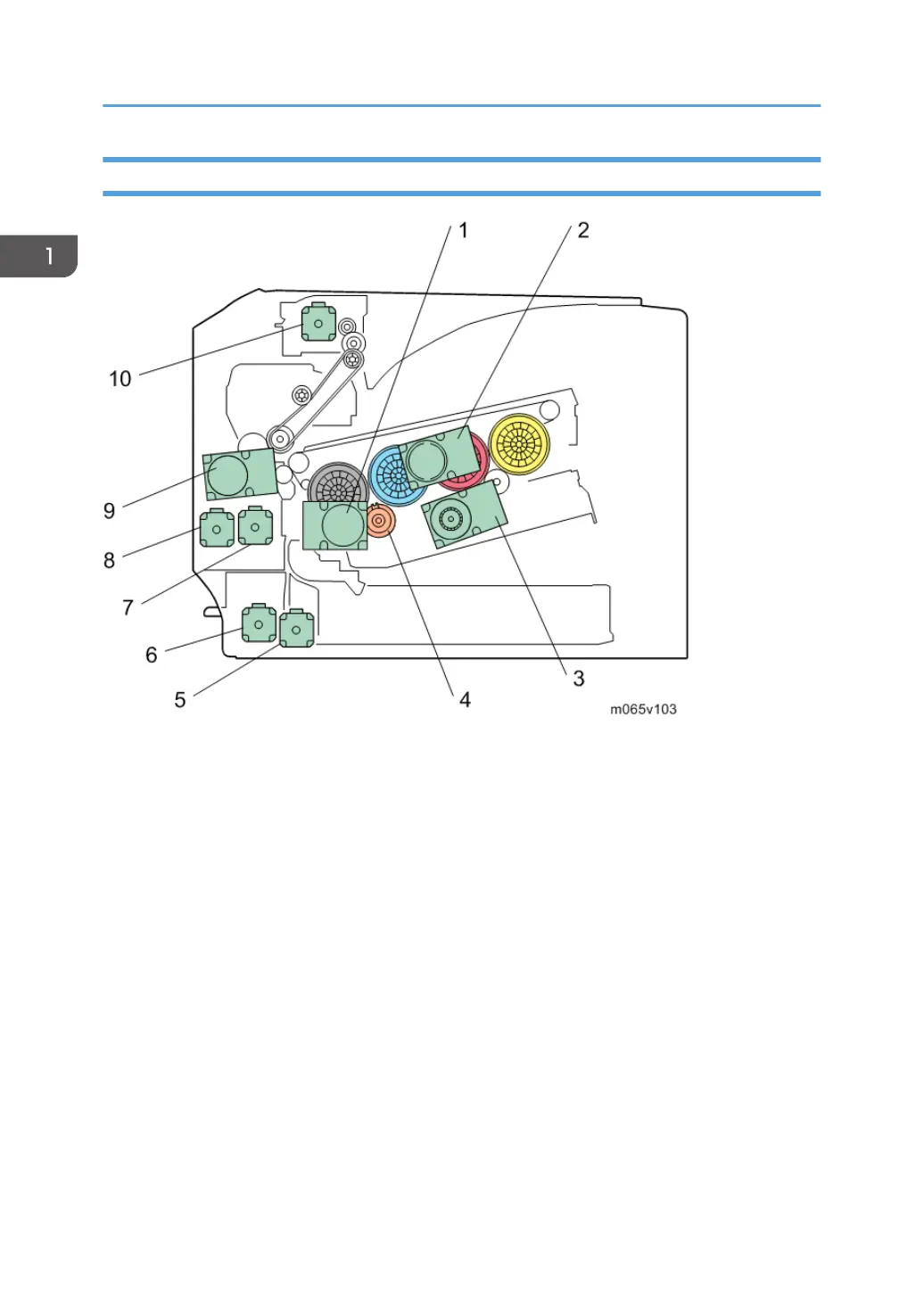

Drive Layout
1. ITB Unit/ Drum-K/ Development-K Motor:
This controls the OPC for black, development unit for black, and ITB unit.
2. Drum Motor: CMY:
This controls the OPCs for cyan, magenta, and yellow.
3. Development Motor: CMY:
This controls the color development units (cyan/ magenta/ yellow).
4. Development Clutch: K:
This controls the drive power to the development unit for black.
5. Paper Feed Motor:
This controls the paper feed mechanisms (tray 1).
6. Vertical Transport Motor:
This controls the vertical transport roller.
7. Registration Motor:
This controls the registration rollers.
8. Duplex/By-pass Motor:
