When Reinstalling the Pressure Roller
When replacing the pressure roller, you have to apply lubricant to the following places.

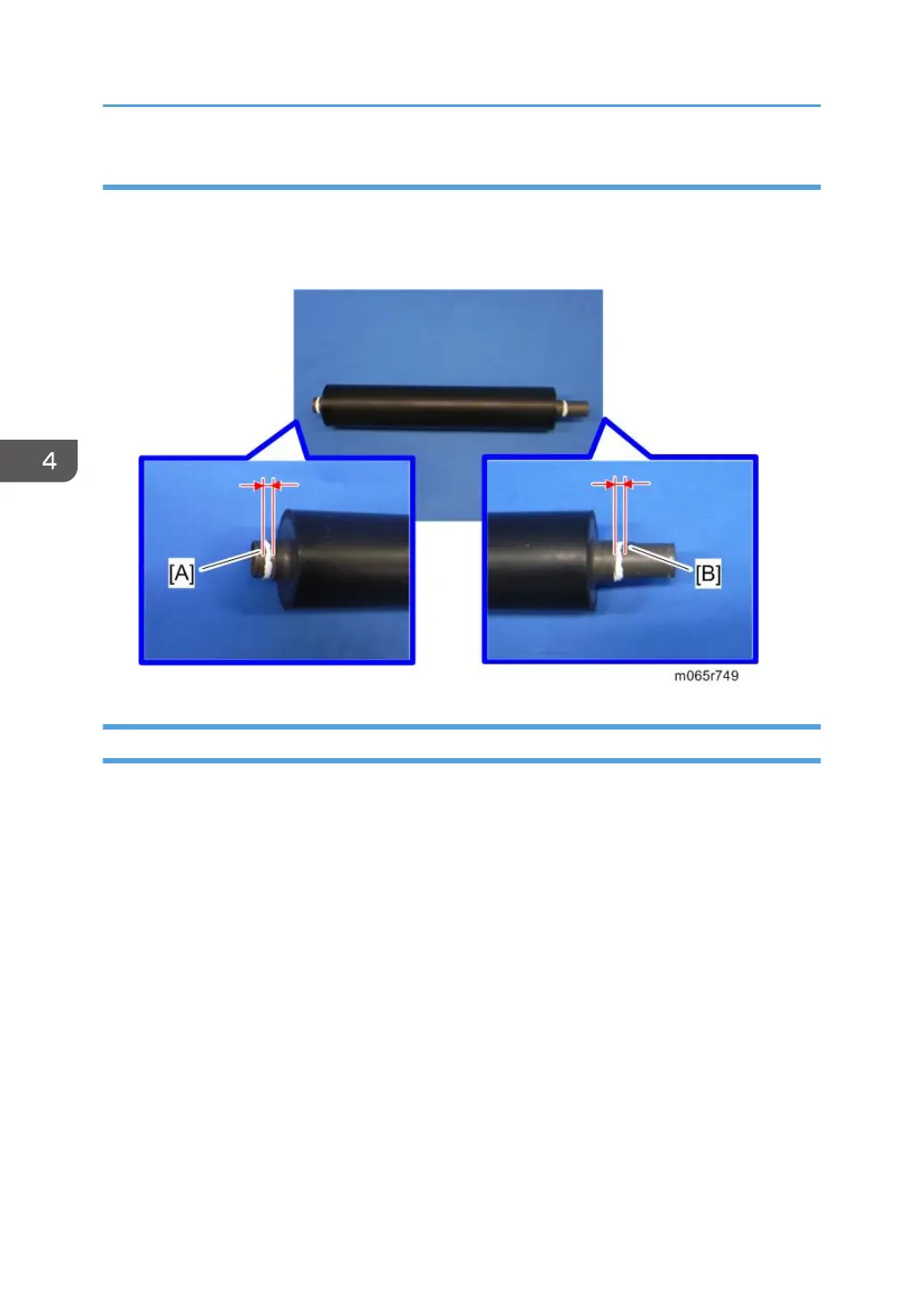

• Apply "Barrierta S552R" (0.15g to 0.25g) to the left end [A] and right end [B] of the pressure
roller as shown above.
Heating Roller Fusing Lamp
1. Fusing unit (page 164)
2. Fusing lower cover (page 165 "Pressure Roller Fusing Lamp")
3. Cleaning unit (page 164), Fusing upper cover (page 165 "Pressure Roller Fusing Lamp")
4. Replacement and Adjustment
