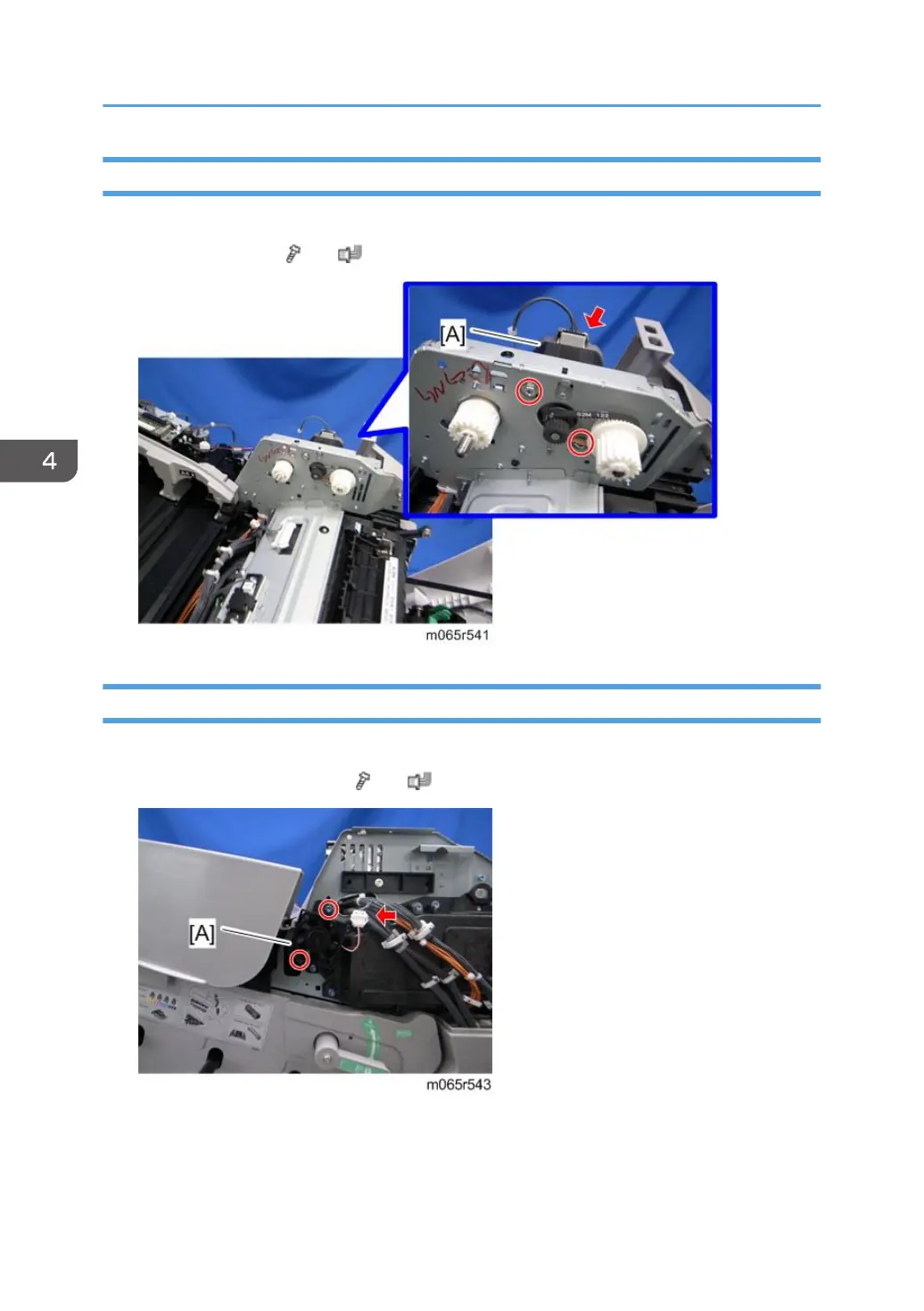

Inverter Motor
1.
Paper exit unit (
page 198
)
2.
Inverter motor [A] (
x 2,
x 1, timing belt x 1)
Fusing Cooling Fan
1.
Inner left upper cover (
page 94
)
2.
Fusing cooling fan base [A] (
x 2,
x 1)
4. Replacement and Adjustment
206
