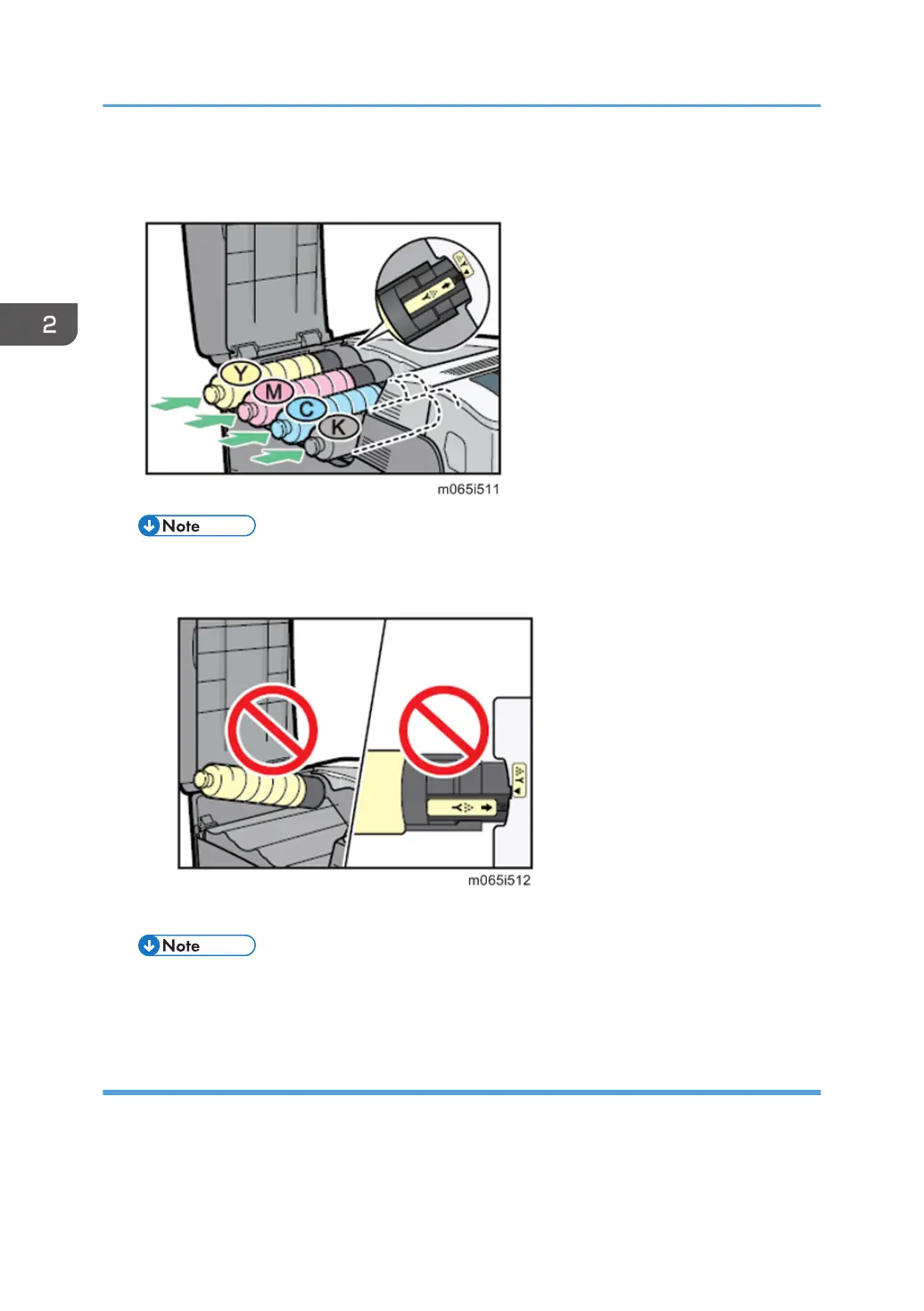

3. Install the yellow toner bottle first. Holding the toner bottle horizontally with the label
facing up, align the label with the position of the triangular mark.
• Be sure to set the toner bottles so that they are straight and flat.
• Carefully align the label on each toner bottle with the triangular mark on the receiving side.
4. Push in the toner bottle until you hear a clicking sound.
• Do not repeatedly insert and remove toner bottles. This causes toner leakage.
5. Close the upper cover.
Loading Paper
1. Pull out the paper tray until it stops.
2. Installation
38
