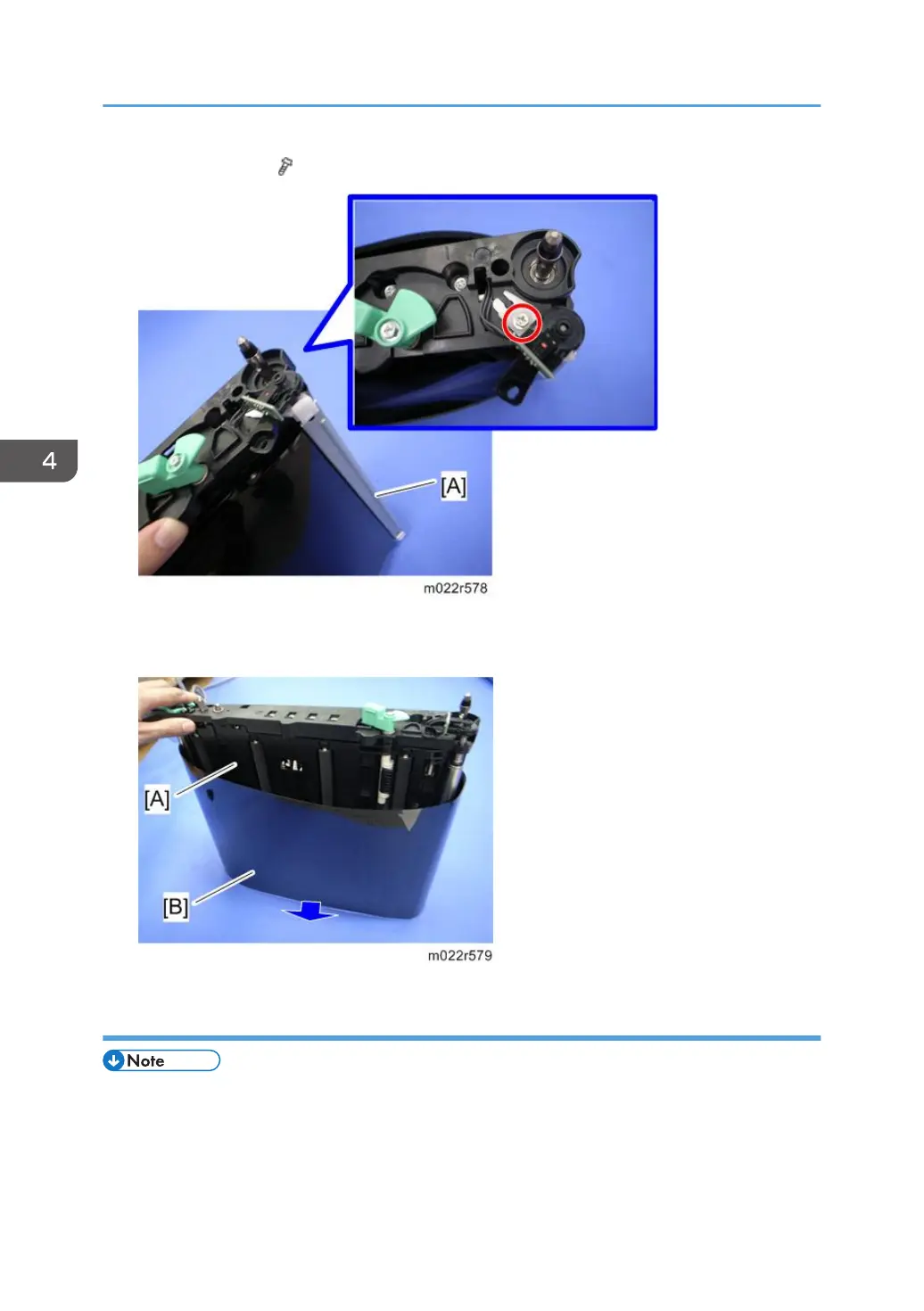

11. The right stay [A] ( x 1)
12. Stand the ITB unit [A] as shown above.
13. Image transfer belt [B]
When Installing the Image Transfer Belt
• The image transfer belt does not have any directional characteristics. When installing the image
transfer belt, it is not required to install the image transfer belt in a specific orientation.
