Ricoh Aficio SP C440DN

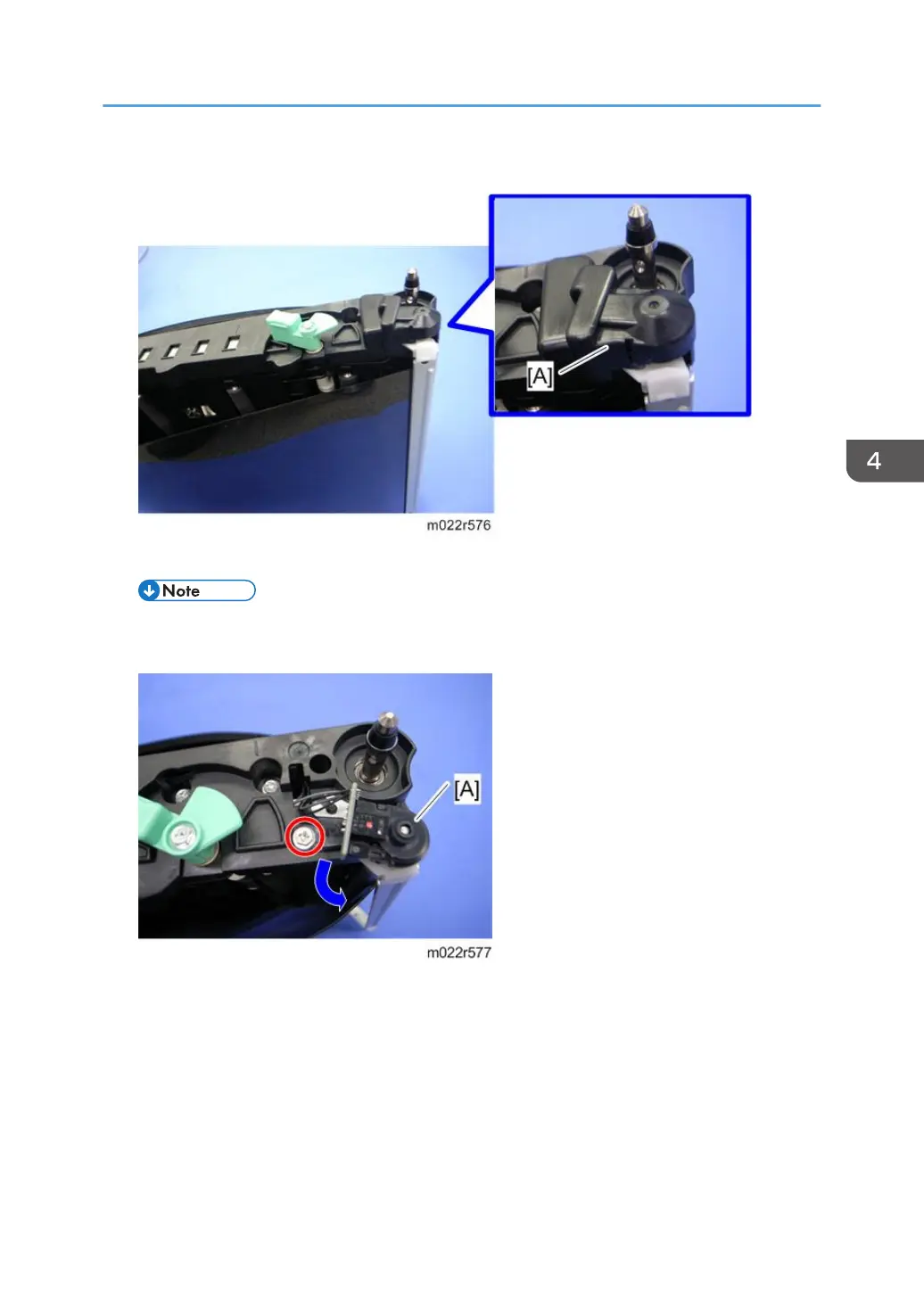

9. Front holder bracket [A]
10. Remove a screw, and then turn the encoder sensor [A] to the left.
• When replacing the image transfer belt, work carefully to avoid damaging the encoder
sensor [A].
Image Transfer
131
