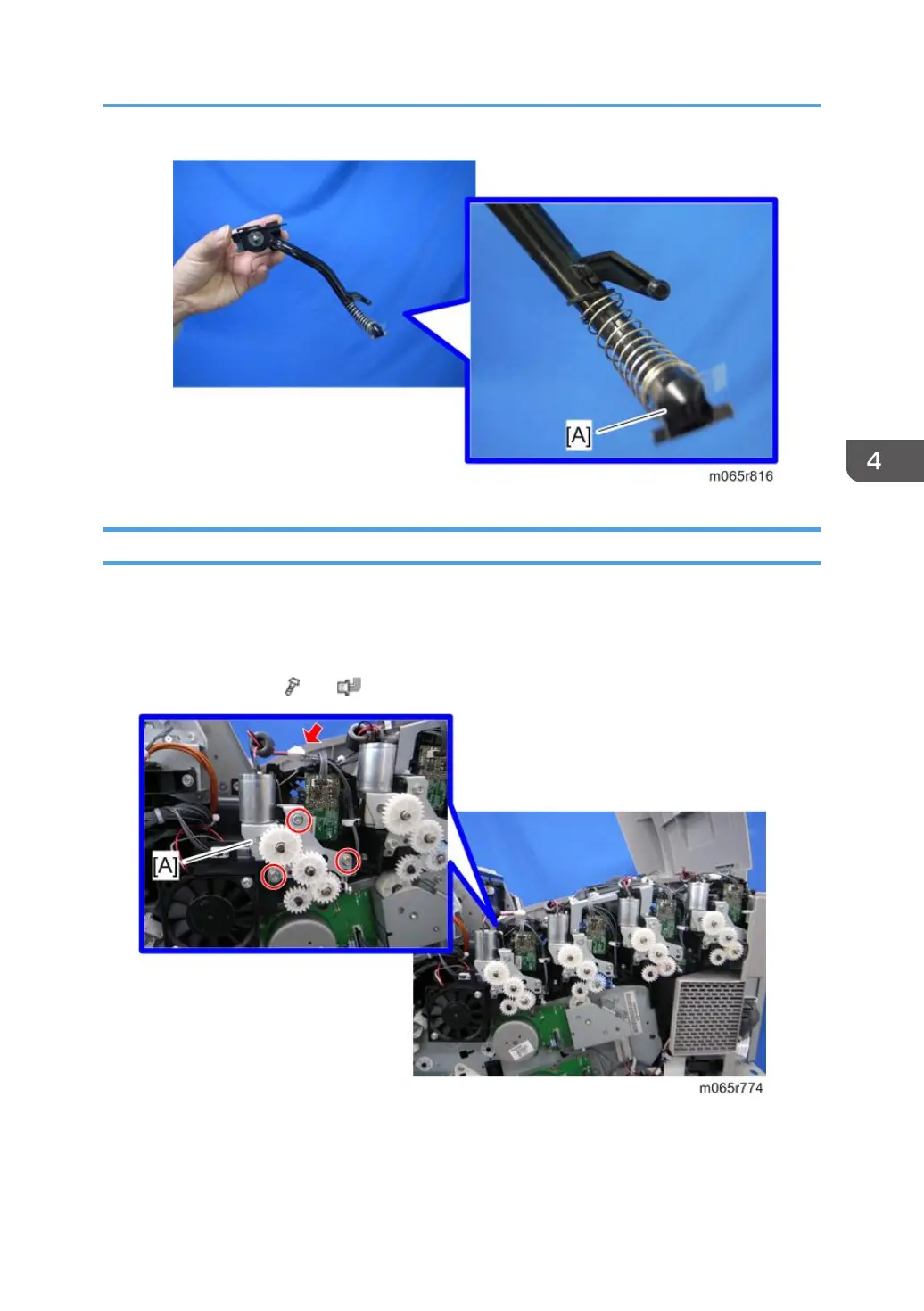

Toner Supply Motor

1. Right cover (page 90)

2. Rear cover (page 91)

3. Top cover (page 92)

4. Motor bracket [A] ( x 3, x 1)

Image Creation

117
