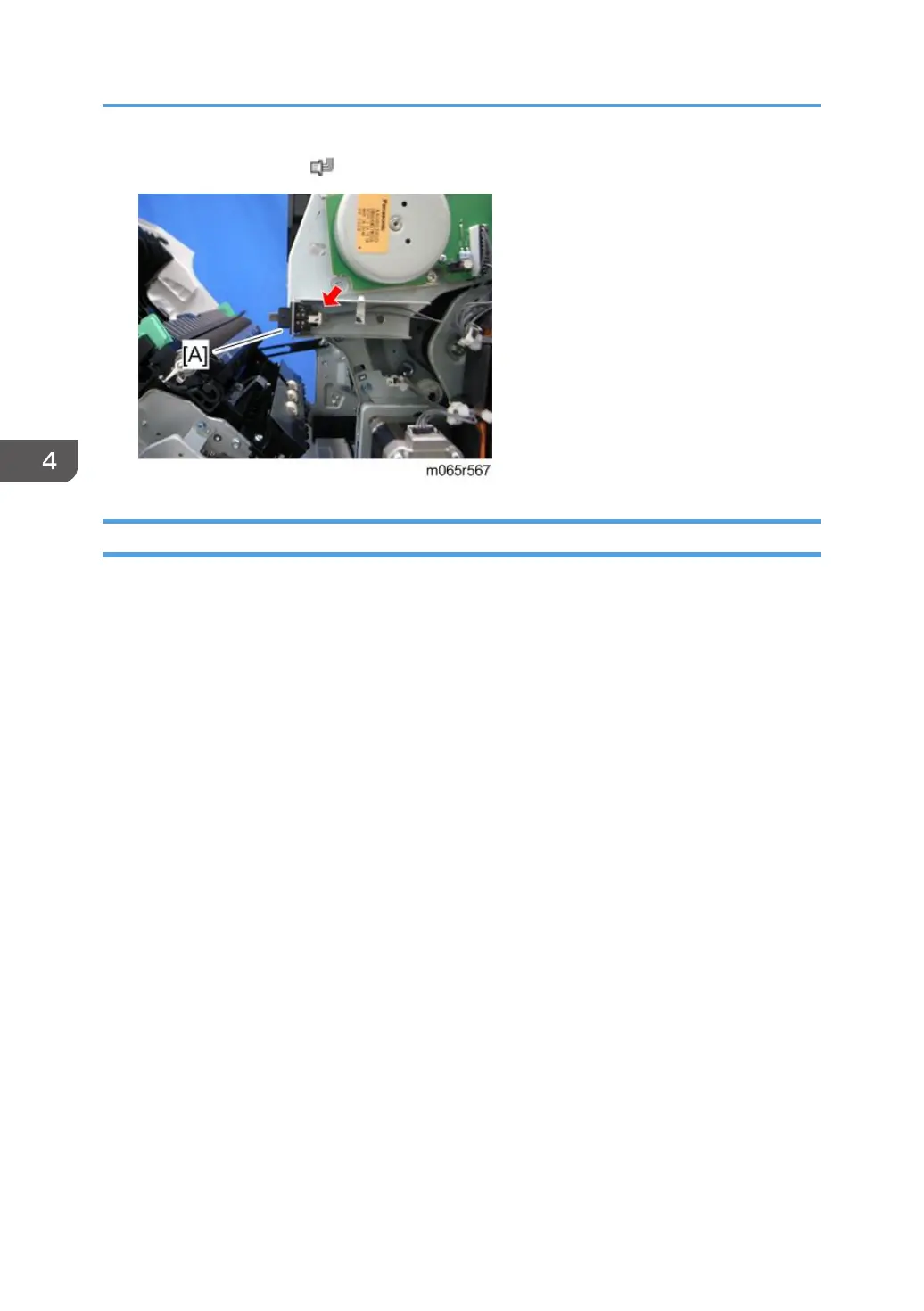

4. Front door sensor [A] ( x 1, hooks)

Motors with Bracket

1. Right cover (page 90)

2. Top cover (page 92)

3. Inner right front cover (page 97)

4. Replacement and Adjustment

156
