Ricoh Aficio SP C440DN

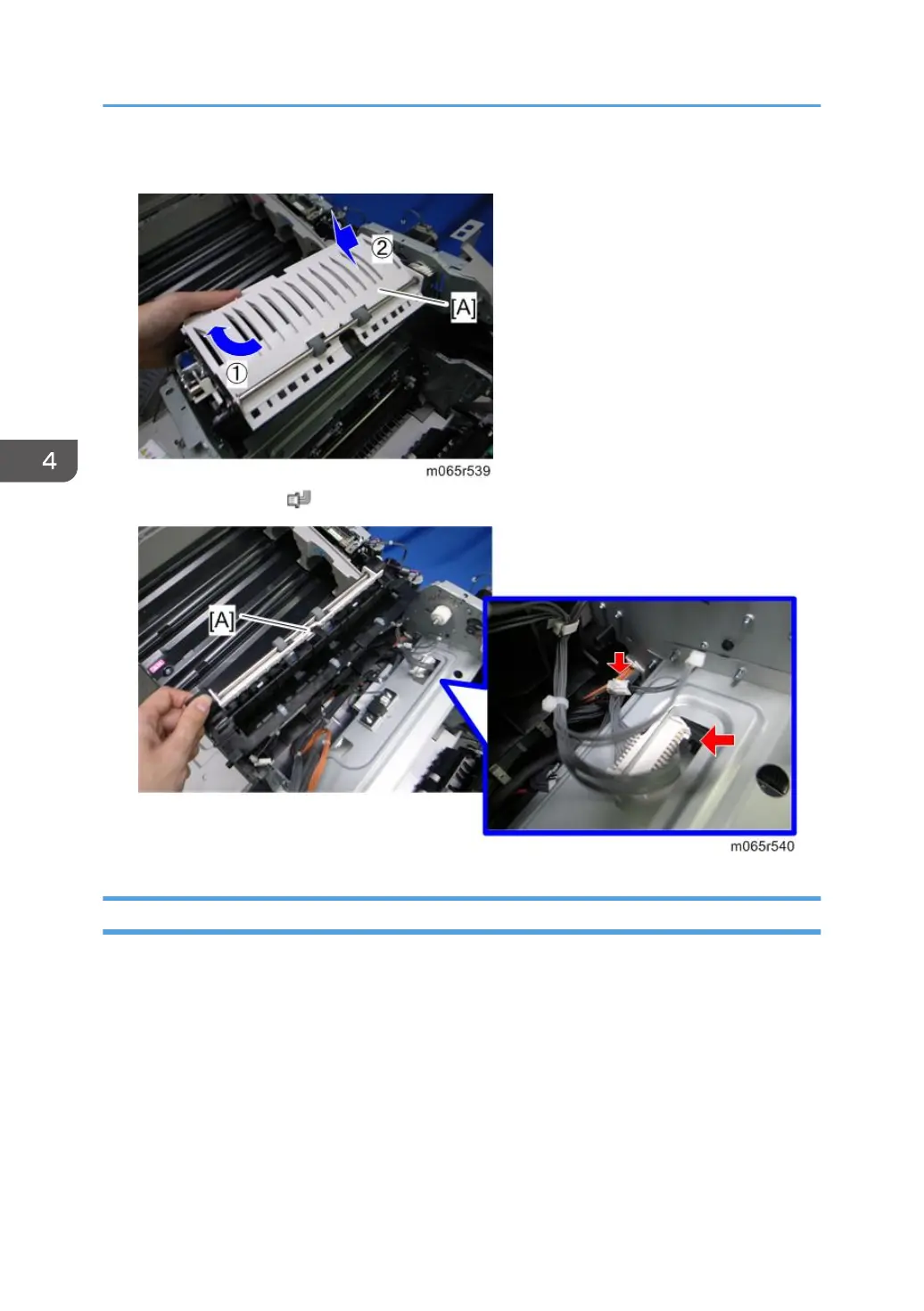

7. Lift the paper exit unit [A].
8. Paper exit unit [A] ( x 2)
Paper Exit Sensor
1. Paper exit unit (page 198)
2. Remove the gear [A] (release the hook shown by the red arrow), and then remove the
bushing [B].
4. Replacement and Adjustment
200
