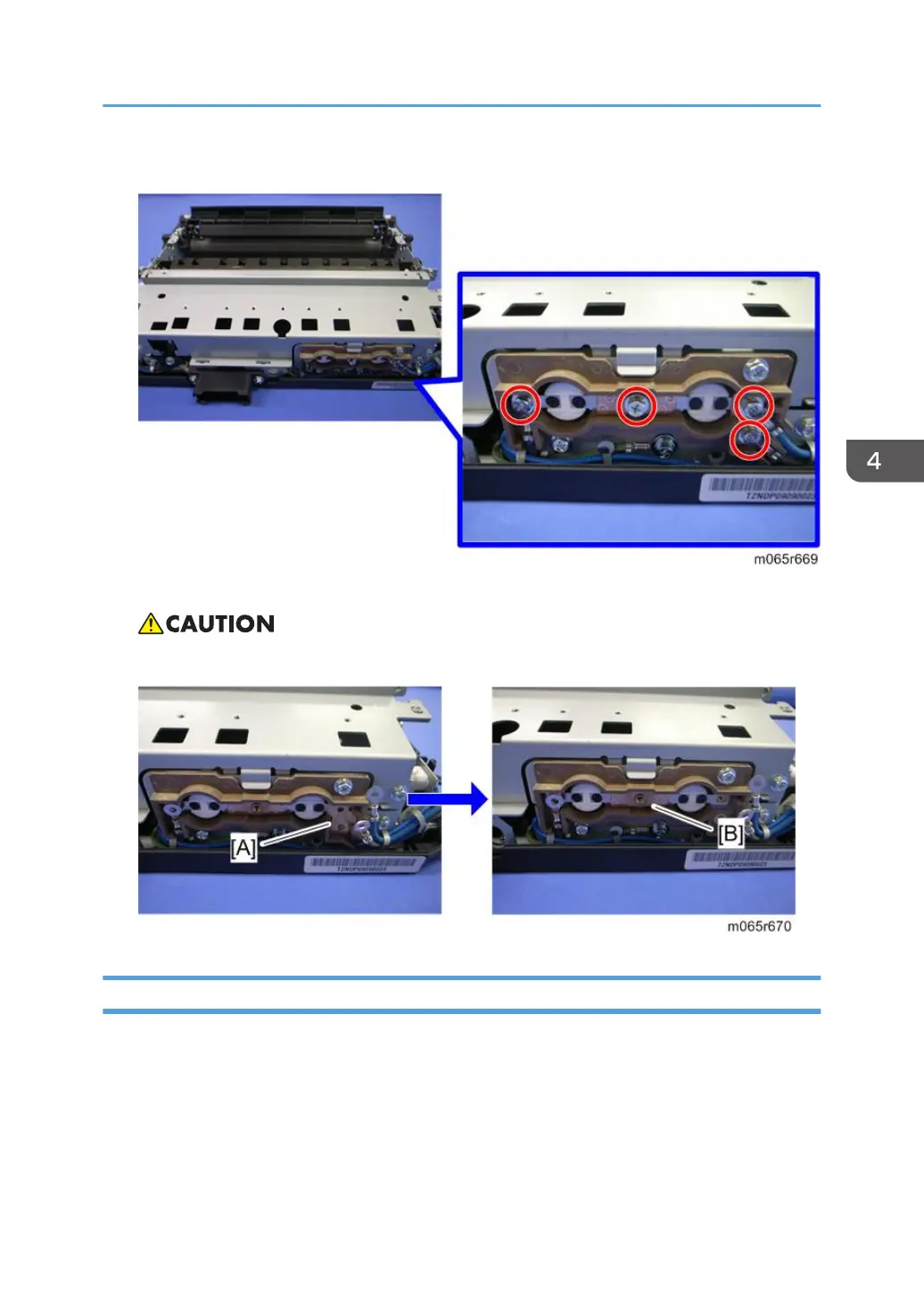

3. Remove the four screws.
4. Remove the plate [A], and then remove the heating roller thermostats [B].
• Do not re-use a thermostat that is already opened. Safety is not guaranteed if you do this.
Heating Roller Thermistor
1. Fusing front cover (page 164 "Cleaning Unit")
2. Fusing upper cover (page 165 "Pressure Roller Fusing Lamp")
3. Fusing lower cover (page 165 "Pressure Roller Fusing Lamp")
Fusing
179
