Duplex Unit
Duplex Unit

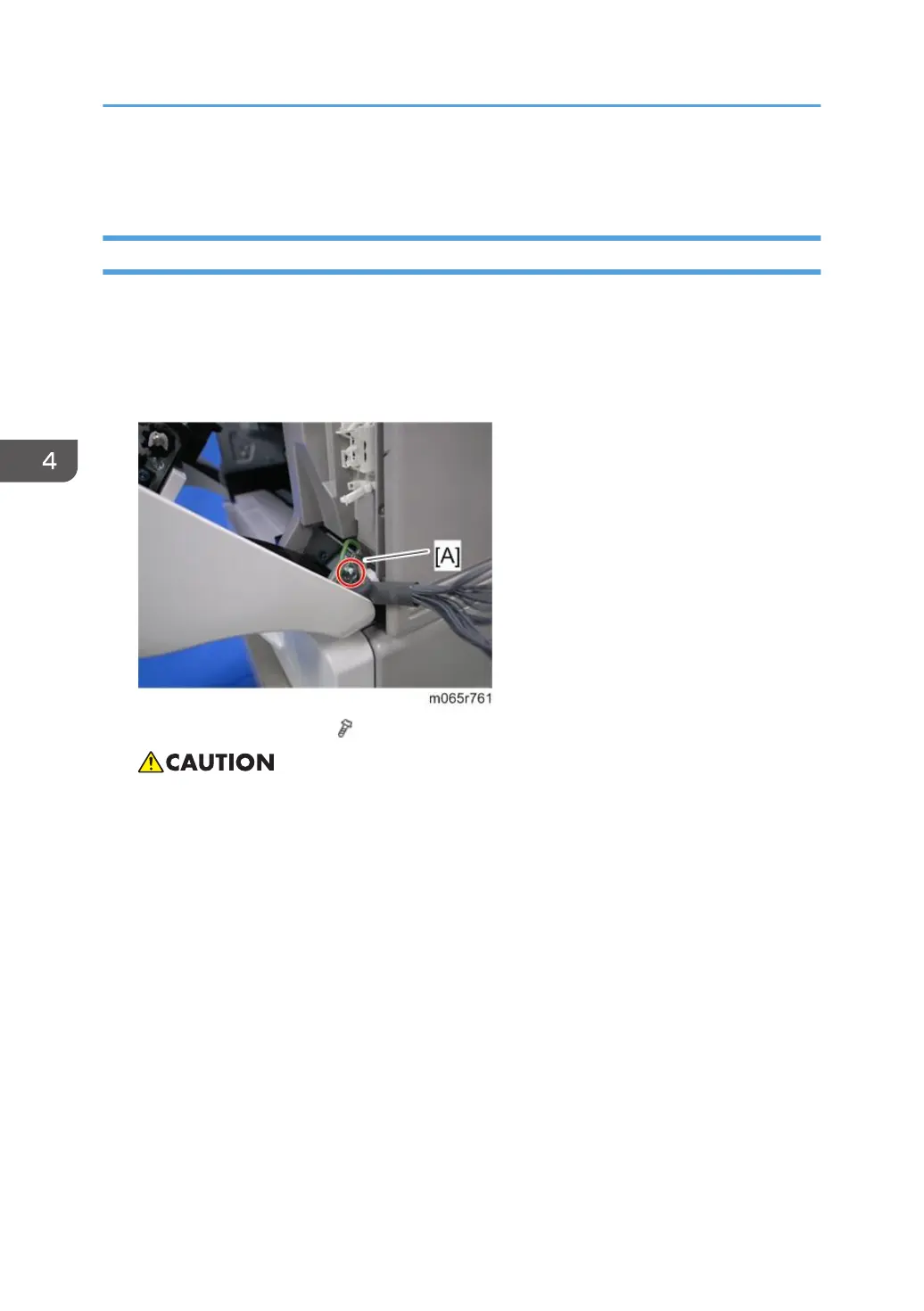

1. Open the duplex unit.
2. Connector cover (page 97 "Inner Right Front Cover")
3. Disconnect the six harnesses (page 97 "Inner Right Front Cover").
4. Remove the ground screw [A].
5. Release the right arm [A] ( x 1).
• Work carefully when releasing the right arm. This is because the right arm has strong tension
and this may cause injury.
