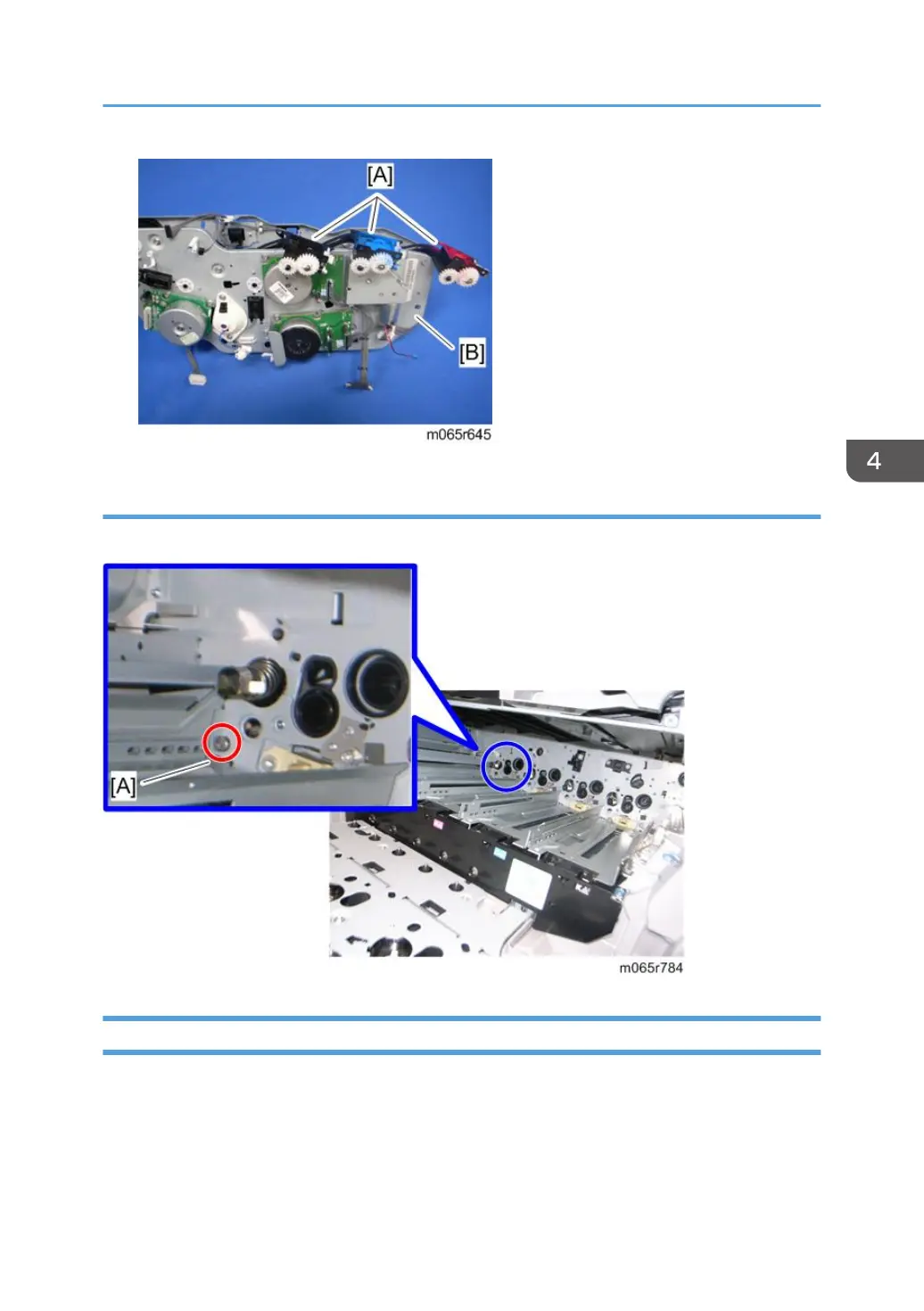

When installing the gear unit

Make sure that the positioning pin [A] is set correctly when installing the gear unit.

Toner Supply Fan

1. Right cover (page 90)

Drive Unit

151
