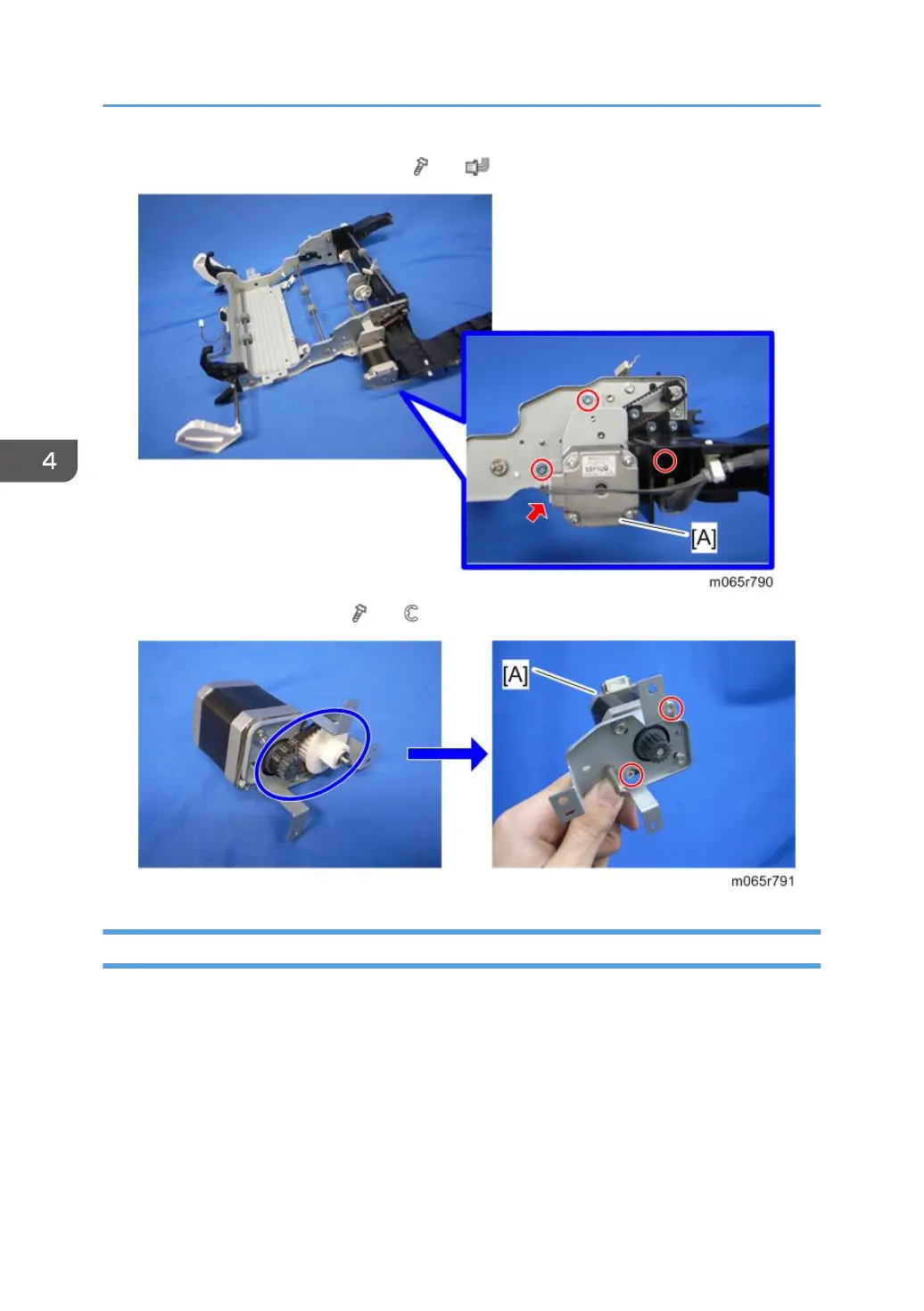

11. Duplex/By-pass motor bracket [A] ( x 3, x 1)
12. Duplex/By-pass motor [A] ( x 2, x 1, gear x1, timing belt x1)
By-pass Paper End Sensor
1. Duplex unit (page 208)
2. Duplex/By-pass motor bracket with the frame (page 216 "Duplex/By-pass Motor")
4. Replacement and Adjustment
220
