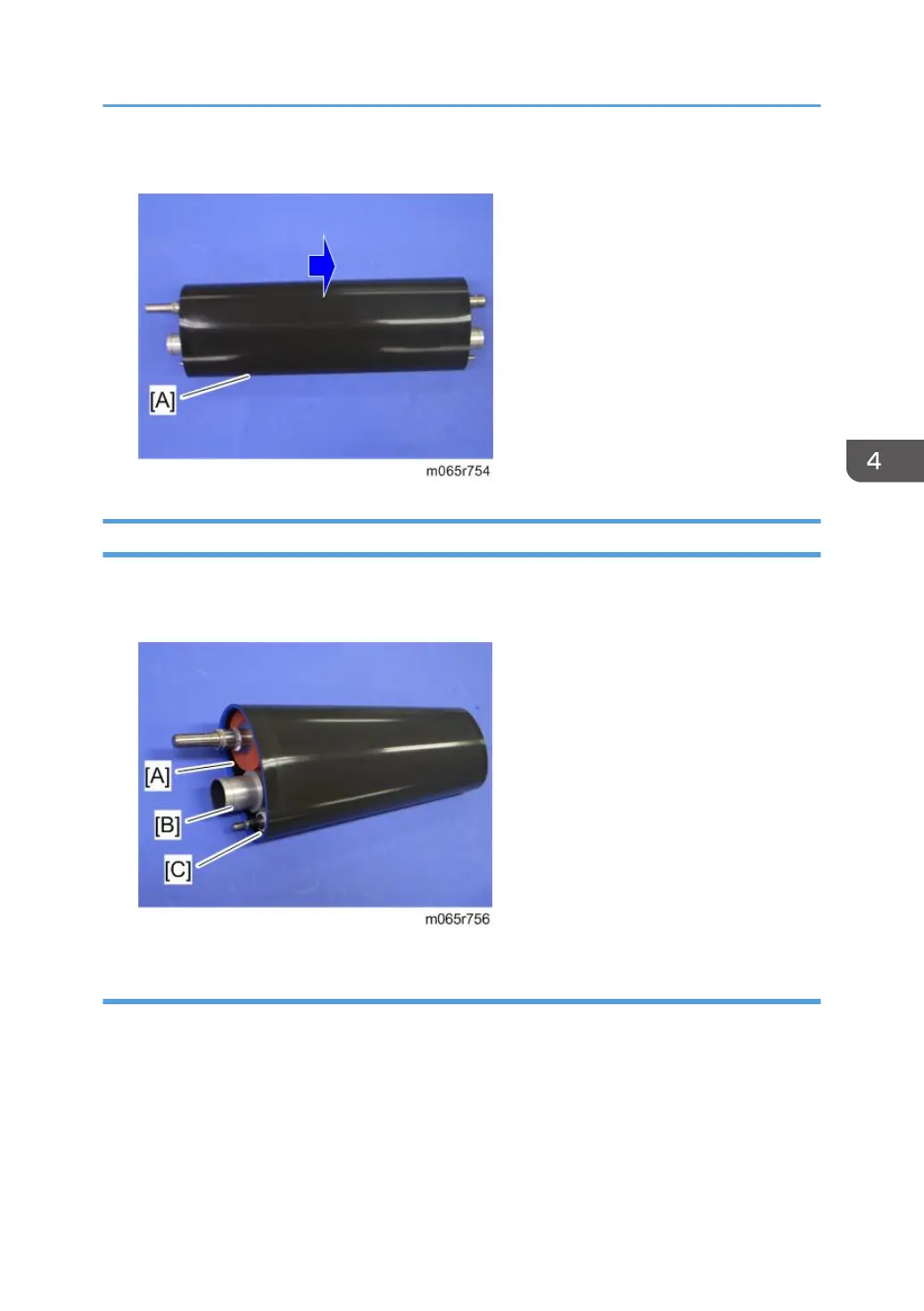

6. Fusing belt [A]
Fusing, Heating and Tension Roller
1. Fusing belt with rollers (page 175 "Fusing Belt")
2. Fusing roller [A], heating roller [B] and tension roller [C]
When Reinstalling the Fusing Roller
When replacing the fusing roller, you have to apply lubricant to the following places.
• Apply "Barrierta S552R" (0.1g to 0.2g) to the left end [A] and right end [B] of the fusing roller as
shown below.
