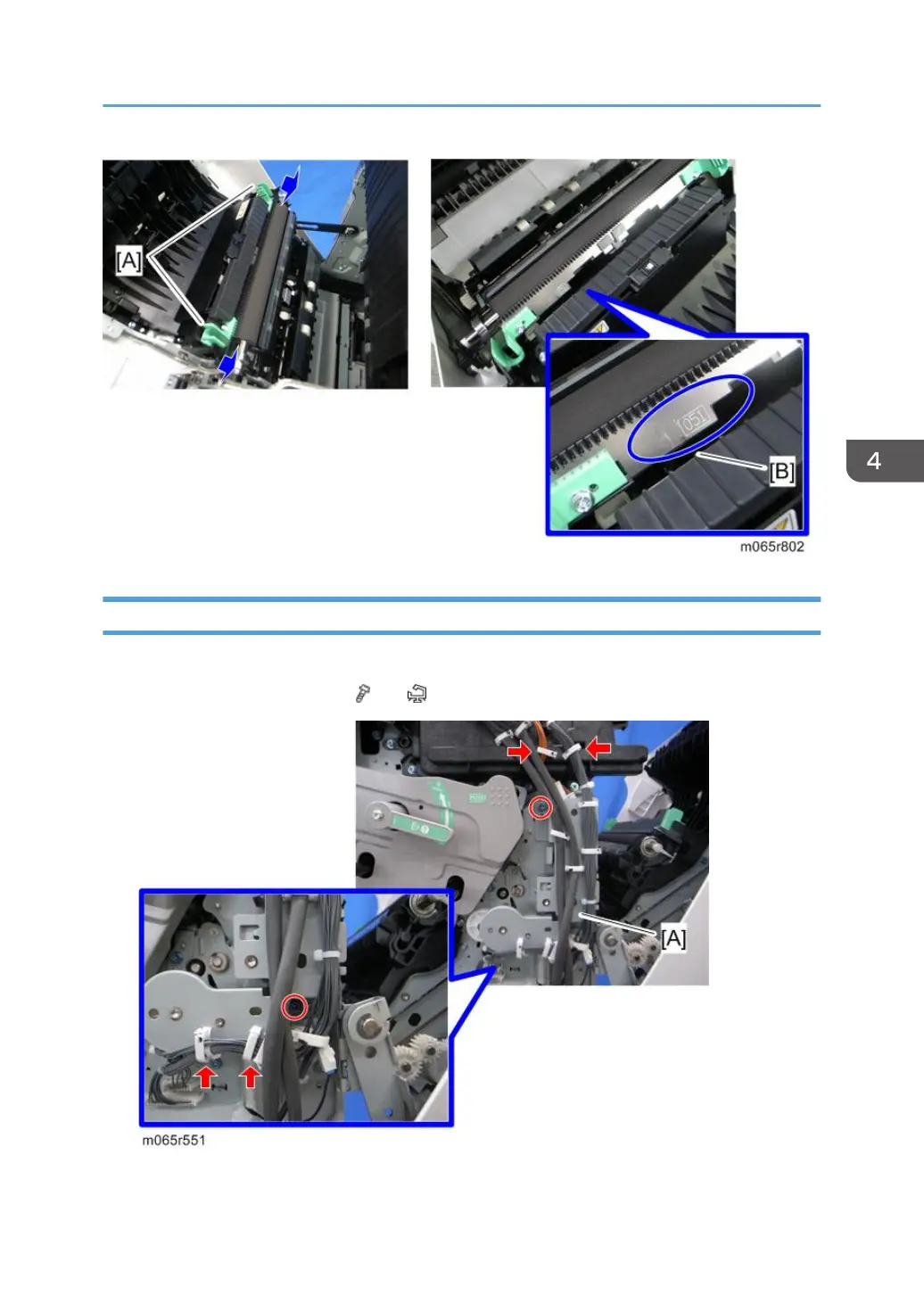

PTR Contact Motor

1. Toner collection motor (page 118)

2. Interlock switch bracket [A] ( x 2, x 4)

Paper Transfer

141
