7.

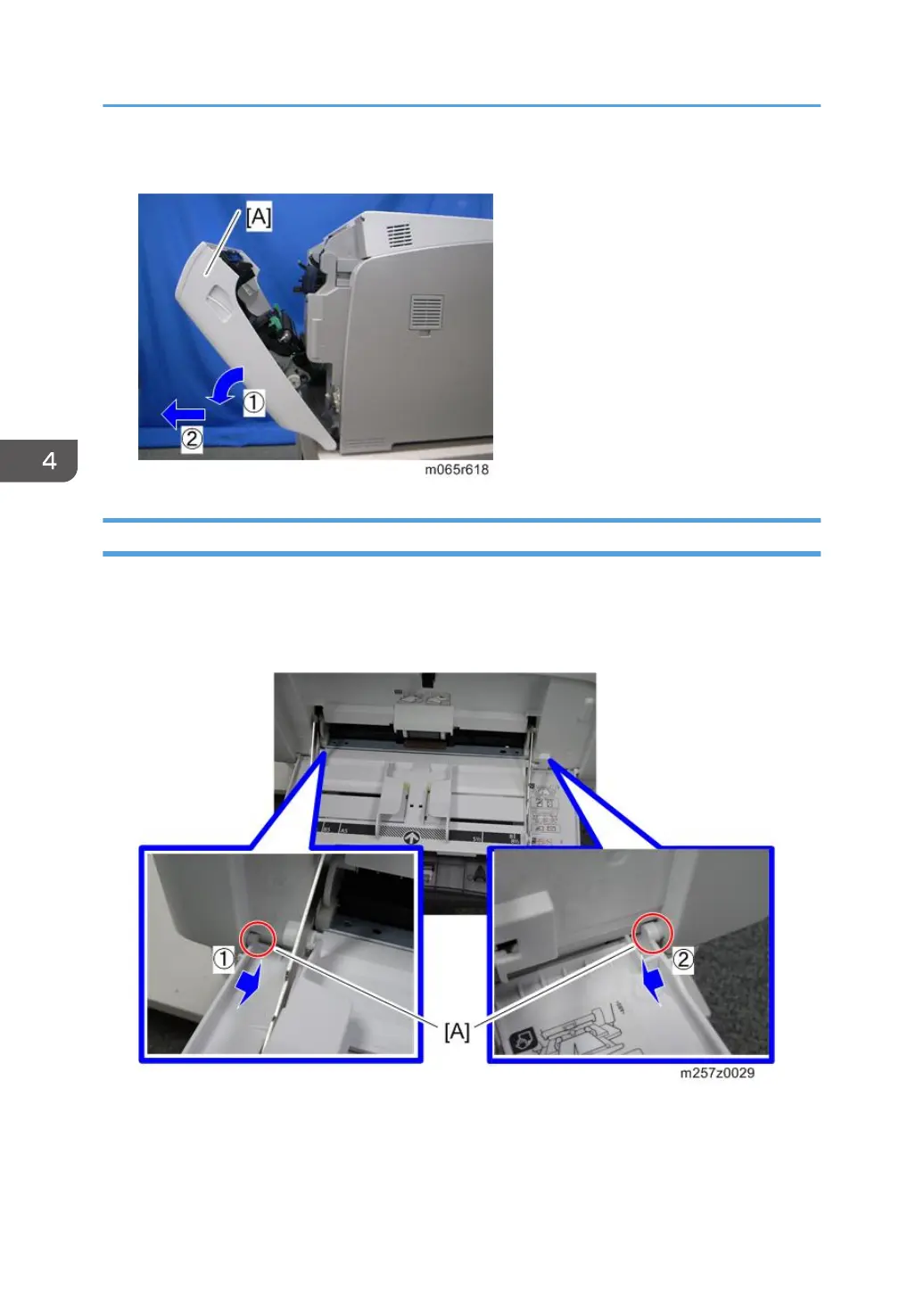

Open the duplex unit [A] fully, and then remove it.
By-pass Tray Unit
1.
Open the by-pass tray unit.
2.
Release the outer small pegs [A] of the cover.
•
Release the left peg first, and then right peg.
4. Replacement and Adjustment
210
