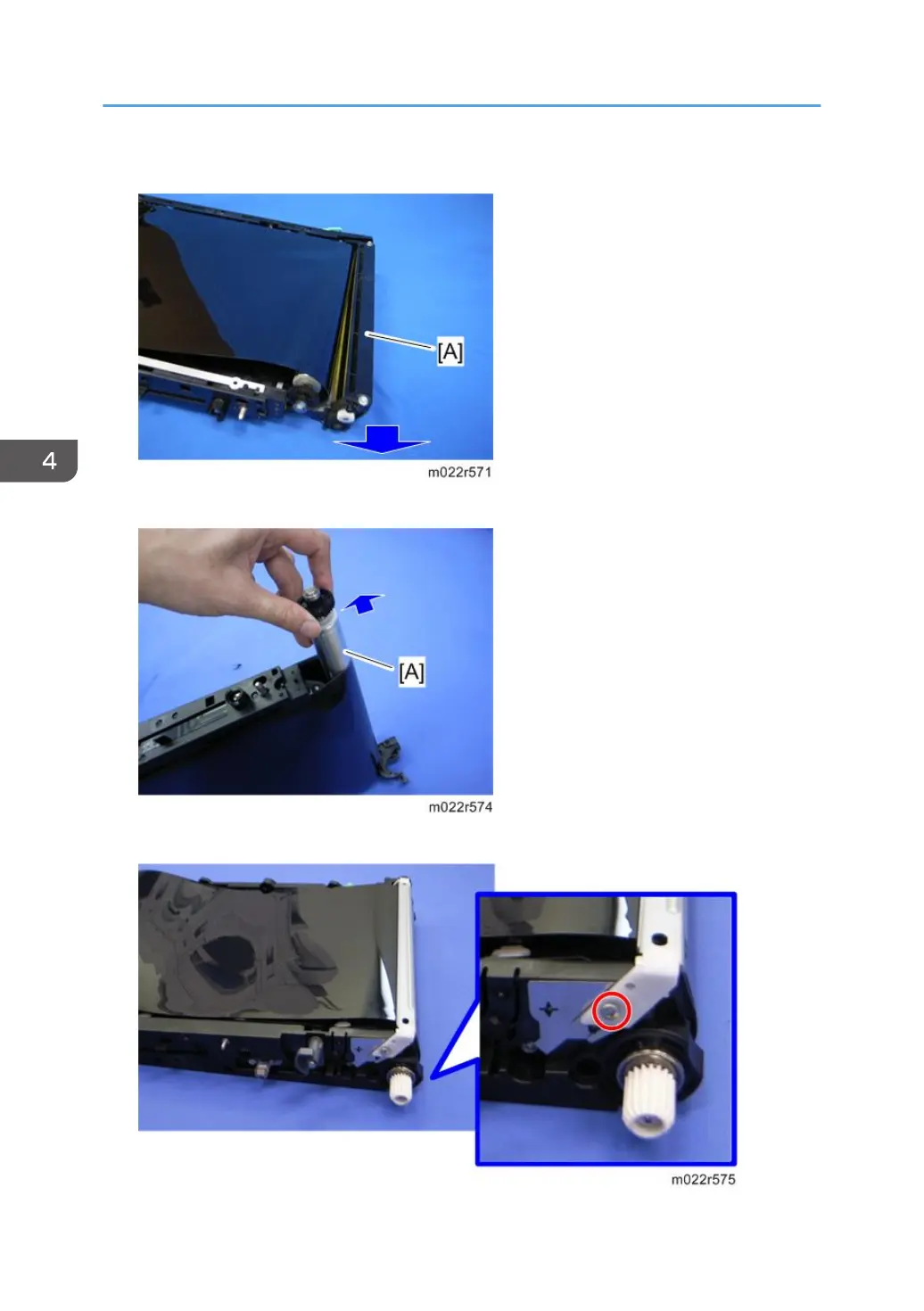

6. ITB cleaning unit [A]

7. Pull the tension roller [A] as shown below.

8. Remove a screw.

4. Replacement and Adjustment

130
