Ricoh Aficio SP C440DN

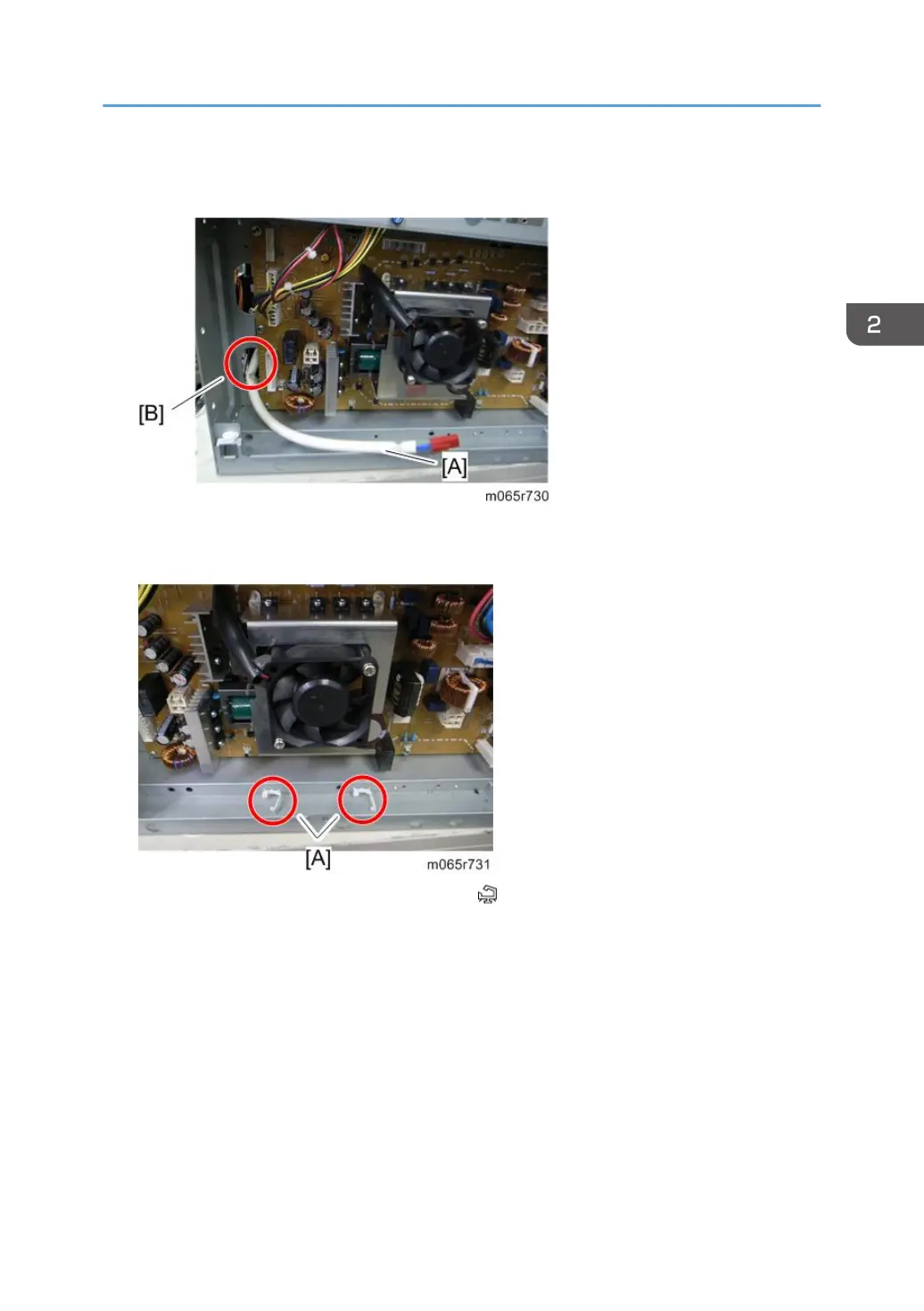

13. Pass the heater harness [A] through the hole [B] in the controller box (shown in the red
circle).
14. Reinstall the controller box.
15. Attach the two clamps [A] to the controller box.
16. Connect the relay harness [A] to CN906 [B] ( x 2).
Tray Heater
61
