Ricoh Aficio SP C440DN

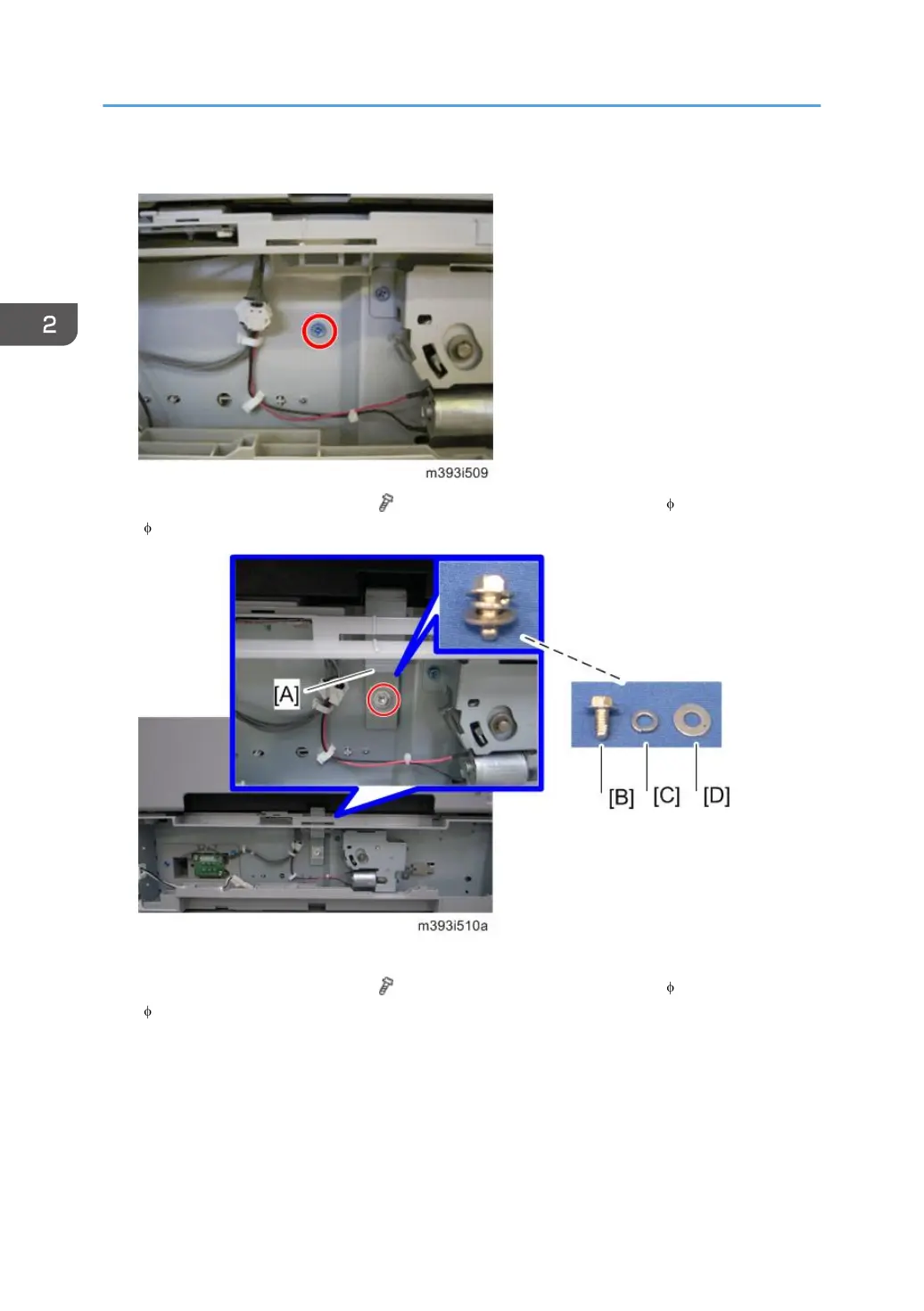

5. Remove the screw.
6. Install the securing bracket [A] ( x 1 (M3x8) [B], spring washer x 1 ( 3) [C], washer x 1
( 3) [D]).
7. Remove the right cover of the paper feed unit (page 48 "Caster Table (M393)").
8. Install the securing bracket [A] ( x 2 (M4x8) [B], spring washer x 2 ( 4) [C], washer x 2
( 4) [D]).
2. Installation
70
