Ricoh Aficio SP C440DN

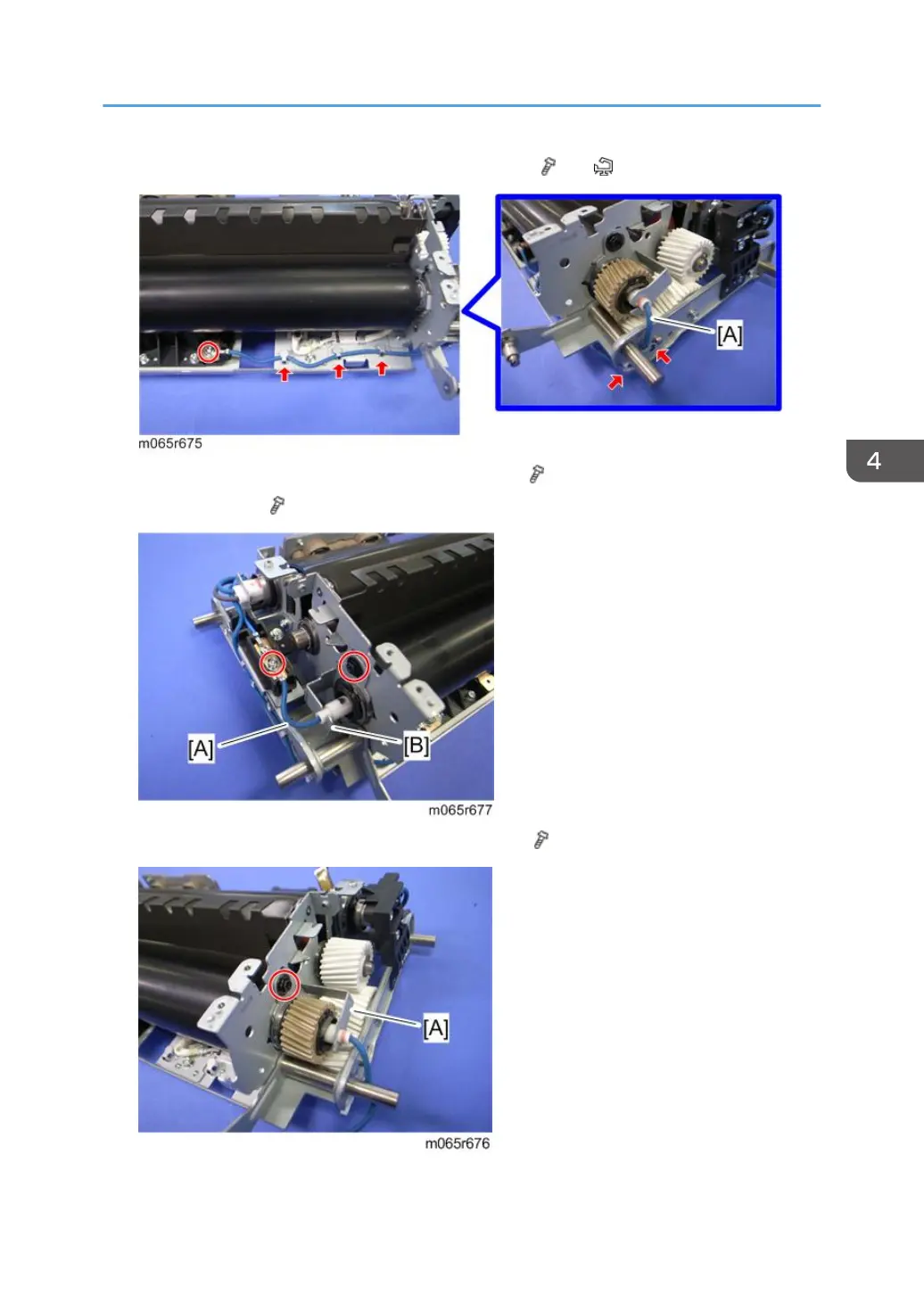

6. Release the fusing lamp harness [A] at the right side ( x 1, x 5).
7. Release the fusing lamp harness [A] at the left side ( x 1)
8. Lamp holder [B] ( x 1)
9. Remove the fusing lamp holder [A] at the right side ( x 1)
Fusing
167
