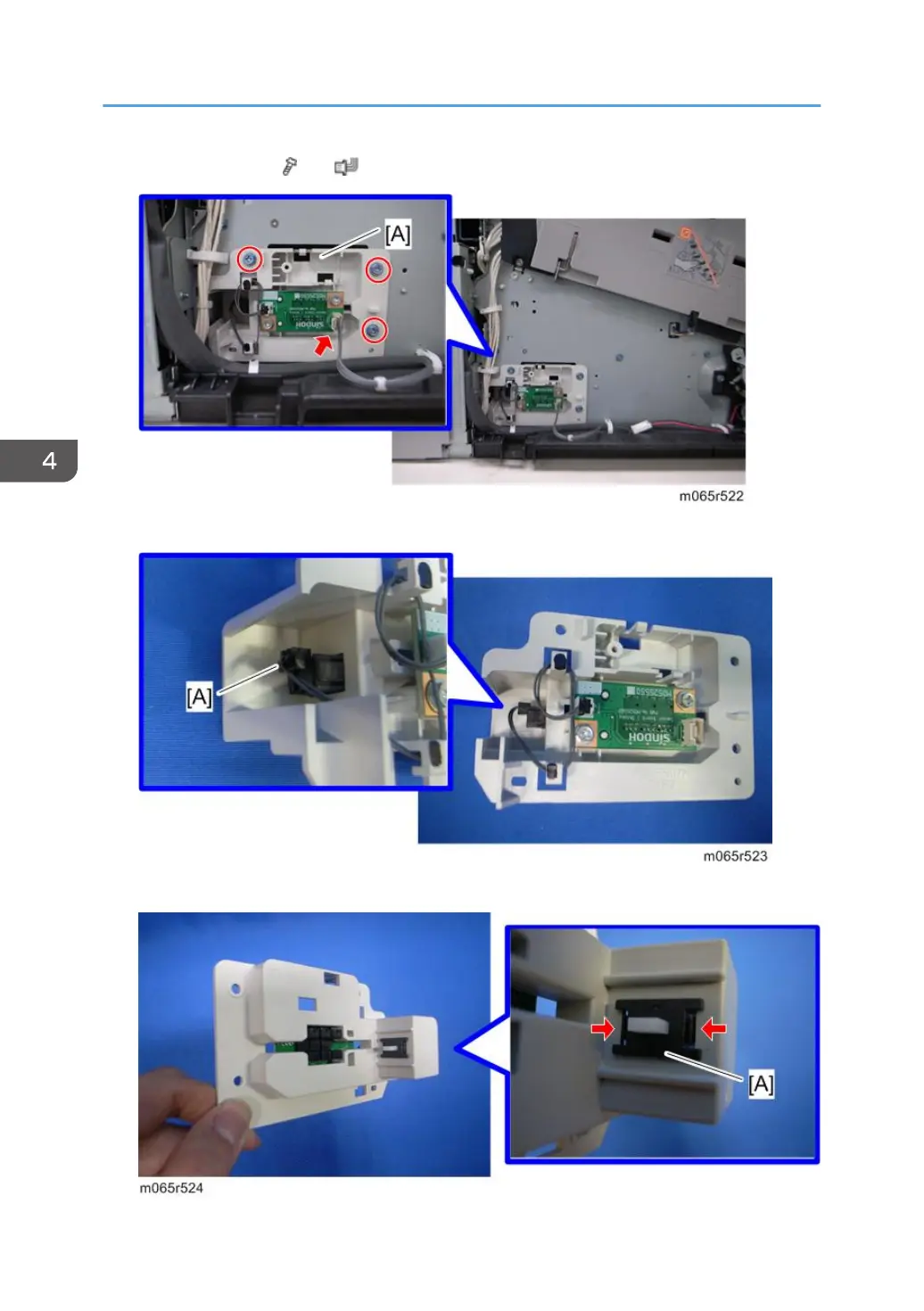

5. Sensor holder [A] ( x 3, x 1)

6. Disconnect the connector [A].

7. Tray 1 set sensor [A] (hooks)

4. Replacement and Adjustment

196
