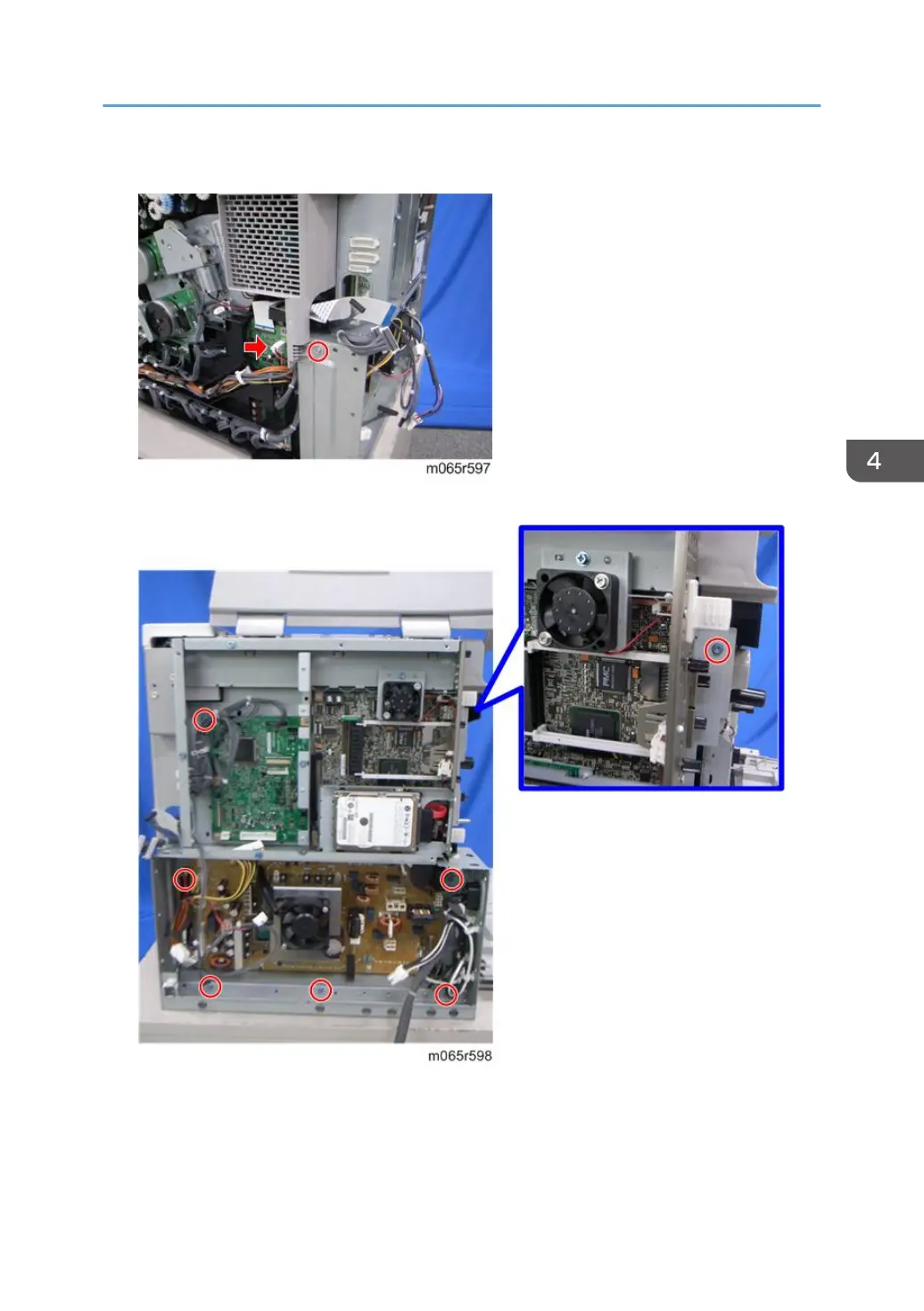

6. Remove the screw and disconnect the connector.

7. Remove the seven screws.

Electrical Components

237
