Jam Detection
Paper Jam Display

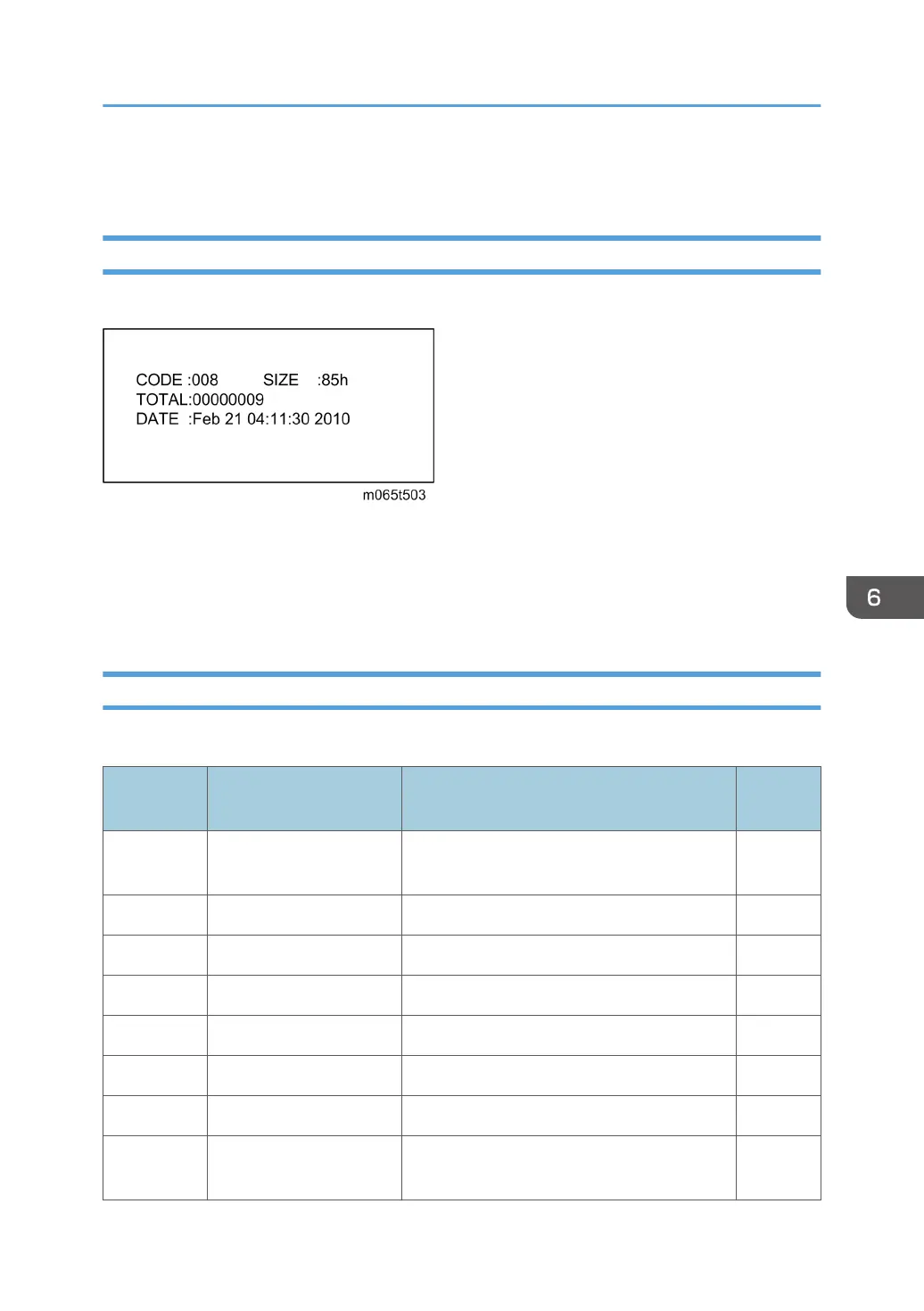

SP7-507 shows the paper jam history.
CODE: indicates the jam code.
SIZE: indicates the paper size code.
Total: Indicates the total counter (SP7-502-001).
DATE: indicates the date when the jam occurred.
Jam Codes and Display Codes
SP 7504 shows how many jams occurred at each location.
Jam Code
SP
Display Description
LCD
Display
7504 1 At Power On Paper has already stayed in the paper path at
power on.
-
7504 3 Tray 1: ON Paper is not fed from tray 1. A
7504 4 Tray 2: ON Paper is not fed from tray 2. Y
7504 5 Tray 3: ON Paper is not fed from tray 3 (LCT). Y
7504 6 Tray 4: ON Paper is not fed from tray 4. Y
7504 8 Bypass: ON Paper is not fed from the by-pass tray. A
7504 9 Duplex: ON Paper is jammed at the duplex unit. Z
7504 11 V-Transport 1: ON Vertical transport sensor 1 does not detect
paper from tray 1.
