Paper Feed
M0C3/M0C4/M0C5/M0C6/M0C7 4-54 SM

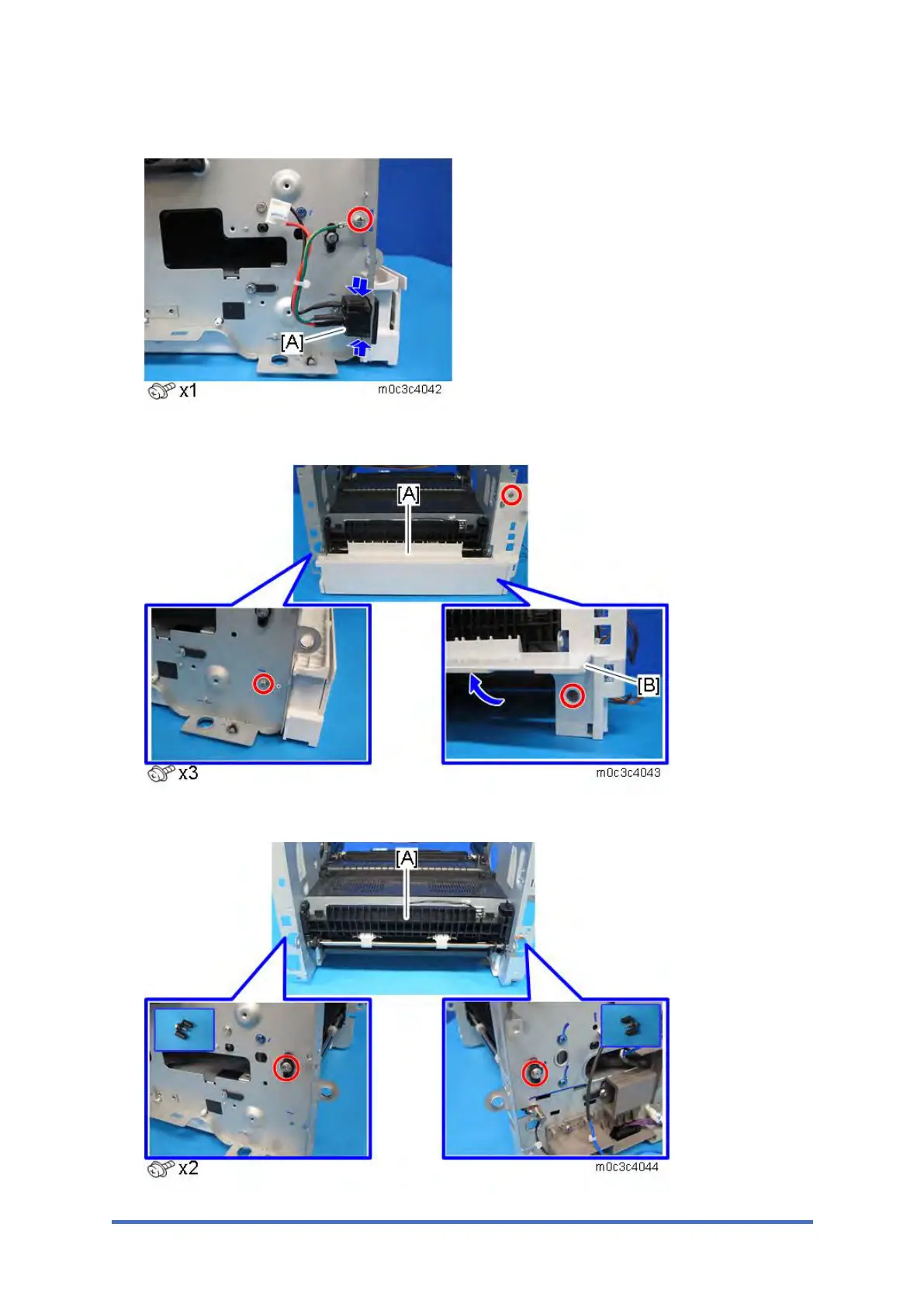

16. Remove the main power cord [A] on the right side.
17. Remove the rear lower cover [A]. There is a screw behind the tray cover [B].
18. Remove the bushings on both sides, and remove the duplex cover [A].
