Paper Feed
SM 4-55 M0C3/M0C4/M0C5/M0C6/M0C7
and
19. Set the machine with the front side facing down, resting on the table.

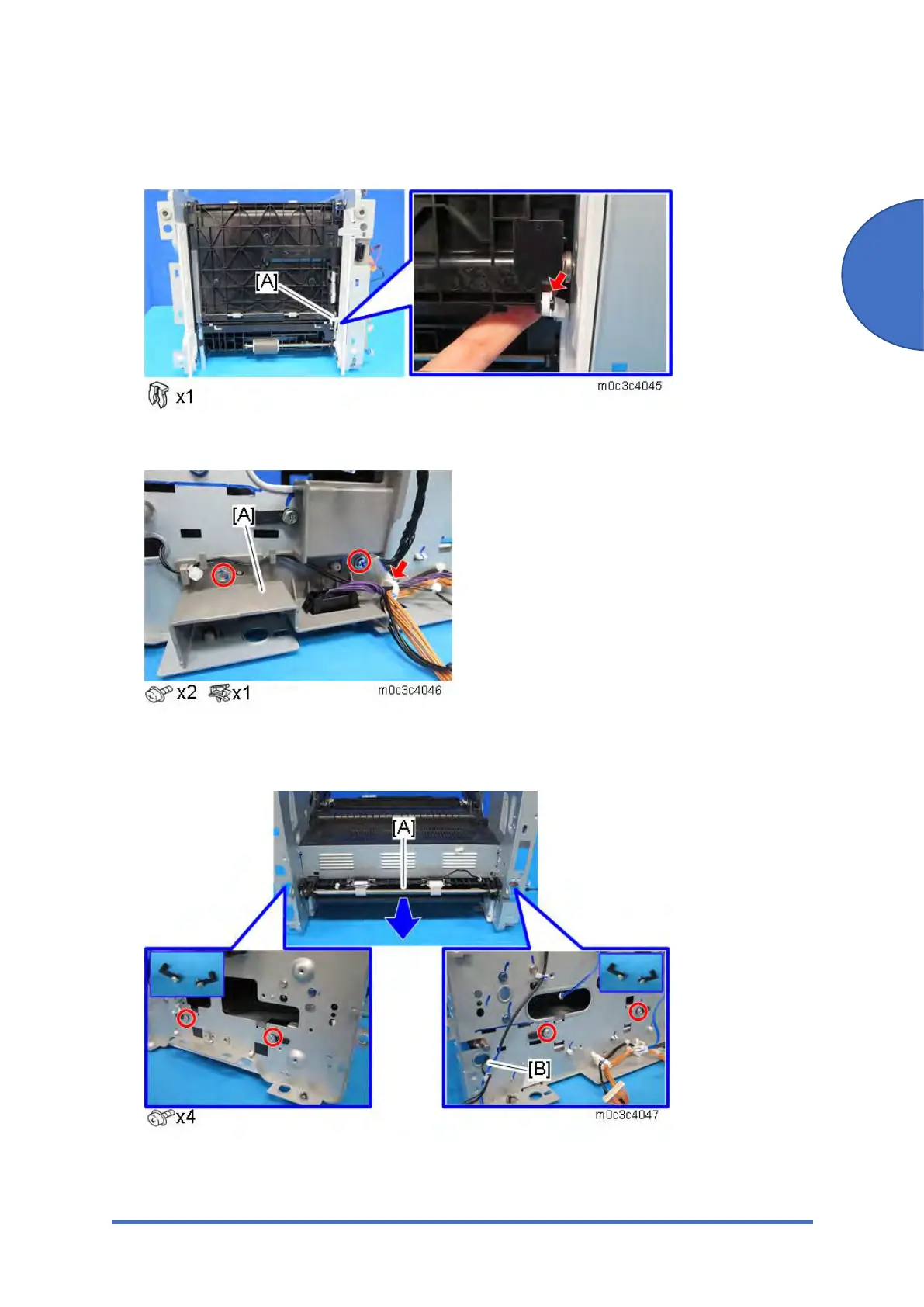

20. Release the link [A].
21. Remove the bracket [A] on the left side.
22. Remove the bushings on both sides and pass the harness [B] through the hole inside the
machine, and then remove the duplex transport guide [A].
23. Remove the clamp [B], and then remove the bracket [A].
To Next Page
