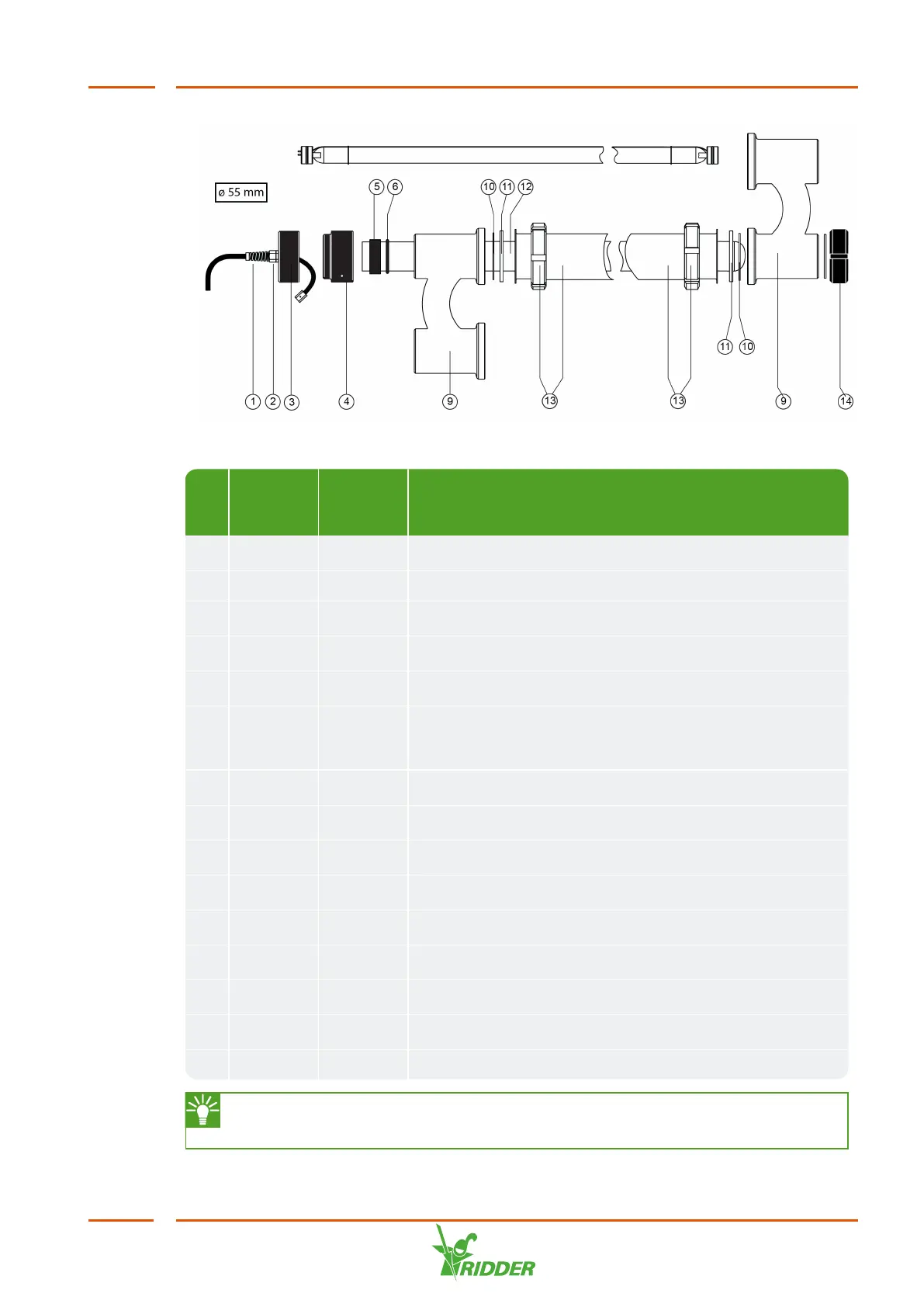

Figure 4-7: Exploded view of UV reactors with 44-mm and 55-mm diameters
No.
Item no.
Ø44 mm
Item no.
Ø55 mm
Description
1 85041500 85041500 Connection cable for lamp UL / CSA
2 - - Cable gland with strain relief
3 97910071 97910071 Reactor cap (black) for quartz tube
4 97910062 97910061 Reactor cap (black) for quartz tube
5 97910020 97910030 Black pressure bush for quartz tube
6 98294440 98295540 Viton O-ring 43x4 for quartz tube 44
/ 55x4 for quartz tube 55
7 97910040 N/A Adapter, plastic ring for quartz tube 44
8 - N/A O-ring for adapter quartz tube 44
9 78020100 78020100 Coupling RVS316
10 97910000 97910010 Flow plate 44 / 55, incl. seal
11 98295570 98295570 Viton O-ring 76.1 mm for flow plates
12 98011000 98011010 Quartz tube 44 / quartz tube 55
13 78020000 78020000 UV reactor
14 97910080 97910080 Rear blind plugs for quartz tube 44 / 55
15 93600000 93600000 UV-C lamp
Start with the lower reactor to prevent leakages and unwanted flooding of
quartz tubes that have already been installed.
