Data and File Management
R&S
®
RTM20xx
224User Manual 1317.4726.02 ─ 01
13.2.2.1 Configuring the PRINT-Key Behavior
The PRINT key can either be used to print screenshots to a connected printer, or to save
data to a specified storage location just by pressing a single key.
1. Press FILE > "Print Key".
2. Press the softkey of the action that you want to assign to the PRINT key.
3. Configure the settings for the selected action:
● Save device settings: FILE > "Device Settings > Save"
● Save a waveform: FILE > "Waveforms"
● Save a screenshot: FILE > "Screenshots"
● Save a screenshot and the device settings: FILE > "Screenshots" and FILE >
"Device Settings > Save"
● Print screenshots: SETUP > "More > Printer"
After this configuration the selected action is started whenever you press the
PRINT key.

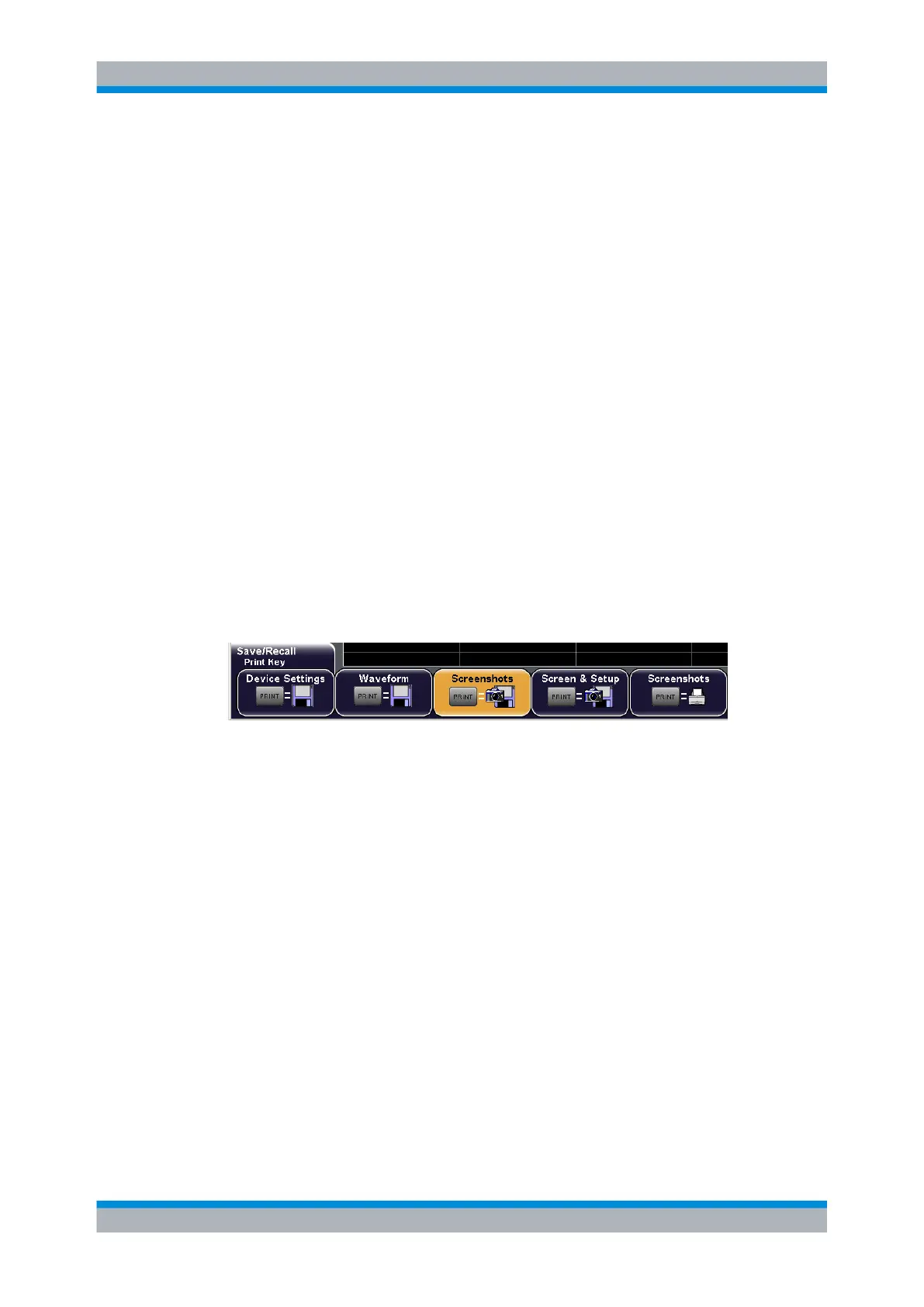

13.2.2.2 PRINT-Key Settings
With FILE > "Print Key" you define an action that will be executed by pressing the
PRINT key.
Device Settings...........................................................................................................224
Waveforms..................................................................................................................224
(Save) Screenshots.....................................................................................................224
Screen & Setup...........................................................................................................225
(Print) Screenshots.....................................................................................................225
Device Settings
If selected, the device settings are stored when you press the PRINT key. Storage set-
tings are configured with FILE > "Device Settings".
See also: chapter 13.2.3.2, "Device Settings Menu", on page 226.
Waveforms
If selected, the current waveform is stored when you press the PRINT key. Storage set-
tings are configured with FILE > "Waveforms".
See also: chapter 13.2.4.3, "Waveform Storage Settings", on page 229.
(Save) Screenshots
If selected, a screenshot of the current display is stored when you press the PRINT key.
Storage settings are configured with FILE > "Screenshots".
See also: chapter 13.2.5.2, "Screenshot Storage Settings", on page 231.
