M-48 Control
204

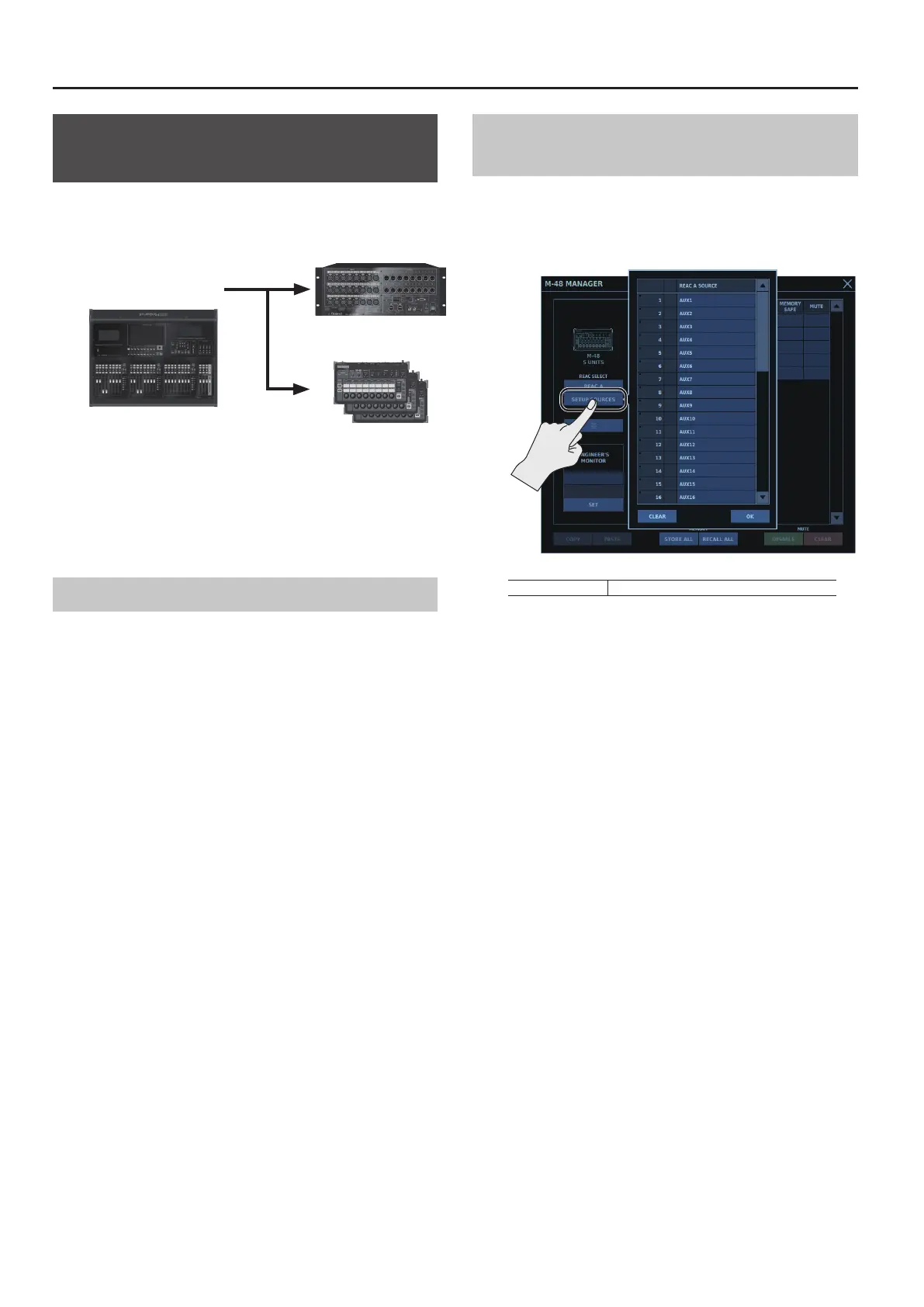

Making Settings for Output from the
M-5000 to M-48 Units
The M-48 functions as a REAC SPLIT device, and mixes the M-5000’s
output patchbays as a 40-channel source. To change the M-48’s
40-channel source, change the output patchbay at the REAC port
where the M-48 is connected.
MASTER
OUTPUT PATCHBAY
1-40
SLAVE
SPLIT
40-channel source
You make changes to the output patchbay or the M-48’s 40-channel
source at the PATCHBAY window OUTPUT tab or the M-48
MANAGER window.
0“Making Settings for the Output Patchbay/M-48 40-channel
Source at the M-48 MANAGER Window” (p. 204)
Tips for Output Patchbay Settings
5 Note that output patchbay settings aect all REAC devices
connected to the REAC ports.
5 When using direct out from a CH TOP, PRE PROC, or PRE FADER
position, you can create separate mixes for each individual M-48
unit by using the M-48’s source level and pan settings.
5 In the case of direct out from the POST FADER position, you can
use the M-5000’s faders to manipulate the level.
5 You can make a group mix or the house mix the source for M-48
units by patching the output bus.
5 You can also patch talkback.
Making Settings for the Output Patchbay/M-48
40-channel Source at the M-48 MANAGER Window
1. At the M-48 MANAGER window, tap <SETUP SOURCES>.
A popover appears for making output patchbay and M-48
40-channel source settings for the REAC port selected using <REAC
SELECT>.
OK This exits the popover.
2. Make the settings for the output patchbay and M-48
40-channel source.
The operation methods are the same as for the PATCHBAY window.
To Next Page
