M-48 Control

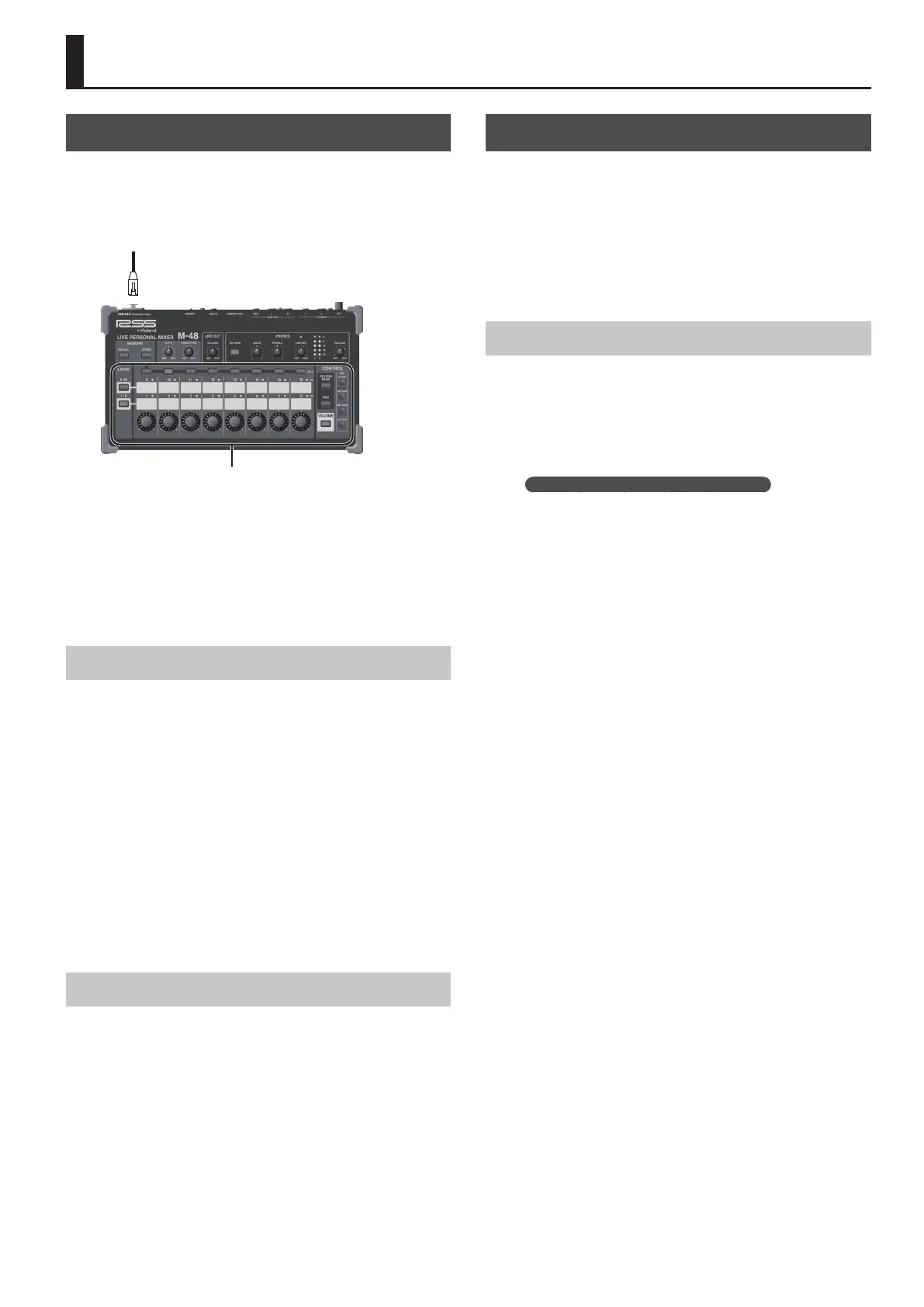

About the M-48
The M-48 is a next-generation live personal mixer that gives each
performing artist full individual control of the balance of the
personal monitor mix.
The M-48 operates as a REAC SPLIT device.
0“REAC Applications and EXPANSION SLOT Settings” (p. 243)
40-channel source
REAC Embedded Power
16 group mix (stereo)
5 Transmission of power and 40 channels of audio over a single
Category 5e cable
5 Engineer mixing of a 40-channel source
5 Musician mixing of 16 stereo groups
5 Ambient microphones and built-in reverb
5 LINE OUT and PHONES jacks
5 Engineer Monitor feature
Overview of M-48 Settings
The following matters are described in this section.
5 Connecting the M-5000 and M-48 units
5 Listing connected M-48 units (M-48 MANAGER window)
5 Making settings for output from the M-5000 to M-48 units
5 Copying and pasting settings at the M-48 MANAGER window
5 Making settings for each M-48 (M-48 SETUP window)
5 Copying and pasting settings at the M-48 SETUP window
5 Making LEDs ash to identify M-48 units
5 M-48 preference settings
5 Engineer Monitor feature
5 M-48 internal memory
5 Saving settings of an entire M-48
5 M-48 libraries
5 M-48 projects
Where M-48 Settings Are Saved
M-48 settings are saved in each respective M-48 unit. The M-5000
imports the settings from each M-48 for editing and management.
The following two methods are available for saving M-48 settings
externally.
5 Saving M-48 libraries on the M-5000
5 Saving M-48 project les on a USB ash drive
0“Saving Settings of an Entire M-48” (p. 216)
Connecting the M-5000 and M-48 Units
You connect M-48 units to the REAC A, B, and SPLIT/BACKUP ports
on the M-5000. Making settings and controlling the M-48 from the
M-5000 is not possible if the M-48 is connected via an XI-REAC card.
Connecting the M-5000 and an M-48 requires an optionally
available S-4000D splitter and power distributor.
Output from the M-5000’s REAC ports is split by the S-4000D to up
to 64 M-48 units connected using REAC cables.
The mixing engineer can make settings on each M-48 unit from the
M-5000.
Restrictions in Use with the M-48 at 96kHz
When the sampling rate is set at 96 kHz, the number of audio
channels that a REAC slave device present at the REAC port where
the M-48 is connected can send to the M-5000 is 32. Sending 33 or
more channels produces noise.
(Because of the M-48’s control signals, obtaining a band on
100BASE-TX ample enough for the REAC slave device to send 40
audio channels at 96 kHz is not possible.)
REAC device sending 40 channels at 96 kHz
5 M-5000
5 S-4000S-4000
5 S-4000M
5 S-2416 with cascade connection
5 R-1000
To Next Page
