GP I/O and Foot Switches
254
GPI / FOOT SW Tab
You use the GPI / FOOT SW tab to assign functions to the GPI
connectors and the FOOT SW 1 and 2 jacks.
0“Assigning Functions to GPI Connectors and FOOT SW Jacks”
(p. 254)
Parameter area
PIN column
Display the GPI connector or FOOT SW jack
connector number
ACTION column
Display the function assigned to the GPI
connector or FOOT SW jack
TARGET column
Display the channel, talkback, monitor, or FX
number that is the function’s target
DETECT column
Display the type of the input waveform that
triggers function execution
STATUS column
Display the connector status (HIGH/LOW/volume
value)
Parameter area
This assigns the function to the selected
connector number.
0“GPI / FOOT SW Tab Parameter Area” (p. 255)
Assigning Functions to GPI Connectors and
FOOT SW Jacks

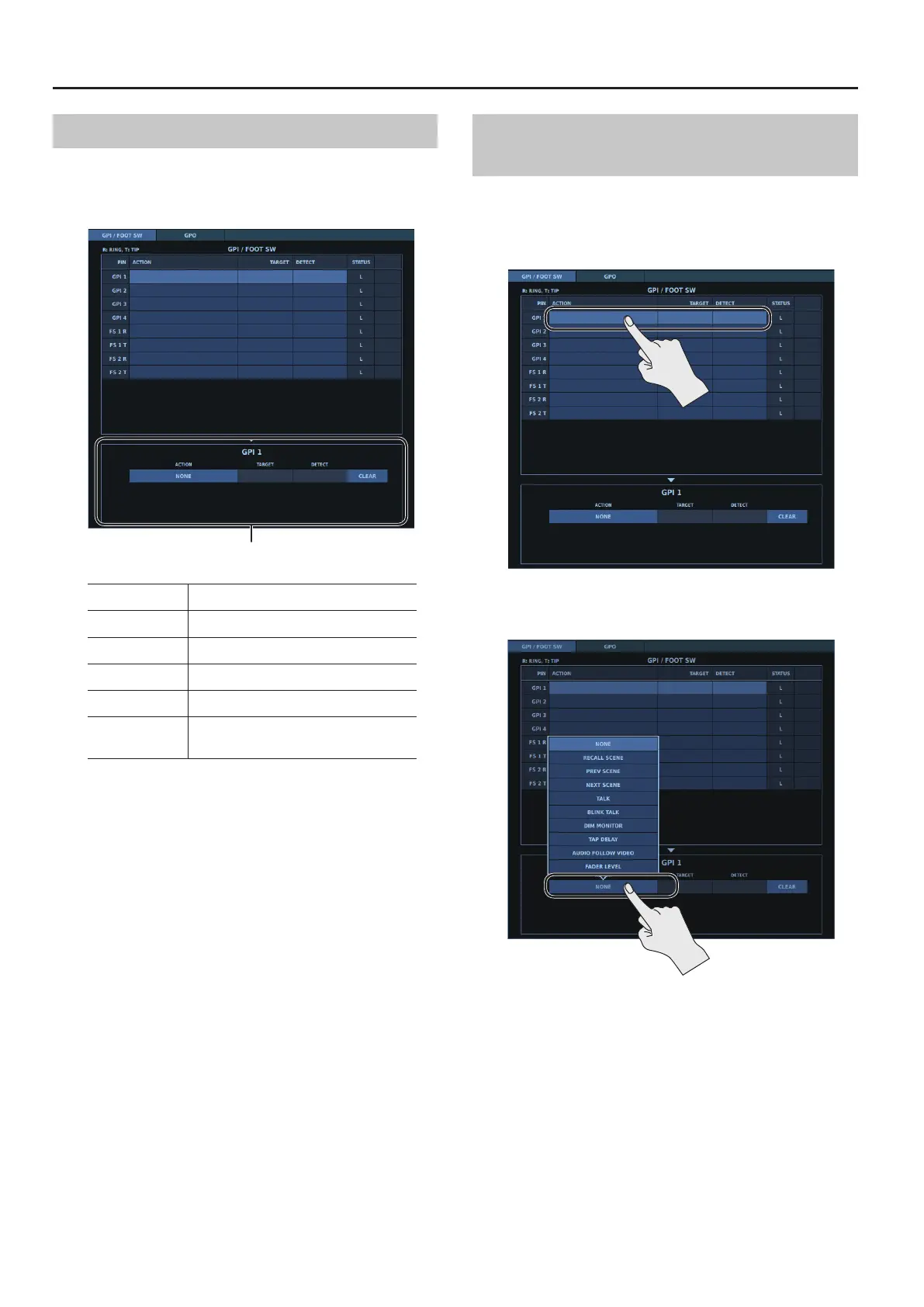

1. Display the GPI/O / FOOT SW window GPI / FOOT SW tab.
2. Select the connector number where you want to assign
the function.
3. Go to the parameter area and tap <ACTION>.
A popover for selecting the function appears.
4. Select the function.
