GP I/O and Foot Switches
257

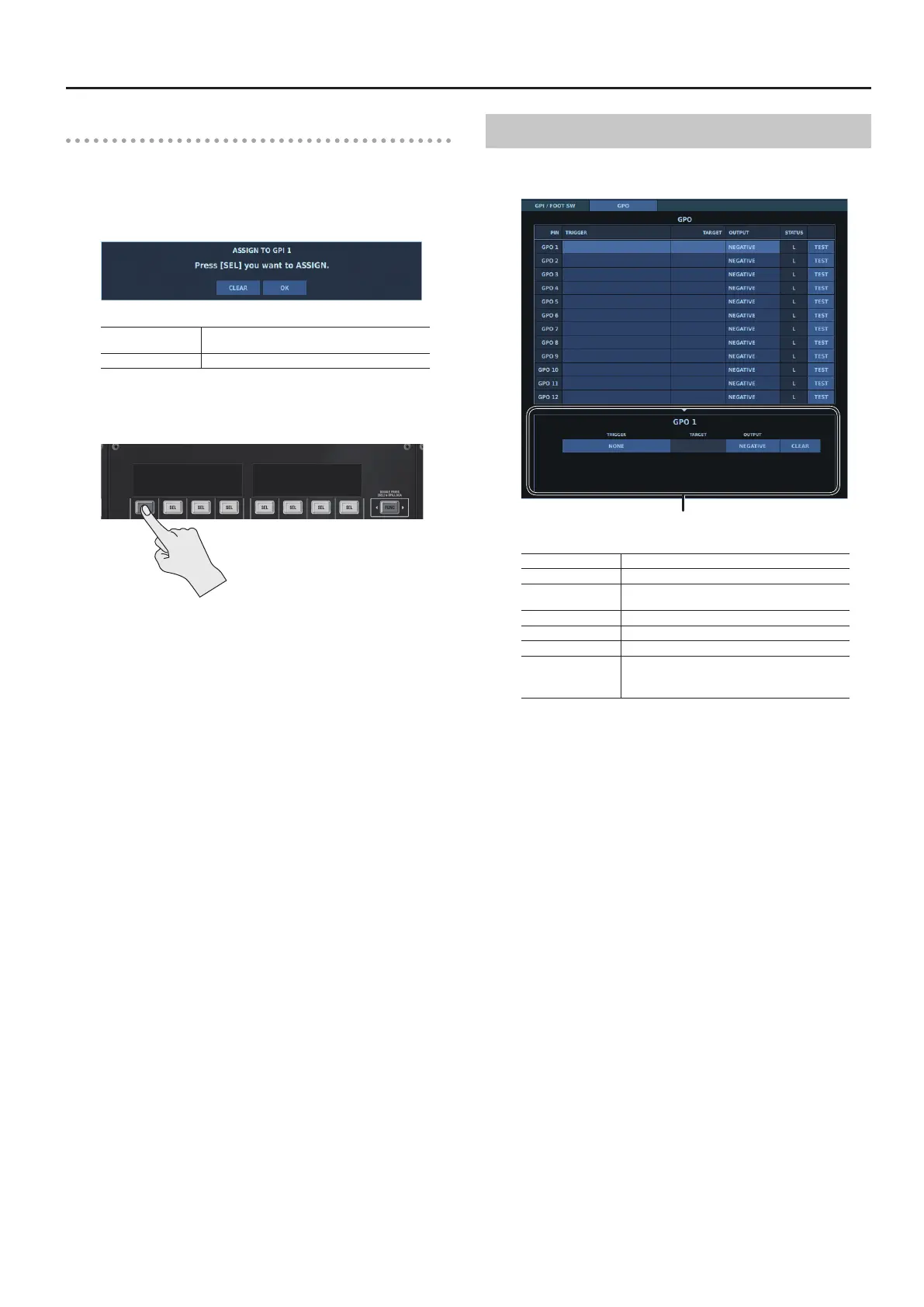

Selecting the Fader for Applying a Function
This selects the fader for applying AUDIO FOLLOW VIDEO or FADER
LEVEL.
1. Tap <TARGET>.
A popup for selecting the fader appears.
CLEAR
This clears the fader where the function is
currently applied.
OK This exits the popup, keeping the current setting.
2. Press the [SEL] button for the input channel or output bus
to apply the function.
The function is applied to the selected input channel or output bus.
GPO Tab
You use the GPO tab to assign functions to GPO connectors.
0“Assigning Functions to GPO Connectors” (p. 258)
Parameter area
PIN column Display the GPO connector number
TRIGGER column Display the function assigned to a GPO
TARGET column
Display the channel, talkback, or user button
number of the function trigger
OUTPUT column Display the type of the GPO output waveform
STATUS column Display the connector status (HIGH/LOW)
TEST Tapping this outputs a test signal from the GPO.
Parameter area
This assigns the function to the selected
connector number.
0“GPO Tab Parameter Area” (p. 258)
To Next Page
