20
Control Lines
For classification or filling in the ''over/under checkweighing" application program, you can use the voltage levels of four data
Output port lines to control an external on-line display or control instrument.

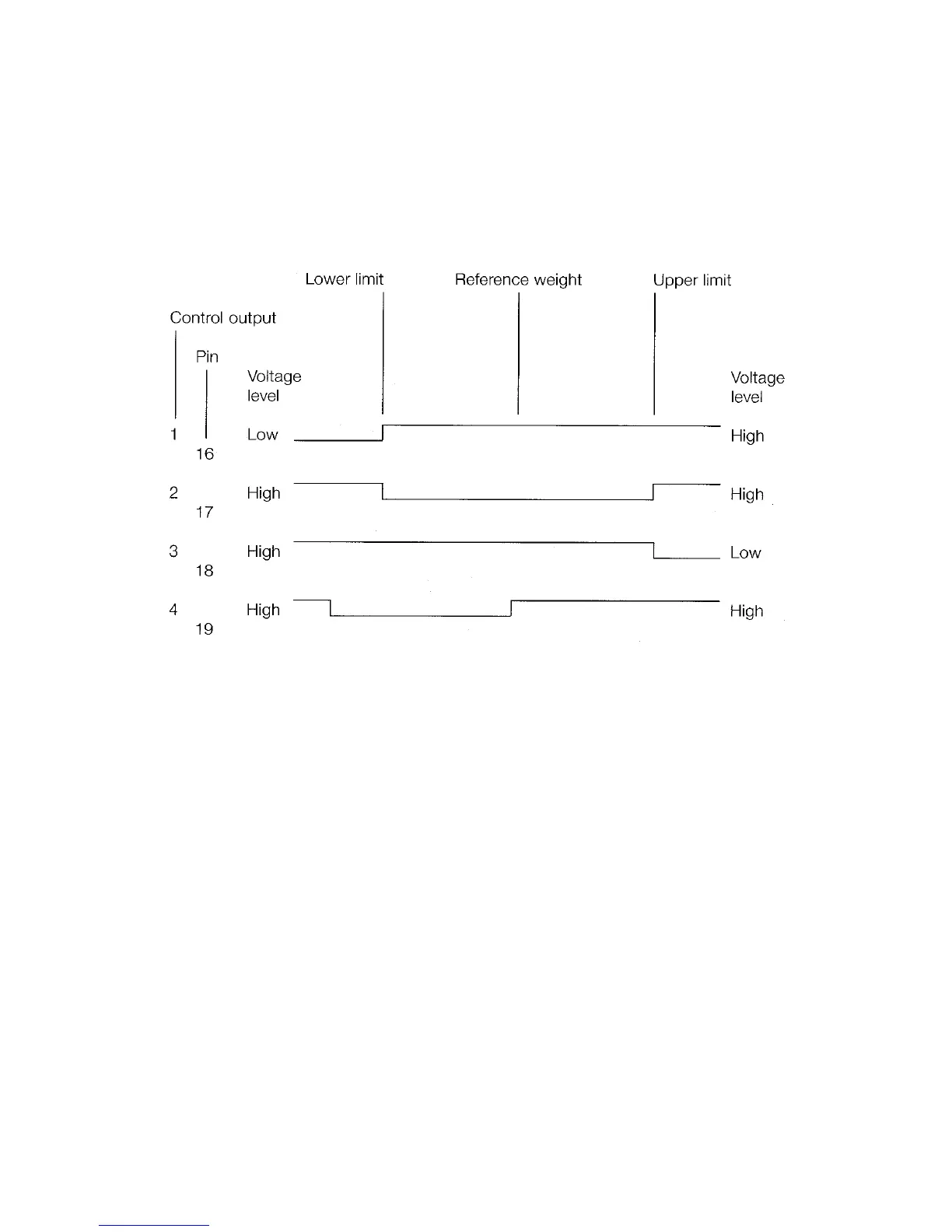

The voltage levels of the data Output ports will change according to various patterns, depending on the reference weight and
on the lower and upper weight limits.
Control output 1: lighter
Control output 2: equal
Control output 3: heaver
Control output 4: “set” (target)
