Pin Assignment Chart
Female Interface Connector:
25-position D-submini, DB25S with screw lock hardware for cable gland
Male Connector Required: (please use connectors with the same specifications)
25-pin D-submini, DB25S, with shielded cable clamp assembly (Amp type 826 985-1 C) and fastening screws (male screws for
female screw lock, Amp type 164 868-1)

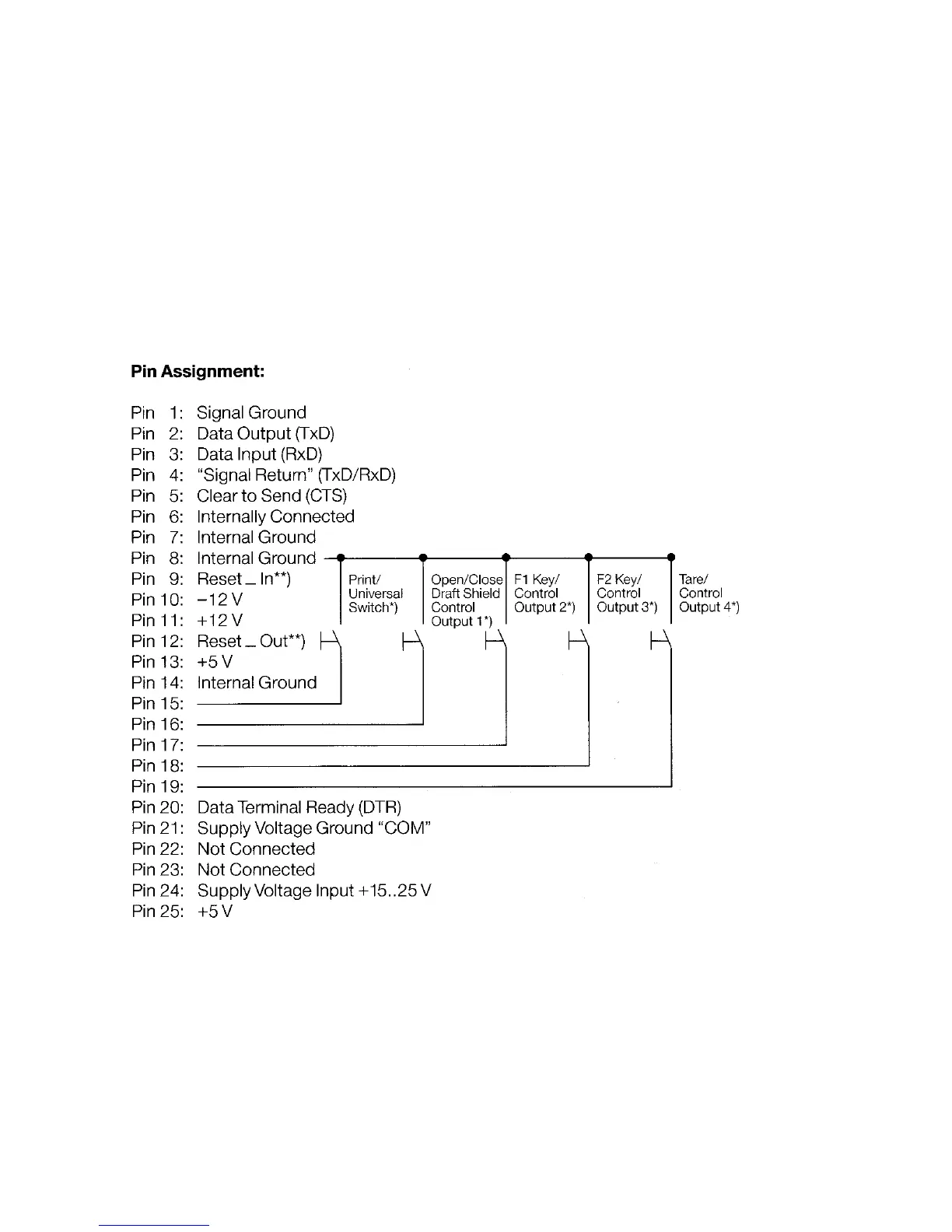

Pin Assignment:
*) = To change the pin assignment, see "Data lnput/Output to/from the Female Interface Connector" on page 21
**) = Hardware restart
