SATO E series User Manual

Section 1. Programming Concepts
Page 1-8 SATO Programming Reference

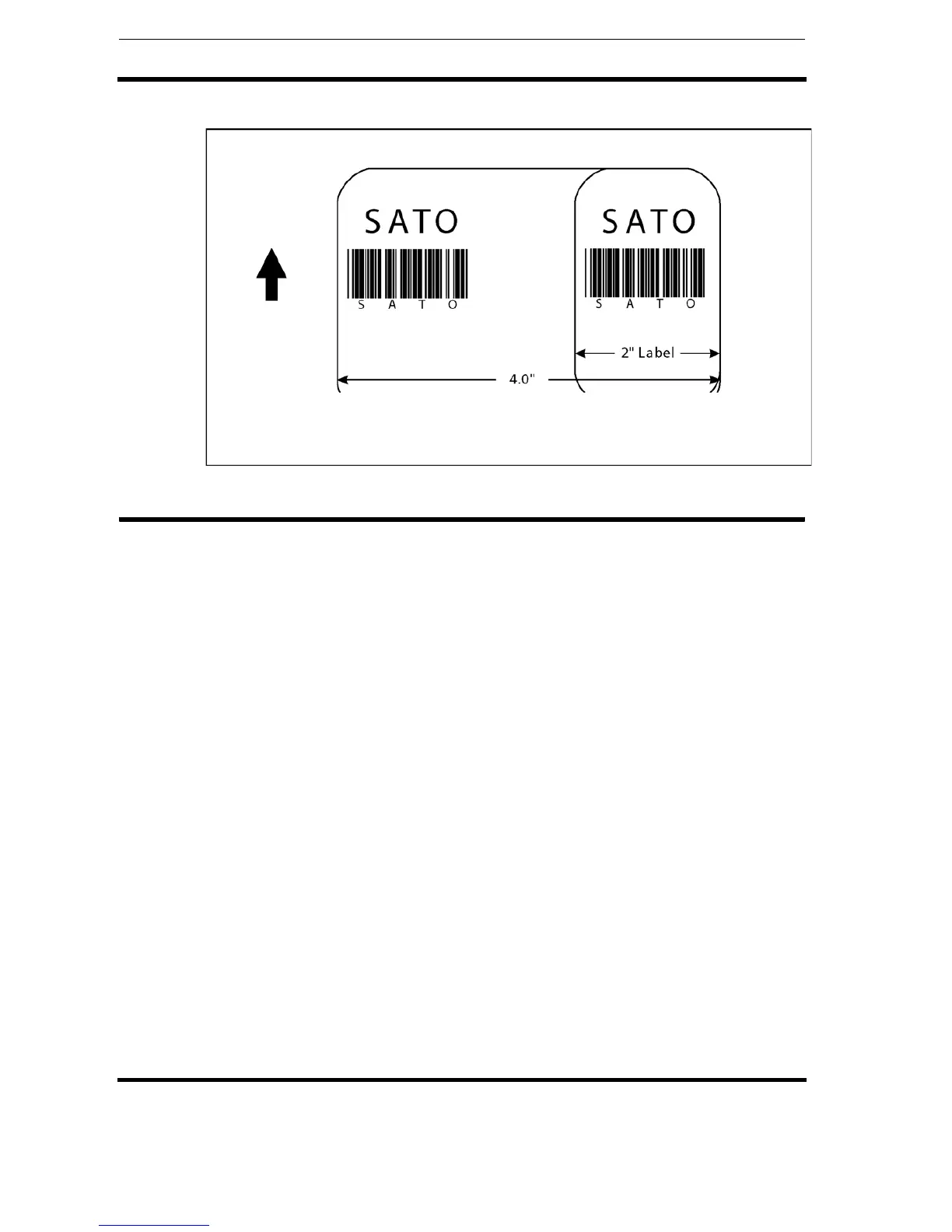

ROTATED FIELDS
The M-8400RVe printer can rotate each print field in 90° increments using the Rotate
command.
• <ESC>% - The field rotates, but the base reference point for the field remains
the same.
The following data stream will rotate the print field but will not change the base
reference point of the field:
<ESC>A<ESC>%1<ESC>V800<ESC>H200<ESC>L0202<ESC>XB1E<ESC>Q1<ESC>Z

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
