APPENDIX C.
CUSTOM CHARACTERS AND GRAPHICS
CUSTOM DESIGNED CHARACTER EXAMPLE
The following example is presented to help understand the use of the Custom
Designed Characters command. It demonstrates the design and printing of an ìarrowî
in a 16 x 16 matrix.
1. Determine which matrix size to use
• 16 dot x 16 dots
• 24 dots by 24 dots

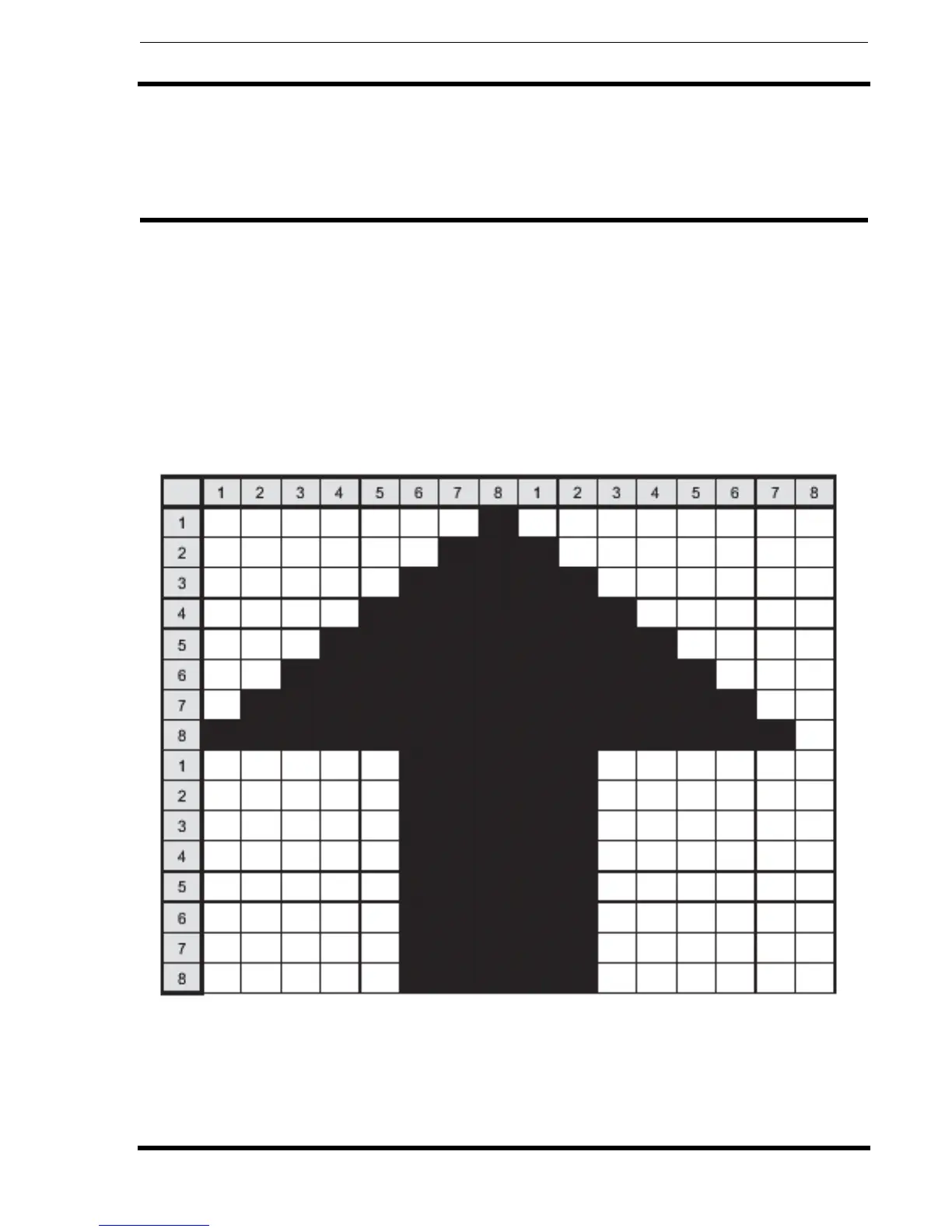

2. Lay out a grid and draw the image on the grid.
• Each square represents one dot
• Blacken squares for each printed dot

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
