SATO E series User Manual

Section 2: Command Codes
SATO Programming Reference PN 9001096 Rev. A Page 2-35
Form Overlay, Recall
Command Structure <ESC>/
Example: See above
Placement: Must be preceded by all other data and placed just before
the Print Quantity command (<ESC>Q)
Default: None
Command Function To recall the label image from the form overlay memory for printing. This
command recalls a stored image from the overlay memory. Additional or
different data can be printed with the recalled image.
Input to Printer <ESC>A
<ESC>H01000<ESC>V0125
<ESC>STHIS IS THE STORED IMAGE WITH A BARCODE
<ESC>H0100<ESC>V0165<ESC>B103100*12345*
<ESC>&<ESC>Z
<ESC>A<ESC>H0100<ESC>V0050
<ESC>STHIS IS RECALLING AND ADDING TO THE STORED
IMAGE<ESC>/
<ESC>Q1<ESC>Z

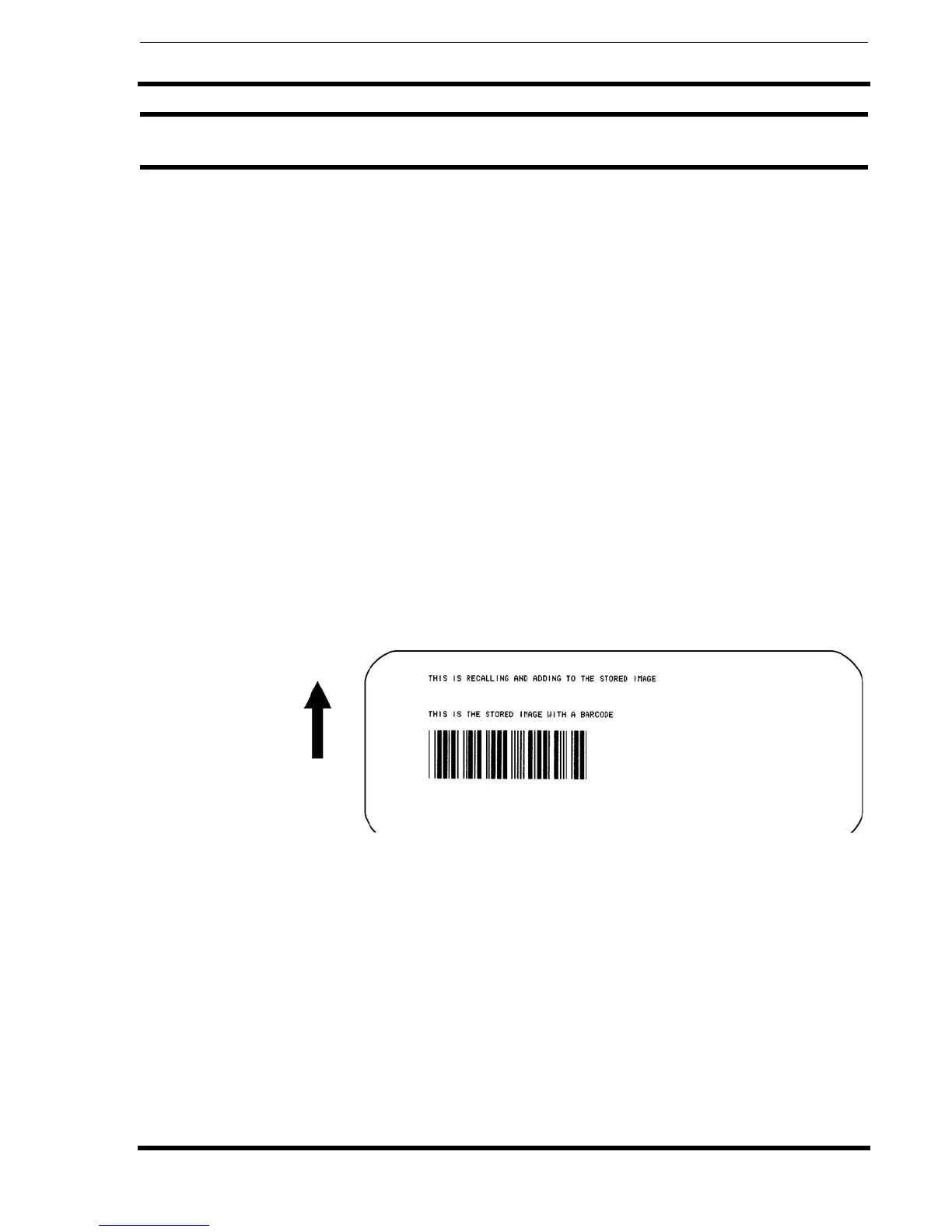

Printer Output
Special Notes 1. The overlay is stored using the <ESC>& Form Overlay Store com-
mand.
2. If the this command is used with the <ESC>EX0 Expanded Print
Length command the Form Overlay length cannot exceed 9999
dots.

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
