SATO E series User Manual

Section 2: Command Codes
Page 2-44 SATO Programming Reference
Lines and Boxes
Command Structure Line: <ESC>FWaabcccc
aa = Width of horizontal line in dots (01-99)
b = Line orientation H Horizontal line V Vertical
Line
cccc = Length of line in dots (see Section 1 Table 1 for
max length)
Box: <ESC>FWaabbVccccHdddd
aa = Width of horizontal side in dots (01-99)
bb = Width of vertical side in dots (01-99)
cccc = Length of vertical side in dots (see Section 1
Table 1 for max length)
dddd = Length of horizontal side in dots (see Section 1
Table 1 for max length)
Example: <ESC>FW02H0200
Placement: Following the necessary positioning commands
Default: None
Command Function To print horizontal lines, vertical lines, and boxes as images on the label.
Input to Printer <ESC>A
<ESC>H0100<ESC>V0100<ESC>FW20H0200
<ESC>H0320<ESC>V0100<ESC>FW20V0200
<ESC>H0350<ESC>V0100<ESC>FW1010H0200V0200
<ESC>Q1<ESC>Z

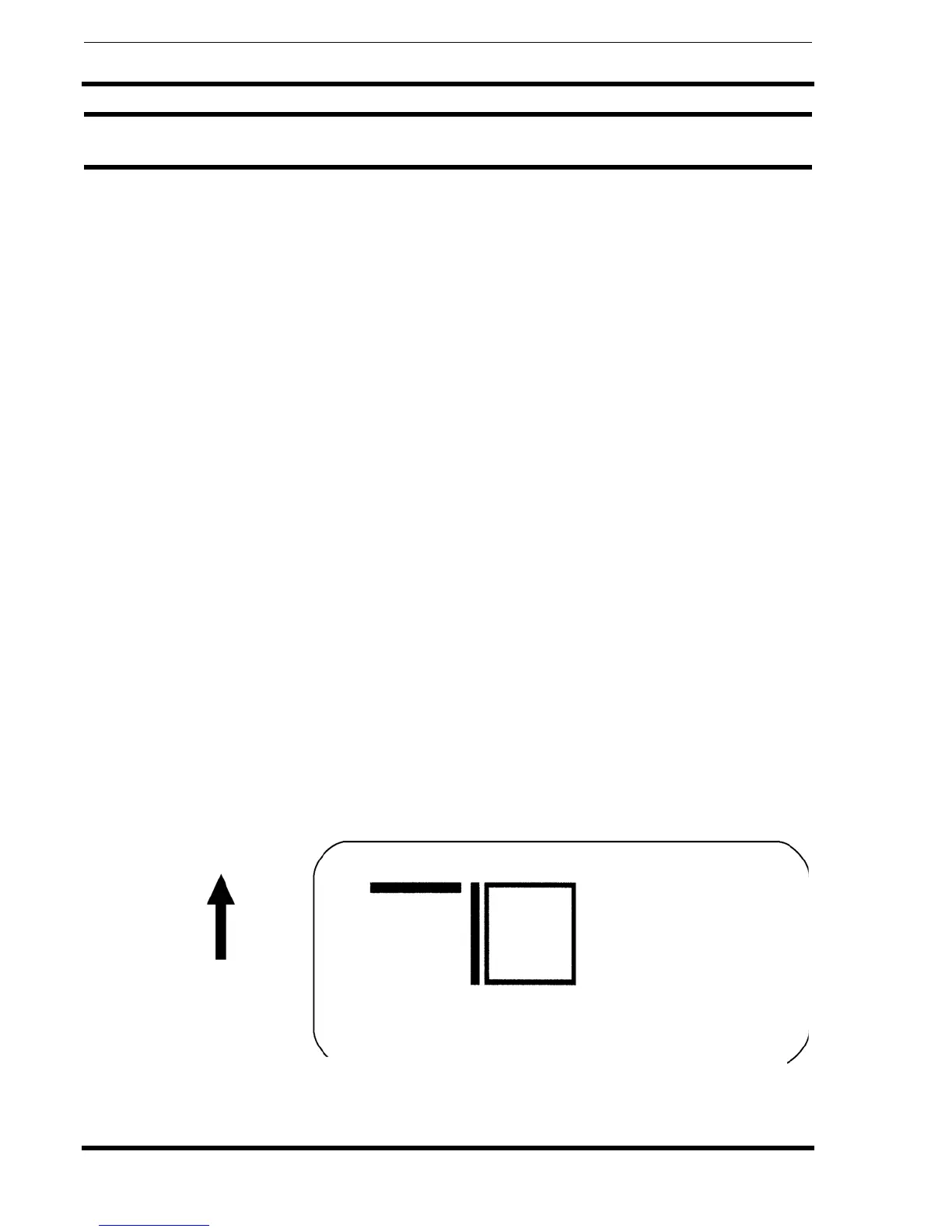

Printer Output

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
