SATO E series User Manual

Appendic B. Bar Code Specifications
Page B-14 SATO Programming Reference

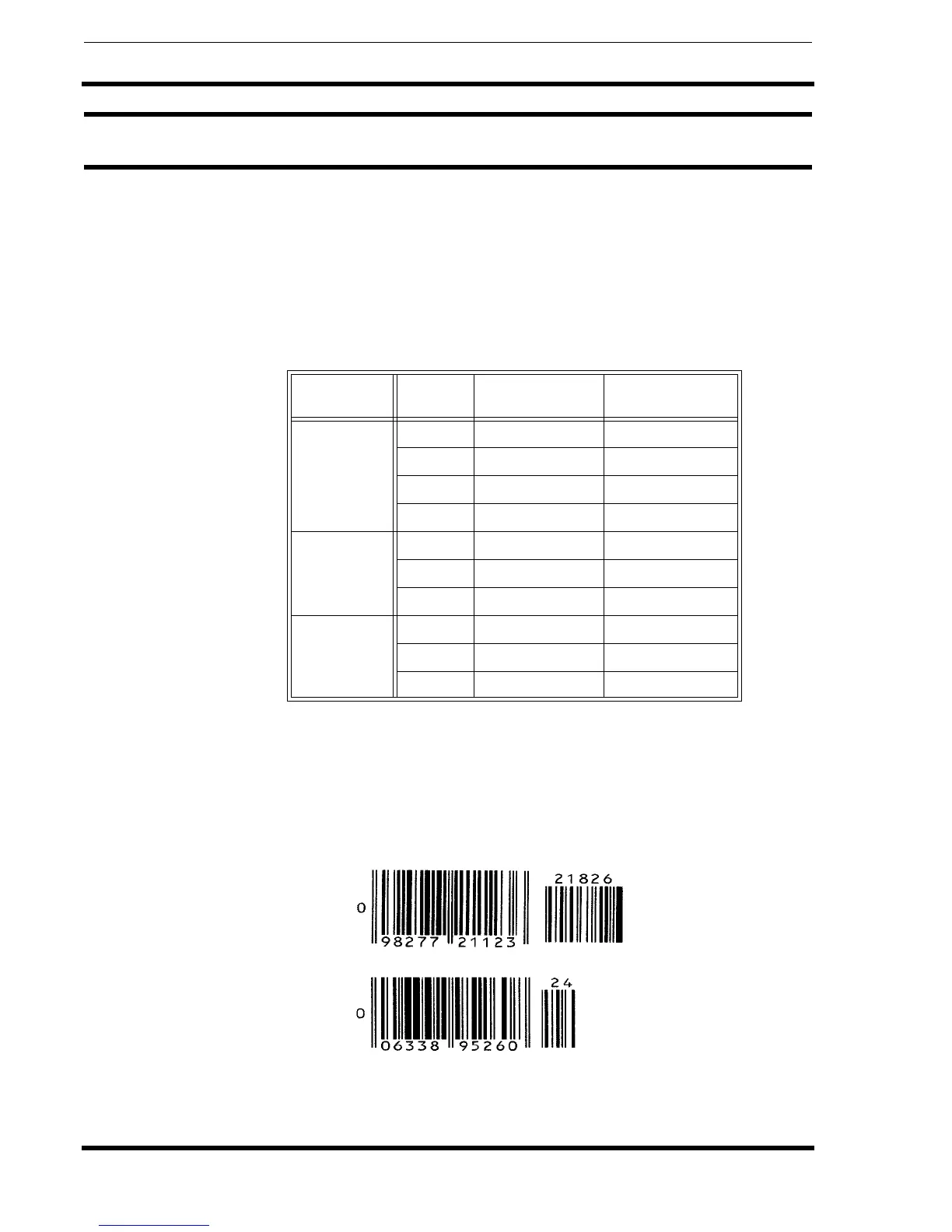

Bookland (UPC/EAN Supplements)
COMMAND STRUCTURE <ESC>BFbbccc (data)
bb
ccc
(data)
=
=
=
Width of narrow element in dots (01-03)
Bar height in dots (001-999)
Bar code data (numeric); must be exactly 2 or 5 digits
CHARACTER SET 0-9 (numeric only)
DENSITY TABLE
EXAMPLE <ESC>H0325<ESC>V0725<ESC>D30315009827721123
<ESC>L0101<ESC>H0295<ESC>V0800<ESC>OB0
<ESC>H0340<ESC>V0878<ESC>OB98277
<ESC>H 0480<ESC>V0878<ESC>OB21123
<ESC>H640<ESC>V0760<ESC>BF0313021826
<ESC>H655<ESC>V0730<ESC>OB21826
Printer
Resolution
Value of
“bb”
Narrow Bar
Width (mils)
Magnification
Factor
600 dpi
05 8.3 Below Minimum
06 10 75%
07 11.8 87.5%
08 13.3 100%
300 dpi
02 6.7 Below Minimum
03 10.0 75%
04 13.3 100%
200 dpi
02 10.0 75%
03 15.0 112%
04 20.0 150%

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
