SATO E series User Manual

Section 2: Command Codes
SATO Programming Reference PN 9001096 Rev. A Page 2-33

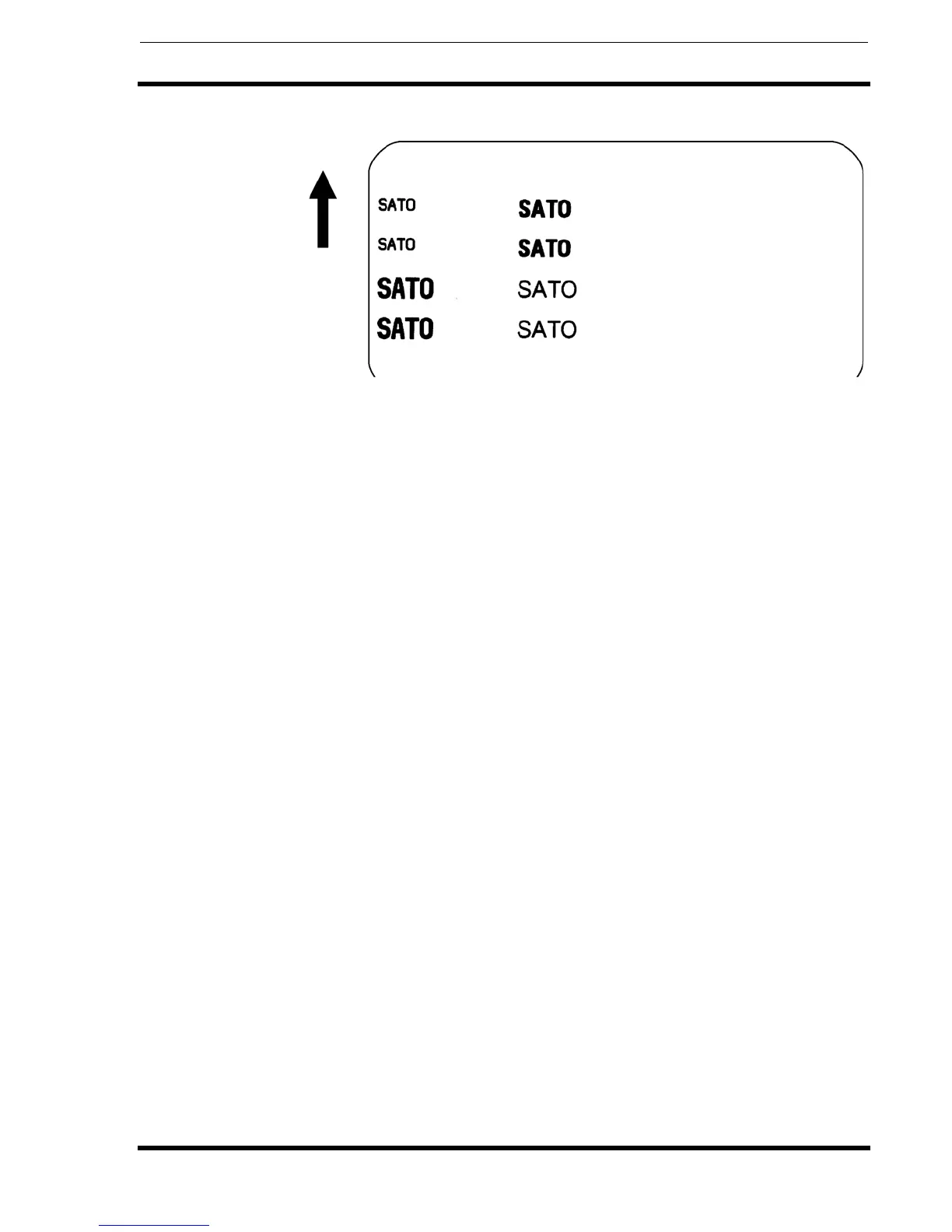

Printer Output
Special Notes 1. Auto-smoothing (when enabled) is only effective if the character expan-
sion rate is at least (3) times in each direction.
2. Characters may be enlarged through the use of the <ESC>L Character
Expansion command.
3. Character spacing may be altered through the use of the <ESC>A Char-
acter Pitch command.
4. A font must be defined for each field to be printed. There is no default
font.
5. The proportionally spaced fonts XU, XS, XM, XL and XB can be printed
with fixed spacing using the <ESC>PS Proportional Space command.

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
