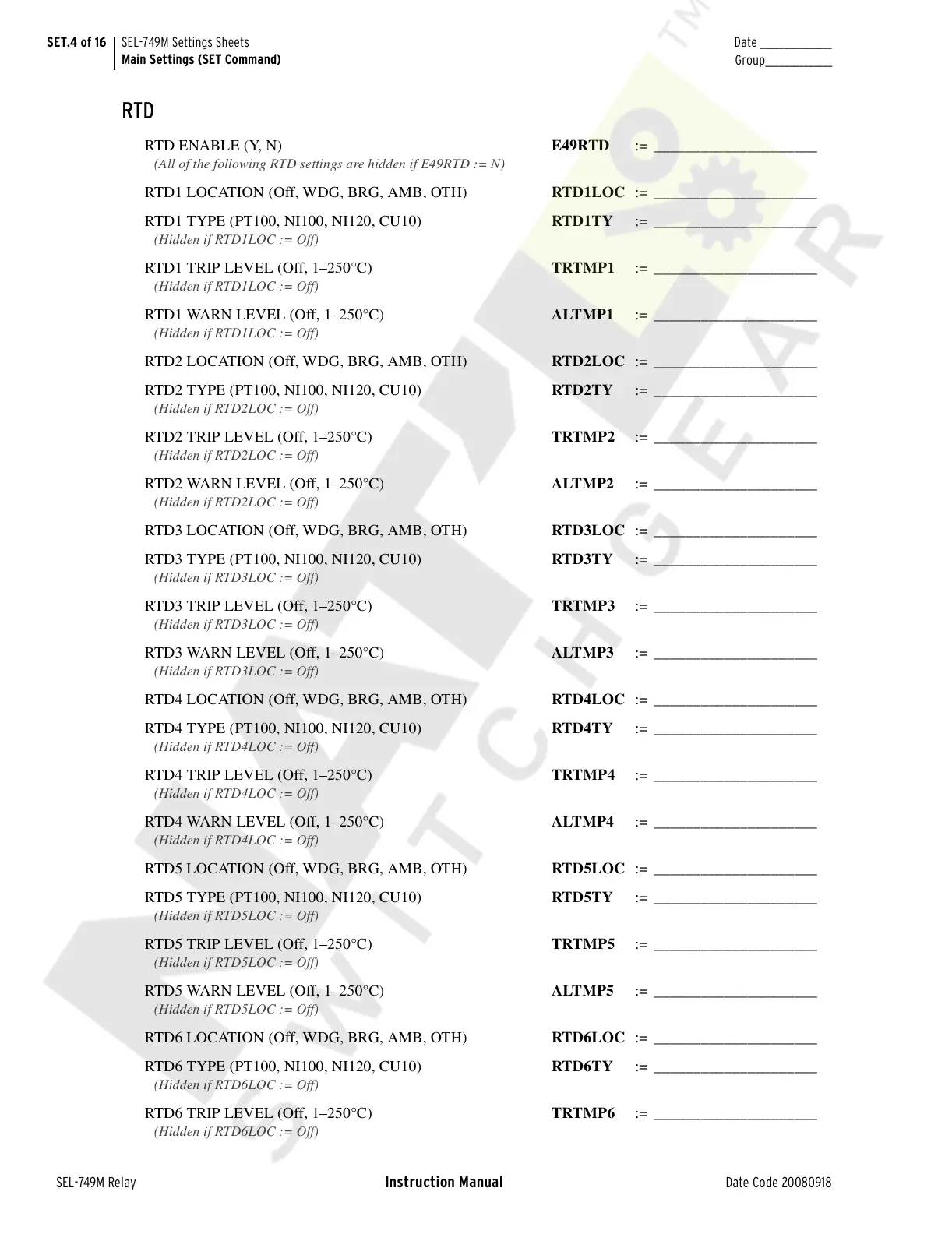

SET.4 of 16 SEL-749M Settings Sheets
Main Settings (SET Command)
SEL-749M Relay Instruction Manual Date Code 20080918
Date _______________
Group______________
RTD
RTD ENABLE (Y, N)
(All of the following RTD settings are hidden if E49RTD := N)
E49RTD := _____________________
RTD1 LOCATION (Off, WDG, BRG, AMB, OTH) RTD1LOC := _____________________
RTD1 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD1LOC := Off)
RTD1TY := _____________________
RTD1 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD1LOC := Off)
TRTMP1 := _____________________
RTD1 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD1LOC := Off)
ALTMP1 := _____________________
RTD2 LOCATION (Off, WDG, BRG, AMB, OTH) RTD2LOC := _____________________
RTD2 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD2LOC := Off)
RTD2TY := _____________________
RTD2 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD2LOC := Off)
TRTMP2 := _____________________
RTD2 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD2LOC := Off)
ALTMP2 := _____________________
RTD3 LOCATION (Off, WDG, BRG, AMB, OTH) RTD3LOC := _____________________
RTD3 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD3LOC := Off)
RTD3TY := _____________________
RTD3 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD3LOC := Off)
TRTMP3 := _____________________
RTD3 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD3LOC := Off)
ALTMP3 := _____________________
RTD4 LOCATION (Off, WDG, BRG, AMB, OTH) RTD4LOC := _____________________
RTD4 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD4LOC := Off)
RTD4TY := _____________________
RTD4 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD4LOC := Off)
TRTMP4 := _____________________
RTD4 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD4LOC := Off)
ALTMP4 := _____________________
RTD5 LOCATION (Off, WDG, BRG, AMB, OTH) RTD5LOC := _____________________
RTD5 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD5LOC := Off)
RTD5TY := _____________________
RTD5 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD5LOC := Off)
TRTMP5 := _____________________
RTD5 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD5LOC := Off)
ALTMP5 := _____________________
RTD6 LOCATION (Off, WDG, BRG, AMB, OTH) RTD6LOC := _____________________
RTD6 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD6LOC := Off)
RTD6TY := _____________________
RTD6 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD6LOC := Off)
TRTMP6 := _____________________
