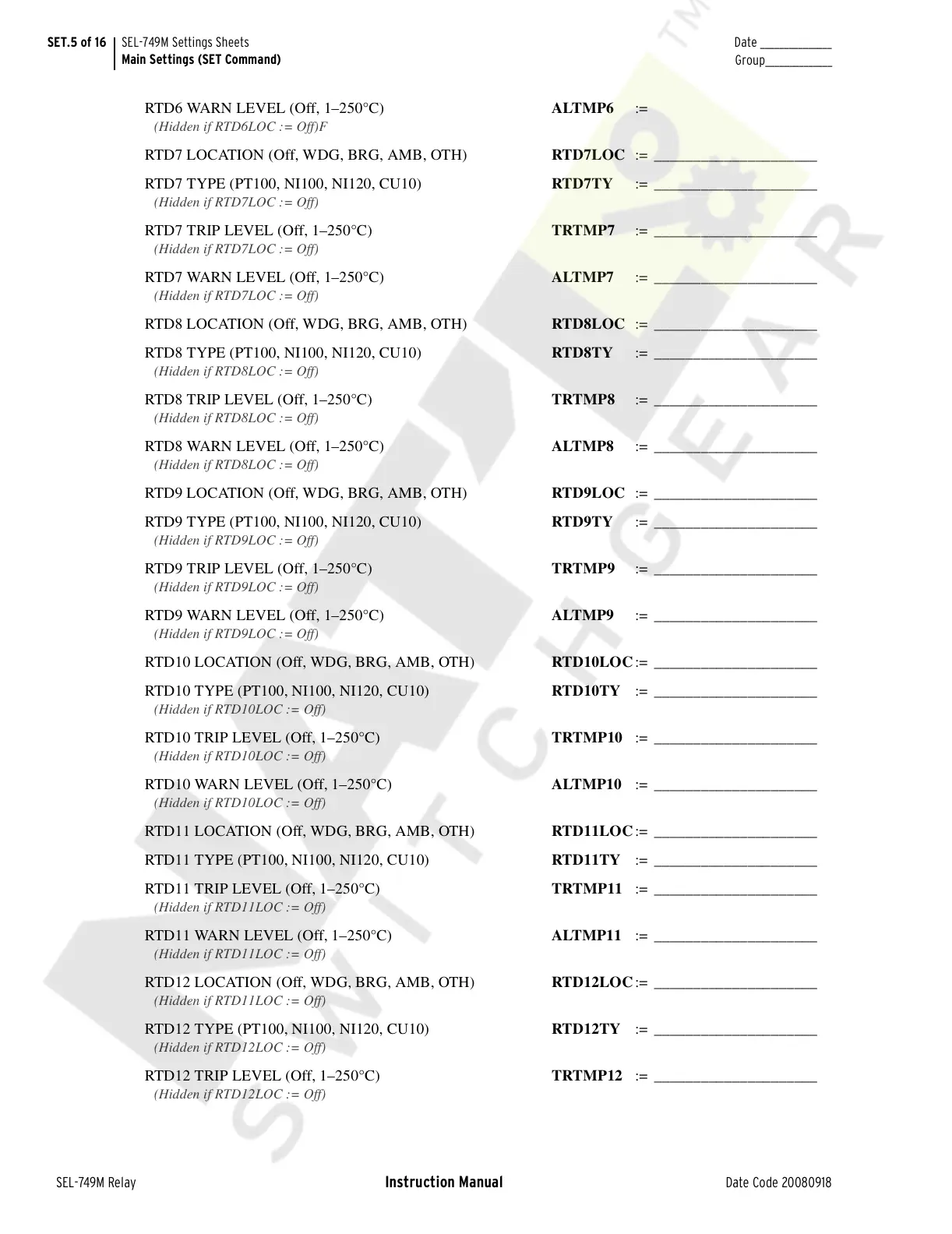

SET.5 of 16 SEL-749M Settings Sheets
Main Settings (SET Command)
SEL-749M Relay Instruction Manual Date Code 20080918
Date _______________
Group______________
RTD6 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD6LOC := Off)F
ALTMP6 :=
RTD7 LOCATION (Off, WDG, BRG, AMB, OTH) RTD7LOC := _____________________
RTD7 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD7LOC := Off)
RTD7TY := _____________________
RTD7 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD7LOC := Off)
TRTMP7 := _____________________
RTD7 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD7LOC := Off)
ALTMP7 := _____________________
RTD8 LOCATION (Off, WDG, BRG, AMB, OTH) RTD8LOC := _____________________
RTD8 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD8LOC := Off)
RTD8TY := _____________________
RTD8 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD8LOC := Off)
TRTMP8 := _____________________
RTD8 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD8LOC := Off)
ALTMP8 := _____________________
RTD9 LOCATION (Off, WDG, BRG, AMB, OTH) RTD9LOC := _____________________
RTD9 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD9LOC := Off)
RTD9TY := _____________________
RTD9 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD9LOC := Off)
TRTMP9 := _____________________
RTD9 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD9LOC := Off)
ALTMP9 := _____________________
RTD10 LOCATION (Off, WDG, BRG, AMB, OTH) RTD10LOC := _____________________
RTD10 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD10LOC := Off)
RTD10TY := _____________________
RTD10 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD10LOC := Off)
TRTMP10 := _____________________
RTD10 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD10LOC := Off)
ALTMP10 := _____________________
RTD11 LOCATION (Off, WDG, BRG, AMB, OTH) RTD11LOC := _____________________
RTD11 TYPE (PT100, NI100, NI120, CU10) RTD11TY := _____________________
RTD11 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD11LOC := Off)
TRTMP11 := _____________________
RTD11 WARN LEVEL (Off, 1–250°C)
(Hidden if RTD11LOC := Off)
ALTMP11 := _____________________
RTD12 LOCATION (Off, WDG, BRG, AMB, OTH)
(Hidden if RTD11LOC := Off)
RTD12LOC := _____________________
RTD12 TYPE (PT100, NI100, NI120, CU10)
(Hidden if RTD12LOC := Off)
RTD12TY := _____________________
RTD12 TRIP LEVEL (Off, 1–250°C)
(Hidden if RTD12LOC := Off)
TRTMP12 := _____________________
