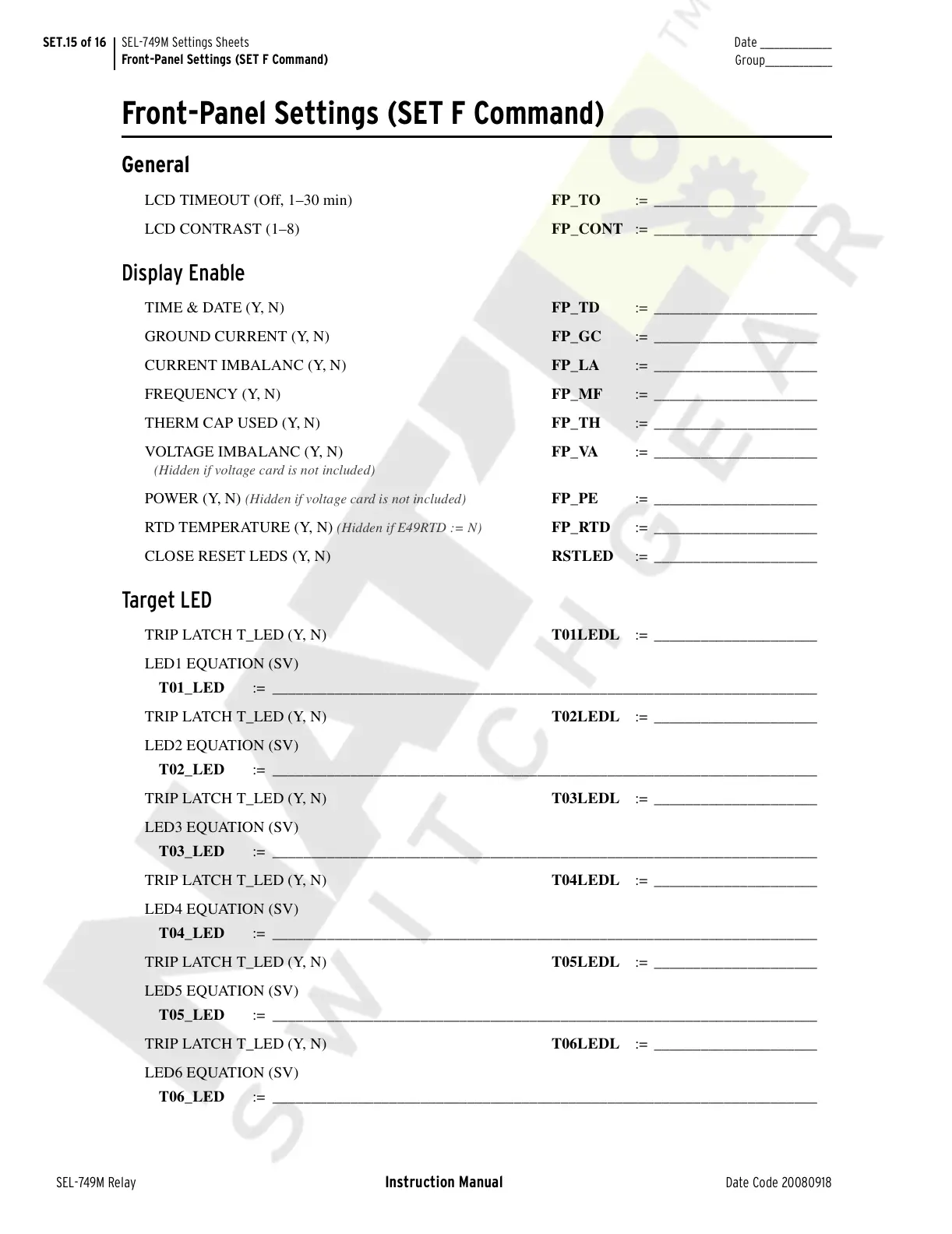

SET.15 of 16 SEL-749M Settings Sheets
Front-Panel Settings (SET F Command)
SEL-749M Relay Instruction Manual Date Code 20080918
Date _______________
Group______________
Front-Panel Settings (SET F Command)
General
LCD TIMEOUT (Off, 1–30 min) FP_TO := _____________________
LCD CONTRAST (1–8) FP_CONT := _____________________
Display Enable
TIME & DATE (Y, N) FP_TD := _____________________
GROUND CURRENT (Y, N) FP_GC := _____________________
CURRENT IMBALANC (Y, N) FP_LA := _____________________
FREQUENCY (Y, N) FP_MF := _____________________
THERM CAP USED (Y, N) FP_TH := _____________________
VOLTAGE IMBALANC (Y, N)
(Hidden if voltage card is not included)
FP_VA := _____________________
POWER (Y, N)
(Hidden if voltage card is not included) FP_PE := _____________________
RTD TEMPERATURE (Y, N)
(Hidden if E49RTD := N) FP_RTD := _____________________
CLOSE RESET LEDS (Y, N) RSTLED := _____________________
Target LED
TRIP LATCH T_LED (Y, N) T01LEDL := _____________________
LED1 EQUATION (SV)
T01_LED := ______________________________________________________________________
TRIP LATCH T_LED (Y, N) T02LEDL := _____________________
LED2 EQUATION (SV)
T02_LED := ______________________________________________________________________
TRIP LATCH T_LED (Y, N) T03LEDL := _____________________
LED3 EQUATION (SV)
T03_LED := ______________________________________________________________________
TRIP LATCH T_LED (Y, N) T04LEDL := _____________________
LED4 EQUATION (SV)
T04_LED := ______________________________________________________________________
TRIP LATCH T_LED (Y, N) T05LEDL := _____________________
LED5 EQUATION (SV)
T05_LED := ______________________________________________________________________
TRIP LATCH T_LED (Y, N) T06LEDL := _____________________
LED6 EQUATION (SV)
T06_LED := ______________________________________________________________________
