Shimadzu LC-40D XR CL User Manual

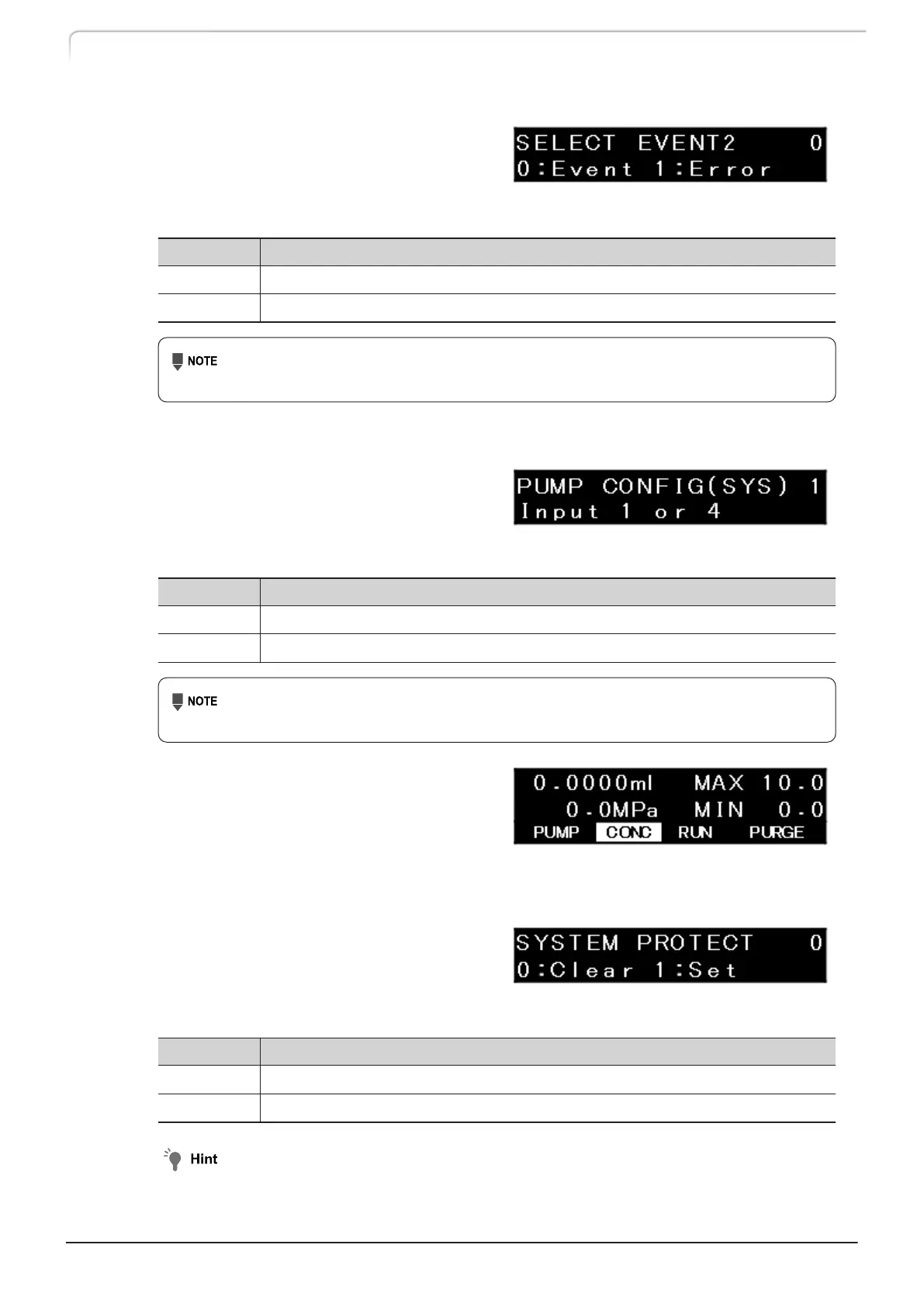

Set the mode of controlling external
equipment via the [EVENT2] output (relay
2).
Set Value Function
0 The relay contact is controlled with the [EVENT2] set value.
1 The relay contact 2 [EVENT2] is used as an error output signal.
If the SELECT EVENT2 function is used, the corresponding EVENT parameter is
disabled.
n Setting the system parameter《PUMP CONFIG (SYS)》
Input values according to the status of the
system used.
Set Value Function
1 The instrument is controlled independently or with external equipment
4 The instrument is used as a low-pressure gradient system
The system functions normally only with the above values. Values other than the
above cannot be set.
Setting the set value to "4" (low-pressure
gradient system) highlights [CONC] on the
display allowing the user to set a
concentration.
n Setting the system protection《SYSTEM PROTECT》
When [P.MAX] is active, the flow rate is
reduced in increments of a half rate while
delivery is continued until the pressure
falls below [P.MAX].
Set Value Function
0 Do not use system protection.
1 Use system protection.
To clear a [P.MAX] error, press [CE]. The alarm stops and the flow rate returns to that
before the error.
