Shimadzu LC-40D XR CL User Manual

If the parts management tool (PARTS MGMT TOOL) is not used, press [del] after replacing
the seal. The total delivery amount is reset to "0" and the reset date is recorded in the
maintenance log.
• The plunger seal on the right when viewed from the front is shown as "R".
• When PARTS MGMT TOOL is active, the delivery amount cannot be reset on the operation
panel. Reset it from PARTS MGMT TOOL. For the operation procedure, refer to the PARTS
MGMT TOOL instruction manual.

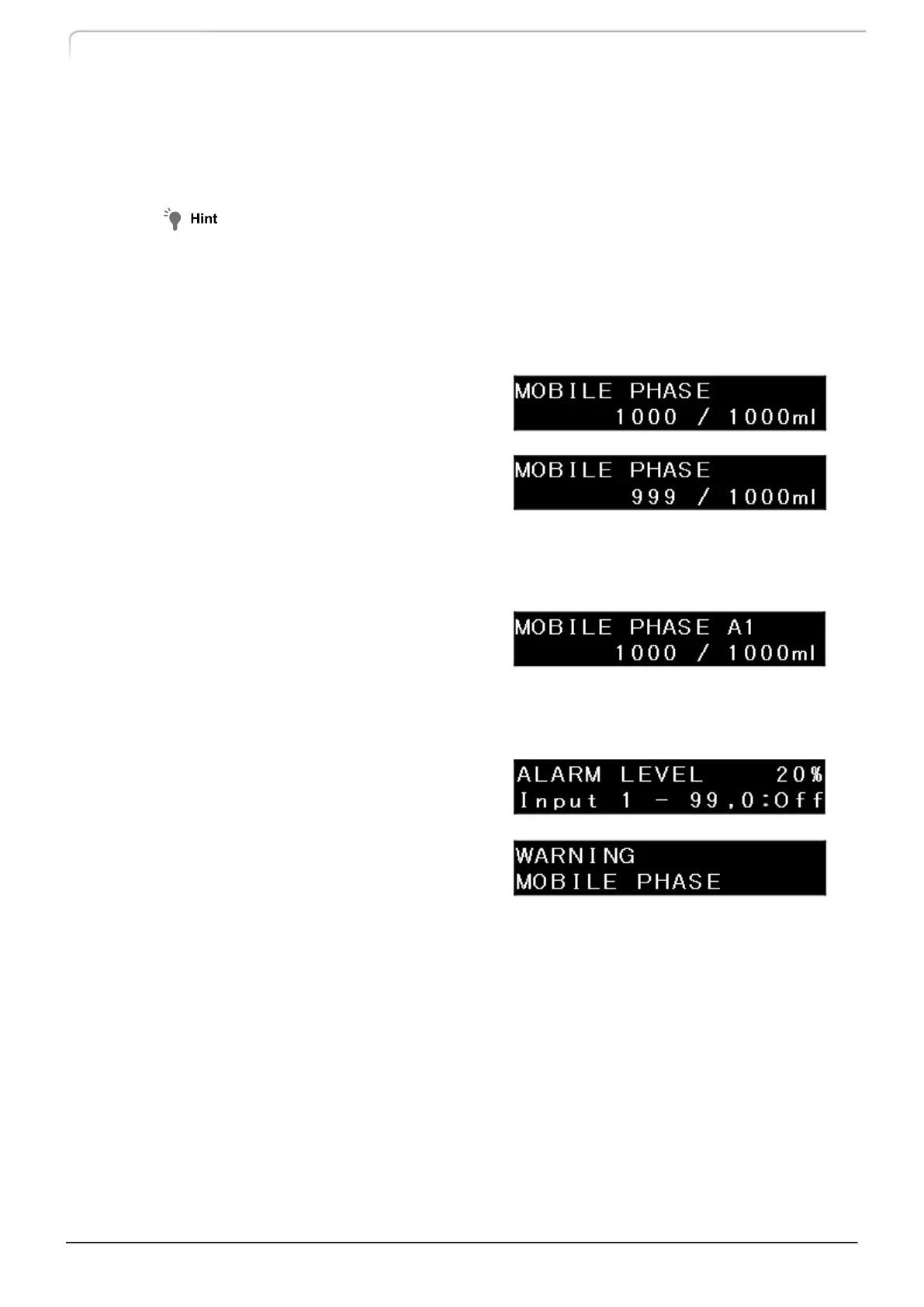

n Displaying and setting the remaining amount of mobile phase《MOBILE PHASE》
The screen displays the remaining amount
and set amount of the current mobile
phase.
When replacing the mobile phase, input
the set amount of the mobile phase in the
unit of mL and press [Enter].
The remaining amount is automatically
calculated when solvent is delivered.
Normally only one solvent is supported. In the low-pressure gradient mode, four solvents
(A to D) are supported.
A1, A2, B1, B2 etc. are shown if the
low-pressure gradient kit and external
mobile phase switching valve are used
together.
n Setting a threshold to cause an alarm of low mobile phase level《ALARM LEVEL》
The warning screen is displayed when the
mobile phase level has fallen to the set
percentage. Note that delivery continues.
Input the set value with the numeric
keypad and press [Enter]. Setting the value
to 0 % disables the low mobile phase level
alarm.
50
LC-40D X3 CL LC-40D XR CL
3 Operation
