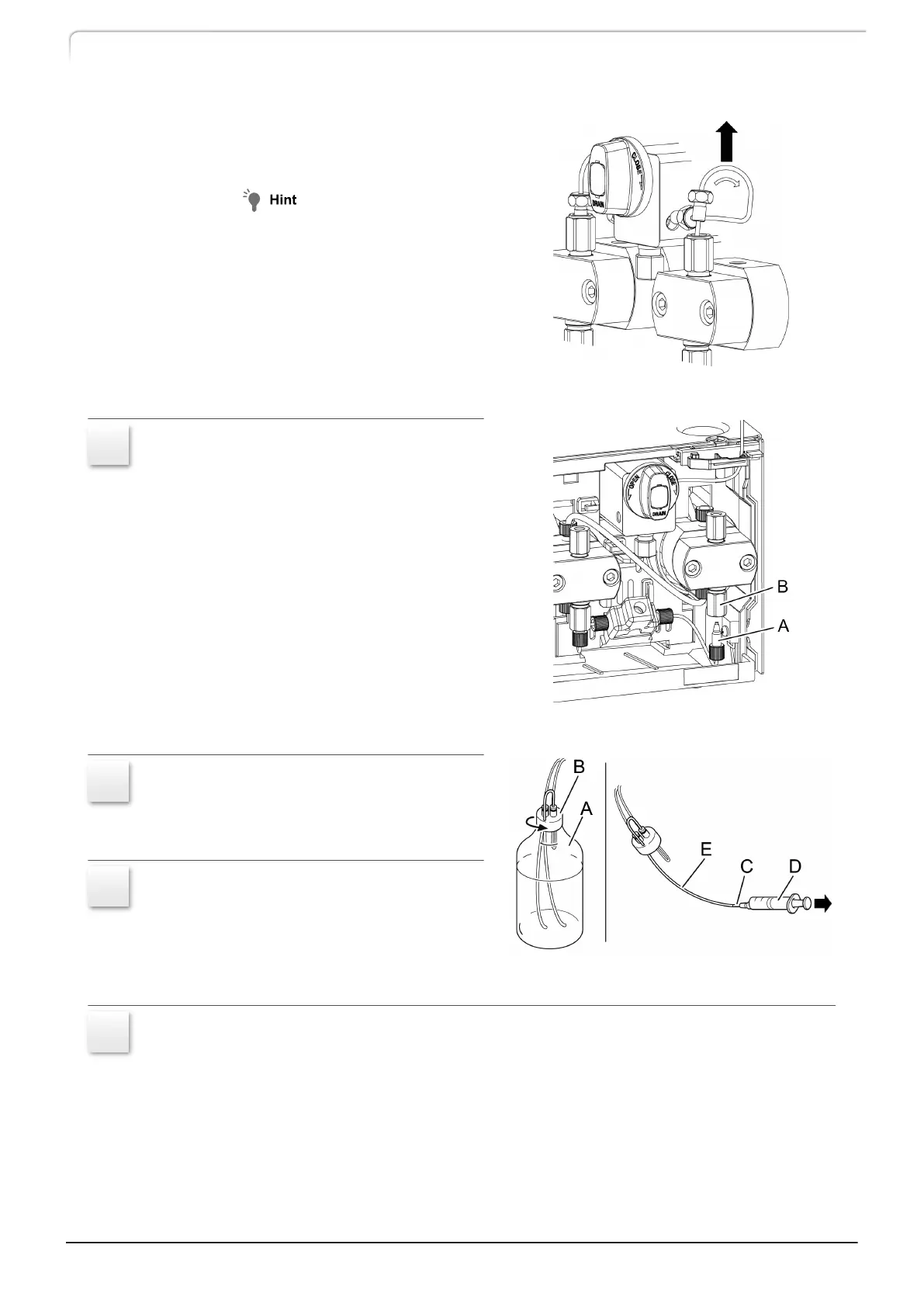

4 Slightly lean backwards the SUS
pipe R to pull it out upward.
Though the orientation is
opposite to the right one
(SUS pipe R), remove the
left tube (SUS pipe L) in
the same procedure.
8
Loosen the male nut PEEK (A) of the
inlet tube by hand and remove it from
the check valve IN (B).
9
If the seal rinsing kit is attached,
remove the cap (B) of the seal rinsing
kit from the rinse solution bottle (A).
10
Attach the syringe needle (C) to the
end of the outlet FEP tubing (E)
(upward U-shape), and use the syringe
(D) to suction out the rinse fluid from
the rinse flow line.
11
Place the removed cap (B) and rinse solution bottle on the reservoir tray on the
top of the instrument.
