12

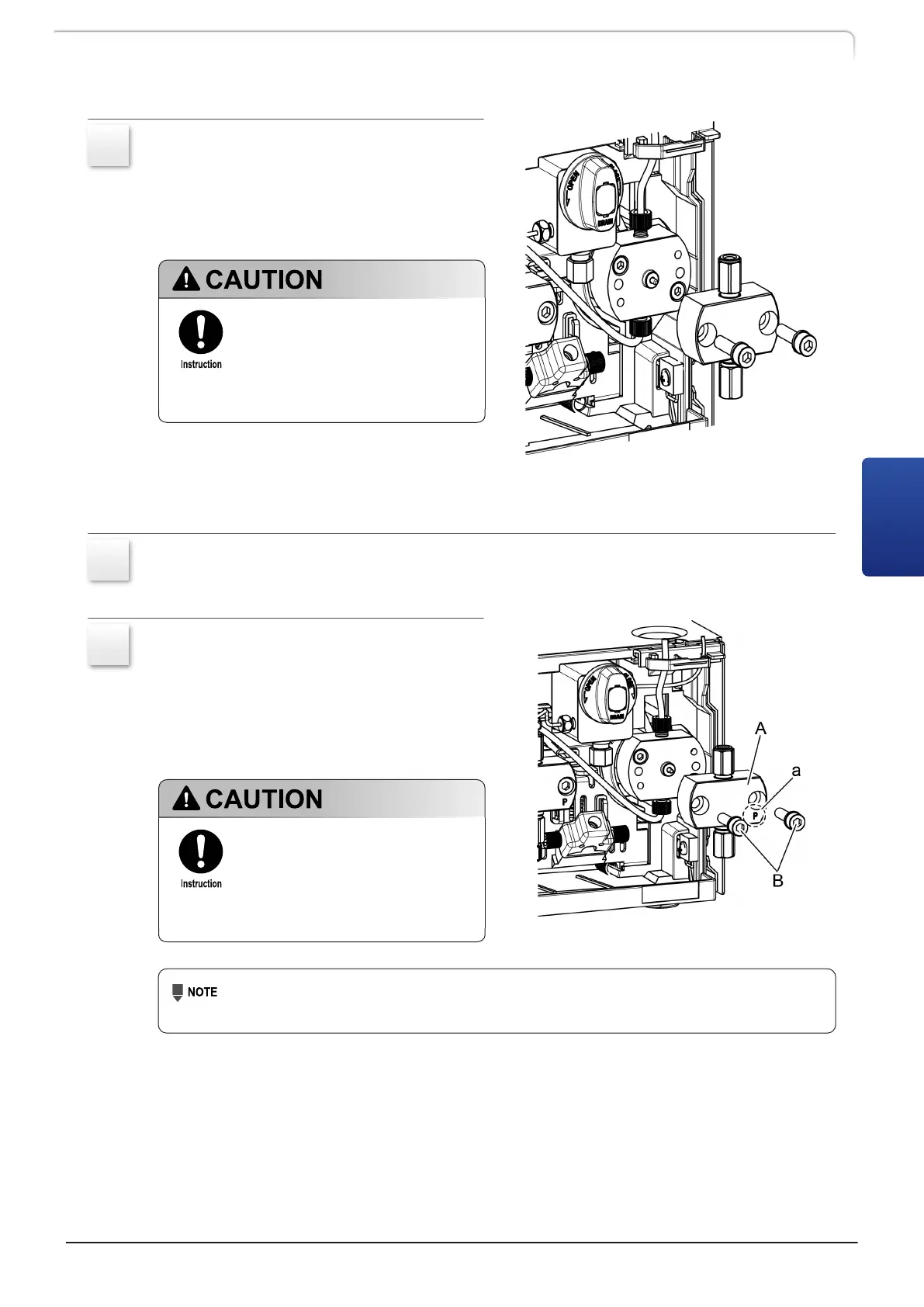

Gradually loosen the 2 hexagonal
socket screws using an Allen wrench
(M5) by alternating between the left
and right screw, and remove the pump
head.
Gently pull the pump head
horizontally along the plunger.
The plunger may be damaged
if the pump head is forcefully
removed.
n
Installing the pump head
1
Set
the plunger position by following steps 2 to 6 in "Removing the pump head"
P.85.
2
Hold the pump head with the mark (a)
coming at the bottom right, tighten
the 2 hexagonal socket screws (B) with
an Allen wrench (M5) by tightening
the right and left screws alternately,
and attach the pump head (A).
Gently inset the pump head
horizontally along the plunger.
The plunger may be damaged
if the pump head is forcefully
inserted.
Tighten the left and right hexagonal socket screws 90 degrees at a time, and
then firmly tighten using the long side of the Allen wrench.
LC-40D X3 CL LC-40D XR CL
89
4.3 Removing/Installing the Pump Heads
