Chapter 3 Descriptions of Each Part
Mobile DaRt Operation Manual
3-18
DO NOT PULL THE IMAGING UNIT’S CABLE!
Also, do not retract the imaging unit when the unit’s cable is caught on another
item. This can result in cable damage, fire or an electric shock, damage the unit
or cause an accident.
DO NOT OVERLOAD THE IMAGING UNIT WITH HEAVY OBJECTS!
This can damage or break the imaging unit’s sensor.
Load limits:
Uniform Load: 150kg/Entire imaging surface load: 100kg/Φ40mm
Section Load: 100kg/Φ40mm
Be sure to use the imaging unit on a level floor or stand.
If force is applied with the imaging unit at an angle, the imaging unit’s internal
sensor can be damaged or broken.
When handling the imaging unit, be careful not to run over the imaging unit’s
cable with the X-ray device’s wheels, catch or cut the cable in the device’s front
bumper. (See Fig. 3.13)
Doing so can damage the cable, cause a fire or electric shock, and damage the
device.

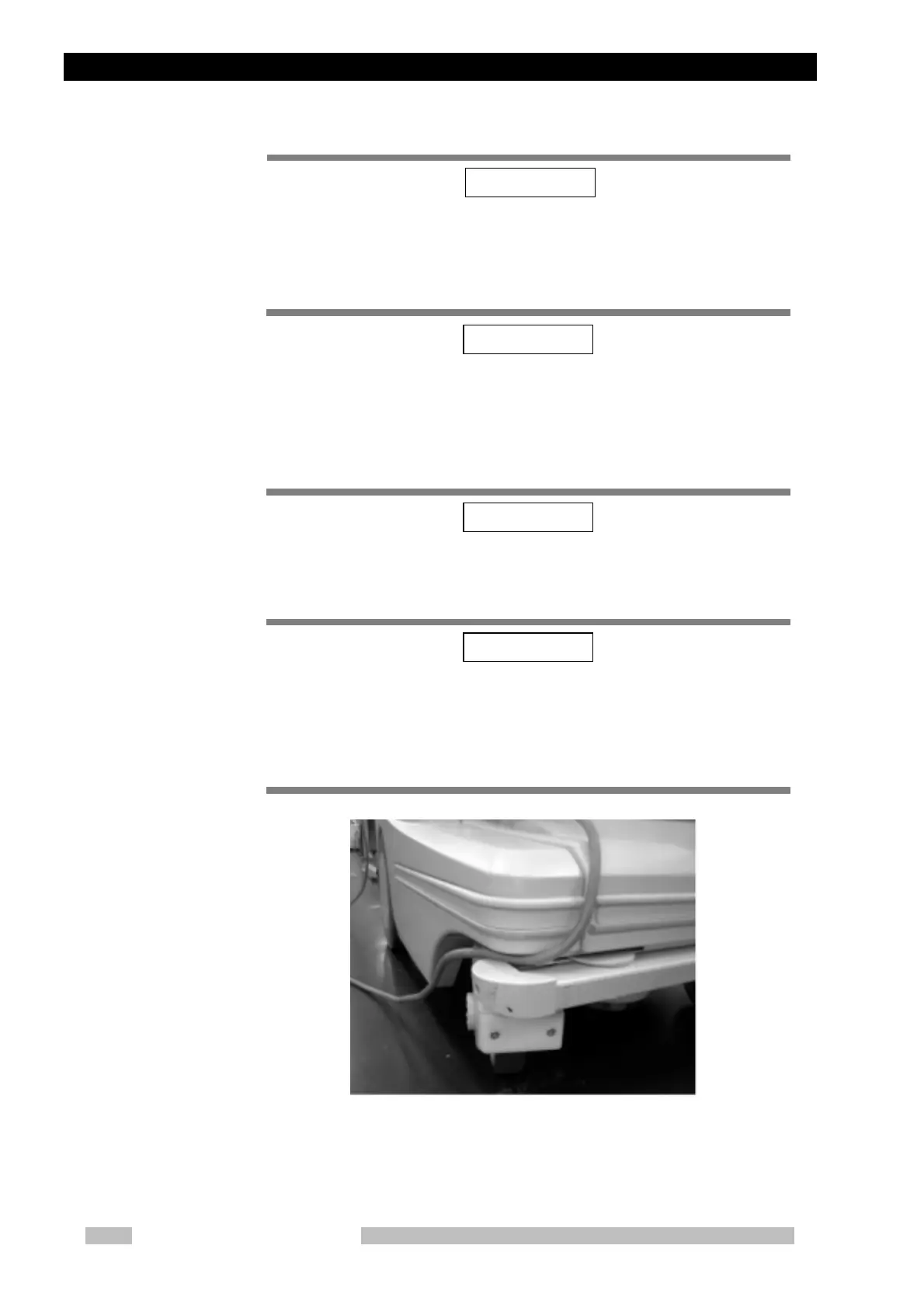

Fig. 3-13 Imaging unit (Cable is caught)
To Next Page
