Chapter 3 Descriptions of Each Part
Mobile DaRt Operation Manual
3-6
3.3 Power Supply Panel

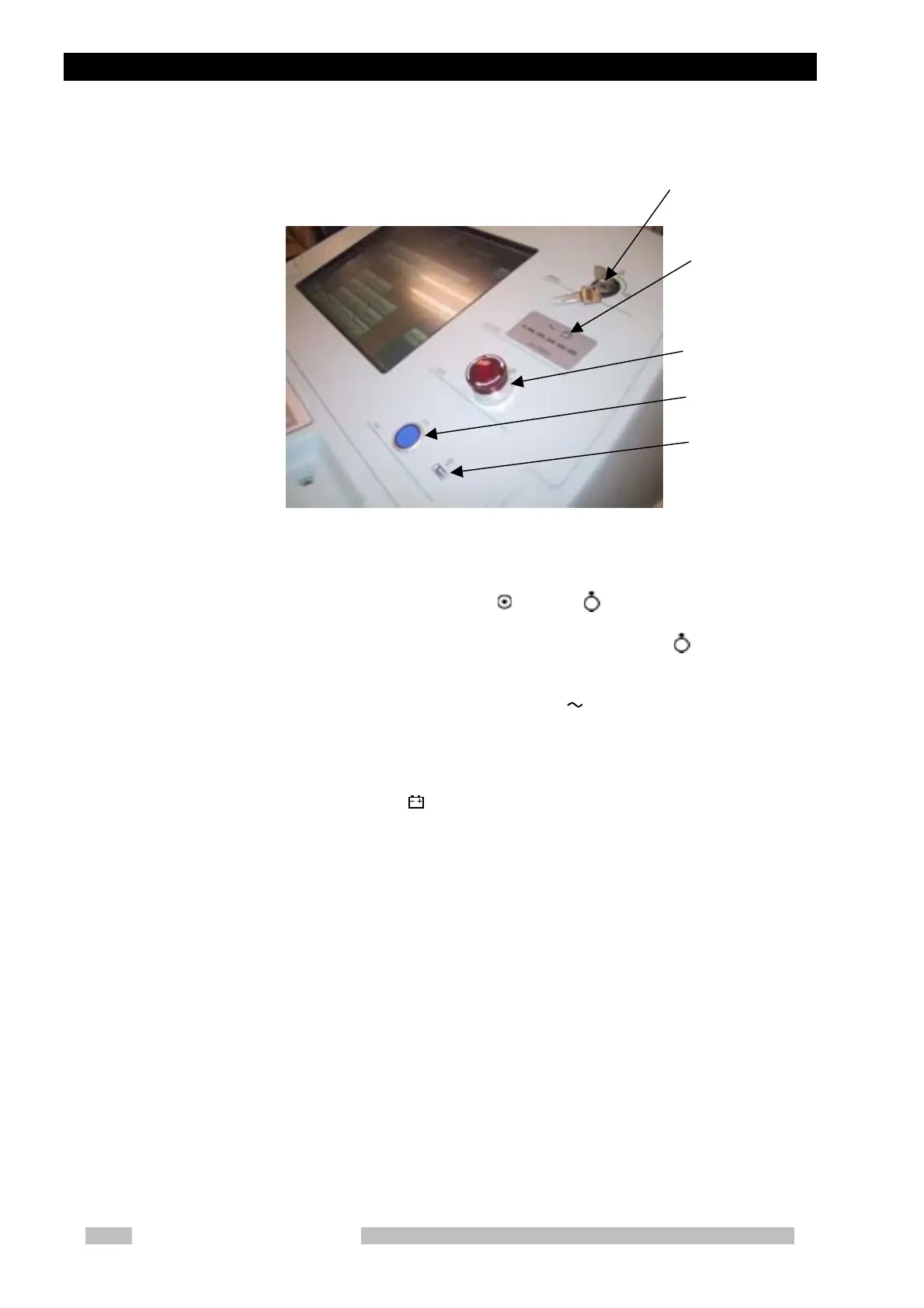

Fig. 3-3 Power supply panel
① Key switch
This switch turns power “ON”
or “OFF” for systems with key
operation.
The key can be removed only at the power “Off” position .
② Power line connection indicator lamp
This lamp illuminates when the equipment is connected to the main power
outlet and power is supplied to the system from the outlet.
③ Charging lamp
This lamp illuminates while the battery is being charged. It turns off when
the charging is complete.
④ Battery indicator
This indicator normally indicates the amount of energy remaining in the
battery.
It indicates charging state while the battery is being charged.
⑤ Emergency stop switch
The switch is used to disconnect the equipment in any emergency situation.
For details, refer to “4.3 Emergency Stop Switch”.
⑥ DR switch
The switch is used to start DR system.
For DR system usage information, refer to the Canon’s CXDI Manual.
⑤
②, ③, ④
①
⑥
⑦
To Next Page
