EtherNet/IP Gateway
After resetting the UE410-EN back to the factory settings, all modules are displayed as
“Unknown Module” until a hardware reset of the entire Flexi Classic system has been
carried out (see section “Resetting to factory settings” below).

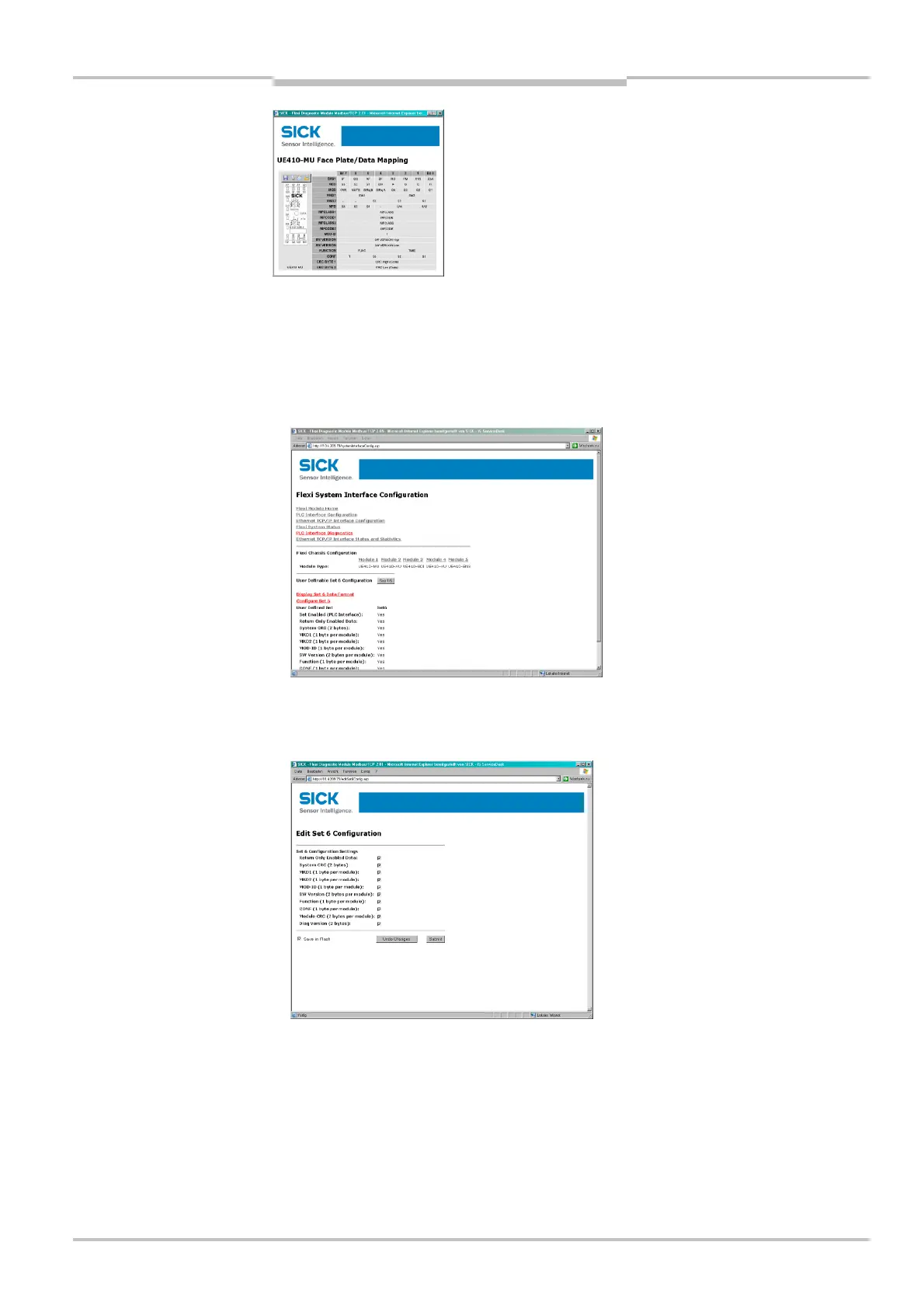

In order to use Data set 6, click Set 6. The following web page is displayed and shows
the current compilation of Data set 6:
Click Configure Set 6, to compile the user defined data record. The following web page
is displayed:
Select the desired data. For the exact description of the data sets please refer to
section 7.8.
In the standard setting, all parameters are sent to the higher level PLC when Data set 6 is
active.
If only specific parameters are to be sent:
Select Return Only Enabled Data and click the desired parameters in the list.
Note
To Next Page
